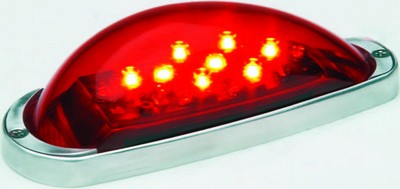

Whelen Model 90350 Series Self-Contained LED Ground Recognition Light Assembly

$520.00/Each
Quantity
Add to Wishlist
Part# 11-06172
MFR Model# 01-0790350-00

Overview

MODEL 90350 SERIES
SELF-CONTAINED LED GROUND RECOGNITION LIGHT ASSEMBLY
Model 90350 Series is a self-contained all LED Ground Recognition light assembly. The design is intended to provide a solution to the needs for ground recognition lighting on a wide variety of aircraft. All current source and flasher circuitry is contained within the base plate. Unit is flush mounted to aircraft surface eliminating the need for large cutouts in the aircraft structure. Item ships with flying leads.

Specifications

  • Power Consumption: 0.28 Amps Avg. @ 28 VDC
  • LED Colors: Aviation Red
  • Lens: Aviation Red, Polycarbonate
  • Weight: 0.2 Lbs (91gm)
  • Exposed Height: 1.48" (38mm)
  • Exposed Width: 1.64" (42mm)
  • Exposed Length: 4.61" (117mm)

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this light FAA Approved for certified aircraft? Thanks

Part # 11-06172 is not FAA Approved for certified aircraft.

Q: Is there a 12volt dc version of this light assembly or can this model be operated on 12 volts as well?

No, this unit is only available in 24V.

Q: What is the flash rate per minute and brightness rating? Is it a STROBE type flash pulse or just On/Off? Type of flash pattern? (single, double, triple etc.)

The flash rate is an ON/Off style and is a single flash pattern, the flash rate is 45 Flashes per minute.
