Whelen 90613 Series LED Wingtip Anti-Collision

From $1781.00 to $1893.00
Model # OEM PN Description Part Number Price Buy
906139101-0790613-91RH Green Wingtip Position Anti-Collision LED
11-17549
$1893.00
Quantity
906139201-0790613-92LH Red Wingtip Position Anti-Collision LED
11-17550
$1781.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

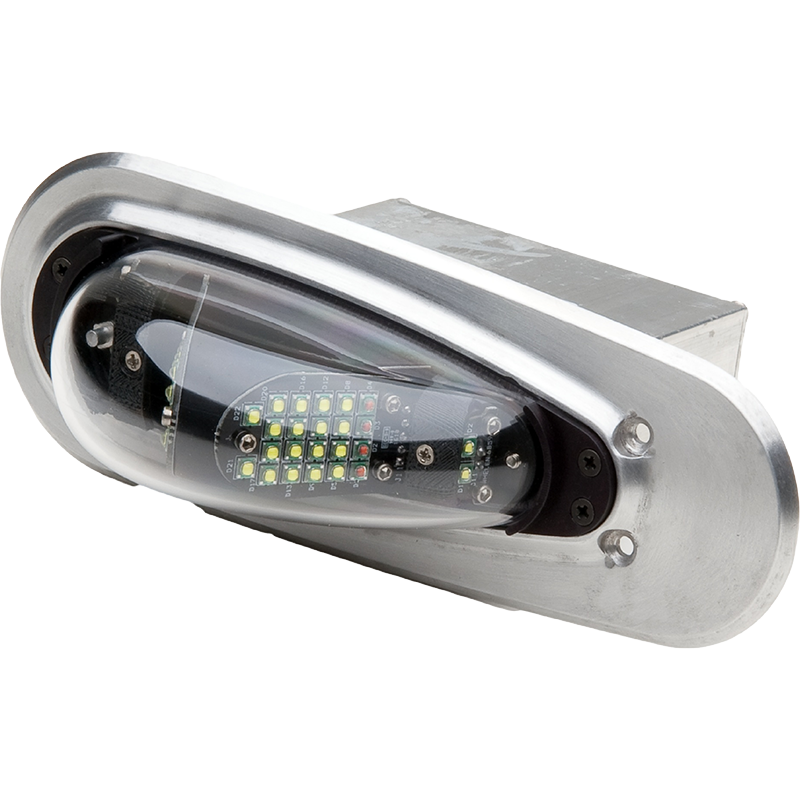

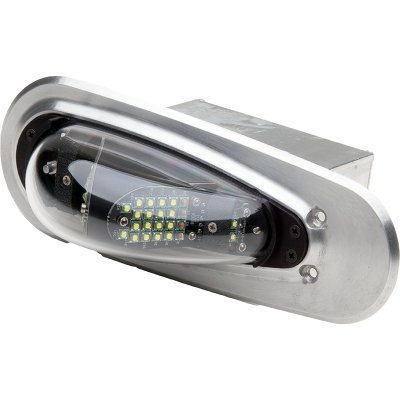

Whelen 90613 Series Wingtip & Anti-Collision.

90613 is a self-contained LED wingtip light head assembly utilized for Cessna Caravans. The unit complies with TSO-C96a Class II (400 ECP) anti-collision light requirements and TSO-C30c forward / rear position light requirements. Model 9061391/ 92 is a direct mechanical replacement, same fit / form / function for the legacy Caravan wingtip lights. Currently, these assemblies are TSO approved with STC PENDING.

Specifications

  • Model #: 9061391 (RH Green) / 9061392 (LH Red)
  • Dimensions: 7.40 Long x 5.33" Wide
  • Exposed Height: 2.63" (66mm)
  • LED Position Light: 0.23 Amps
  • LED Anti-Collision Light (Avg.): 0.73 Amos
  • LED Anti-Collision Light (Pulse @ .25 Sec.): 3.9 Amps
  • Flashrate: 45 ± 5 / min.
  • Nominal Operational Voltage: 28 VDC
  • TSO: Approved
  • STC: Pending
