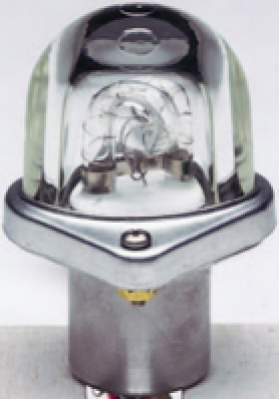

- Photo may represent series and not specific product
- SHARE
| MFG Model # | Description | Part No. | Price | Buy |
|---|---|---|---|---|
| A500AV14 | Vertical Mount, 14 VDC (FAA/PMA, FAA TSO-C30b) | 11-03223 | $933.00 | |
| A500AV28 | Vertical Mount, 28 VDC (FAA/PMA, FAA TSO-C30b) | 11-03255 | $980.00 | |
| A500AH14 | Horizontal Mount, 14 VDC (FAA/PMA, FAA TSO-C30b) | 11-03249 | $963.00 | |
| A500AH28 | Horizontal Mount, 28 VDC (FAA/PMA, FAA TSO-C30b) | 11-03264 | $546.00 | |
| A500AVD2 | Vertical Mount, 28 VDC, radio-shielded (FAA/PMA, FAA TSO-C30b) | 11-06407 | $939.00 | |
| A500ABV1 | Beech Special 14 VDC, MS connector | 11-03715 | $1353.00 | |
| A500ABV2 | Beech Special 24VDC, MS connector | 11-03716 | $1394.00 |
Overview
| A500A series combination strobe/tail navigation light used when the wing tip anti-collision lights are mounted in an enclosure and can’t provide 360º of strobe coverage. It is a direct replacement for the standard tail position light. Available in a radio-shielded version. Voltage (14 or 28) and mounting (horizontal or vertical) must be specified when ordering. |
Specifications
- Drawing Number: 70024
- Weight: 0.3 lbs. (136gm)
- Exposed Height: 1.7” (43mm)
- Diameter: 1.5” (38mm)
Reviews
Excellent replacement!!
Verified Purchase
Whelen A500AH28 28V Tail Pos S
I wish it were clear in the description how long the pigtail was.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, we do stock the replacement bulbs for model A500A-14. Our part number is 11-03216.
Yes, the A500A Series Lightheads do require a Whelen external power supply.
Yes, our part number 11-03223 is Whelen part number 01-0770024-00.
Per the manufacturer: Yes, the pigtail is attached to the end of the wire which will allow you to plug into the HDCAF power supply.
Radio shielded is for use when the wiring must be routed near audio or data lines. This is critical when using the strobe feature of the light. In either case we recommend routing strobe wiring as far away as possible from audio/data lines.
This will come with 2 connectors. A 3 position pin and a 2 position pin. The extra pigtail for the 2 position pin will be included with this. As for the 3 position pin, this is going to be the strobe cable. You should already have this on your aircraft but if you do not, you can purchase a 3 position socket separately which will be part number 11-03212.
No, PN 11-03716 comes only with the MS connector. Your original part number, 01-0770024-25, is our PN 11-03720 and includes no connectors.
