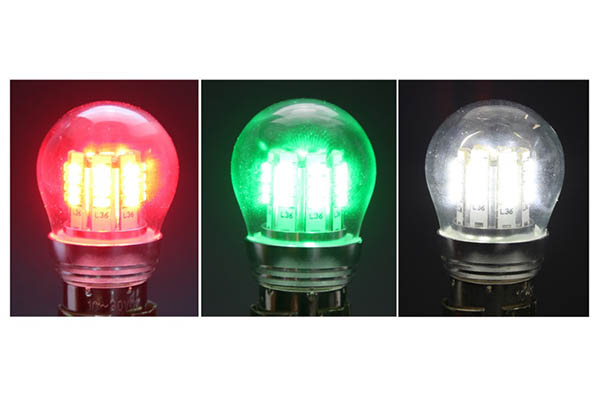

Wingtip And Tail LED Bulb Set Red-Wing | Green-Wing | Clear-Tail

$128.75/Each
Quantity
Add to Wishlist
Part# 11-14884
MFR Model# 7512 LED 3 BULB SET

Overview

Finally a powerful LED replacement for the expensive RA-7512 (14V) and W-1290 (28V) reflector-type navigation bulbs found on many General Aviation aircraft.

Features

  • Red LED and Green LED (BAY15S base (14V) and W-1290 (28V) Reflector-type Nav Bulbs

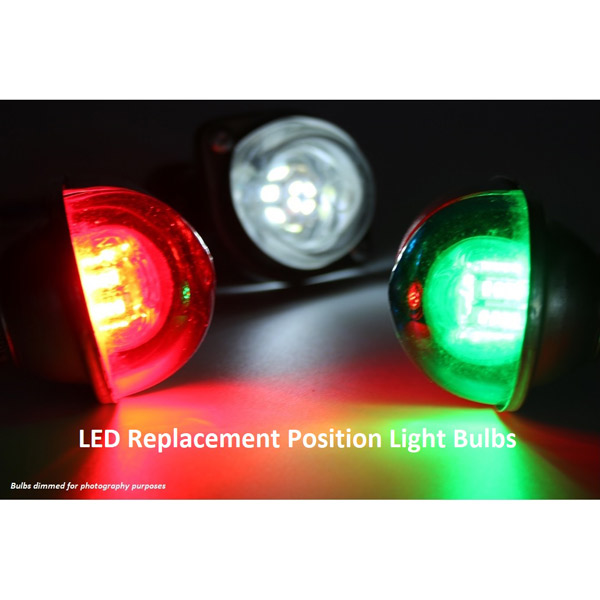

  • Colored LEDs are used behind a Colored Nav Lens produces a very bright and intense Nav Light (see images)
  • Voltage: 10-30VDC compatible

Specifications

  • Applications include: Rotating Beacons and Navigation Lights
  • 2.8 Watts of power; Low power consumption (less than 220mA @13.8V)
  • 14VDC and 28VDC compatible
  • LED elements concentrated toward the Nav lens
  • About 30% brighter than incandescent

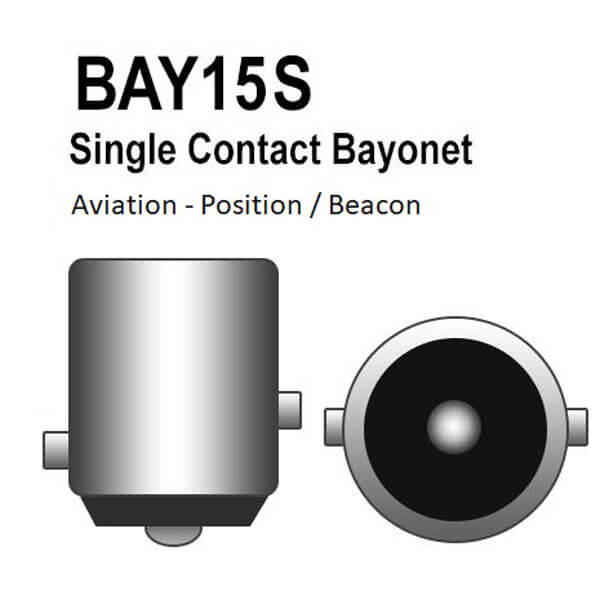

  • BAY15S base (center contact; 2 off-set side retainers - see diagram). This base fits most Grimes and Whelen Navigation light fixtures.
  • Rated at 50,000 hours
  • Fully sealed glass dome
  • Experimental Aircraft Only (for Certified aircraft - these bulbs meet FAA illumination guidelines but have no STC/PMA - ask your IA/A&P to consider these as a "minor alteration"
  • Tested in Grimes and Whelen Navigation lights and Grimes rotating beacons. Super bright output and considerably less current demand than incandescent bulbs.

Documents

In The Box

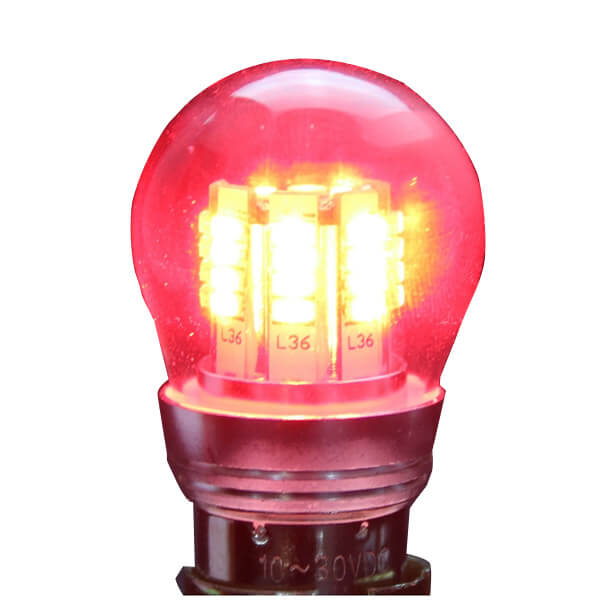

  • Two RA-7512 LED replacements (one Red LED, one Green LED). BAY15S base.

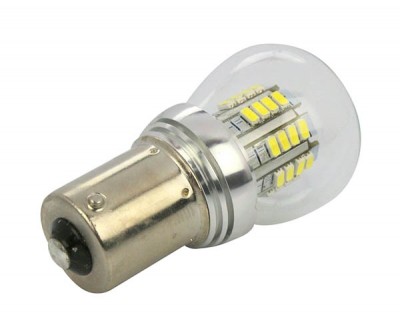

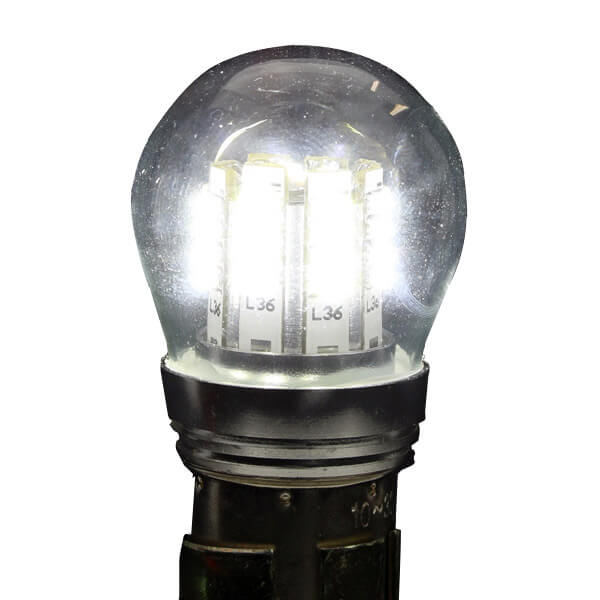

  • One BA15S LED replacement bulb (Cool White LED, 10-30VDC compatible). This fits most tail light Navigation bulb sockets.
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Easy swap - definitely a great way to improve the safety of your lights without a full replacement

Justin K Verified Purchase

Wingtip / Tail LED Bulb Set Red-Wing Green-Wing Clear-Tail

October 4, 2024

Al B Verified Purchase

Wingtip / Tail LED Bulb Set Red-Wing Green-Wing Clear-Tail

September 22, 2024

These lamps blew me away with the brightness. I was only going to replace one side and leave my working lamp alone. Once I saw the difference I replaced both

Vinny B Verified Purchase

Wingtip / Tail LED Bulb Set Red-Wing Green-Wing Clear-Tail

July 24, 2024

I am impressed with the light output of the LED lights, and happy with the clear outer bulbs. So much better than the original incandescents. There was some confusion about using the original green and red bulbs, no need, and will most likely reduce the light output. Seems a little counter productive.

Michael H Verified Purchase

Wingtip / Tail LED Bulb Set Red-Wing Green-Wing Clear-Tail

June 19, 2024

Simple swap and much brighter than old incandescent lamps.

Mike S Verified Purchase

Wingtip / Tail LED Bulb Set Red-Wing Green-Wing Clear-Tail

March 15, 2024

Works perfect. love it.

Hector M Verified Purchase

Wingtip / Tail LED Bulb Set Red-Wing Green-Wing Clear-Tail

February 12, 2024

these LED bulbs are very bright and I would recommend everyone switch out the old incandescent types. the overall amp load is greatly reduced and visibility is increased.

Michael C Verified Purchase

Wingtip / Tail LED Bulb Set Red-Wing Green-Wing Clear-Tail

November 29, 2023

Worked great, no problems. Bright with clear lens. I had no problems with radio noise. I will buy them again for my other airplane.

Kloker A
October 5, 2023

work great, hope they get tsod soon. much less heat than incandescent bulbs

Ric M Verified Purchase

Wingtip / Tail LED Bulb Set Red-Wing Green-Wing Clear-Tail

September 21, 2023

Penticton F Verified Purchase

Wingtip / Tail LED Bulb Set Red-Wing Green-Wing Clear-Tail

July 25, 2023

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Who is the manufacturer of this Wingtip Tail LED set?

Britta Products Inc.

Q: Our A&P wants to know if these parts are TSO before he is willing to sign off. Are these LED bulbs FAA Approved?

These bulbs do not have FAA TSO Approval.

Q: So can you use the clear/white bulb in the exsiting wing tip lights with the red & green glass lenses, instead of getting the clear plastic lense & using the red & green bulbs ?

This kit recommends using the red and green bulbs behind colored lenses. If you were to use the white bulb behind a red or green lens it would wash out the color a little. Red and green behind the same colored lens makes for a brighter red/green.

Q: Do these come with any data sheets on brightness and color?

These do not come with data sheets in the box. We have added the only available data sheet to the web page in the Documents tab.

Q: My parts manual for the 1977 C-177 lists A7512-12, will they work at 12v?

They will replace the bulbs you have and work in your assemblies. However, they do not have approvals for certified aircraft, you would need to check with your A&P to see if they consider these a minor alteration.

Q: Will these fit a Grimes model B nav light as found on a Ercoupe?

Yes these have the correct base for that assembly.

Q: What is required to have them approved on certified approval by an IA a 337?

You would need to ask your IA in this case. They may be considered a minor change but that would be at the discretion of your IA/A&P.
