Wingtip LED Bulb Set Red-Wing | Green-Wing

$96.75/Each
Quantity
Add to Wishlist
Part# 11-14885
MFR Model# 7512 LED 2 BULB SET

Overview

Finally a powerful LED replacement for the expensive RA-7512 (14V) and W-1290 (28V) reflector-type navigation bulbs found on many General Aviation aircraft.

Features

  • Red LED and Green LED (BAY15S base (14V) and W-1290 (28V) Reflector-type Nav Bulbs

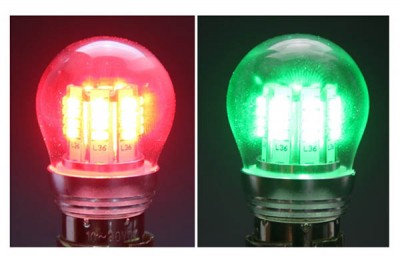

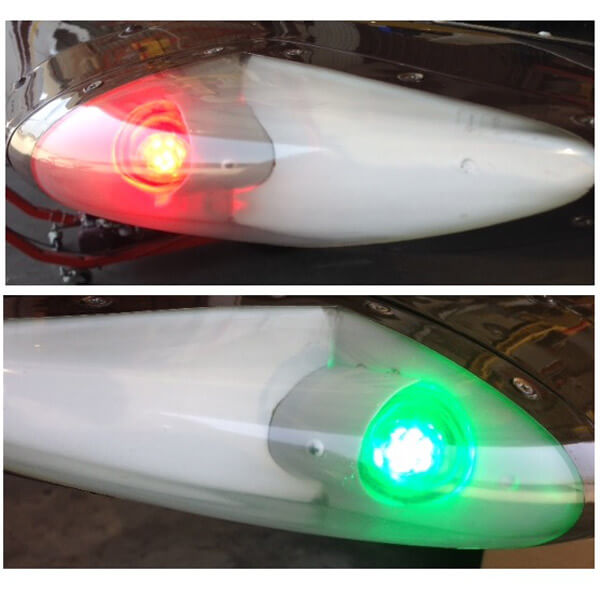

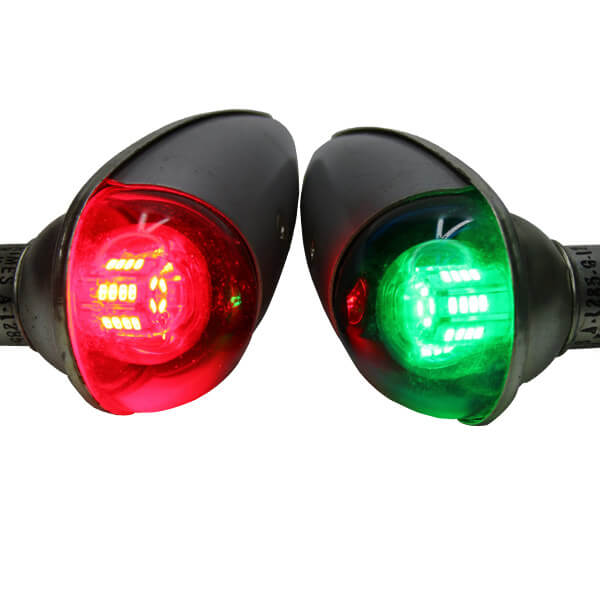

  • Colored LEDs are used behind a Colored Nav Lens produces a very bright and intense Nav Light (see images)
  • Voltage: 10-30VDC compatible

Specifications

  • Applications include: Rotating Beacons and Navigation Lights
  • 2.8 Watts of power; Low power consumption (less than 220mA @13.8V)
  • 14VDC and 28VDC compatible
  • LED elements concentrated toward the Nav lens
  • About 30% brighter than incandescent

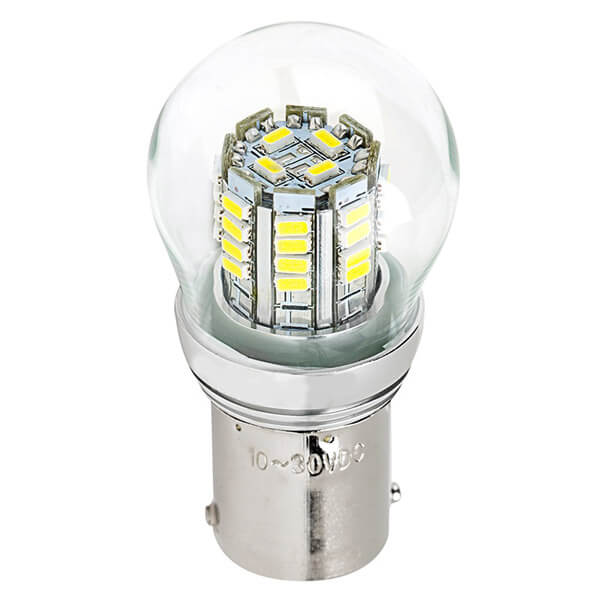

  • BAY15S base (center contact; 2 off-set side retainers - see diagram). This base fits most Grimes and Whelen Navigation light fixtures.
  • Rated at 50,000 hours
  • Fully sealed glass dome
  • Experimental Aircraft Only (for Certified aircraft - these bulbs meet FAA illumination guidelines but have no STC/PMA - ask your IA/A&P to consider these as a "minor alteration"
  • Tested in Grimes and Whelen Navigation lights and Grimes rotating beacons. Super bright output and considerably less current demand than incandescent bulbs.

In The Box

  • Two RA-7512 LED replacements (one Red LED, one Green LED). BAY15S base.
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

The LED light bulbs were exactly as advertised. They arrived earlier than I had anticipated and the packaging was good. The bulbs installed perfectly and the brightness is incredible.

Matthew D Verified Purchase

Wingtip LED Bulb Set - Red & Green

October 3, 2024

Works fine. Installed fine.

Robert B Verified Purchase

Wingtip LED Bulb Set - Red & Green

December 9, 2023

great lights.. work well

Dale H Verified Purchase

Wingtip LED Bulb Set - Red & Green

November 28, 2023

Plesed

Timothy R Verified Purchase

Wingtip LED Bulb Set - Red & Green

October 12, 2023

Quick and easy to install. Very affordable product.

Robert S Verified Purchase

Wingtip LED Bulb Set - Red & Green

October 1, 2022

Grant M Verified Purchase

Wingtip LED Bulb Set - Red & Green

September 2, 2022

The parts I needed for repairs.

Jimmy R Verified Purchase

Wingtip LED Bulb Set - Red & Green

June 15, 2022

They were easy to install and are very bright! Lower current draw and long life.

Better B Verified Purchase

Wingtip LED Bulb Set - Red & Green

March 18, 2022

Look great on the C150

Andrew K Verified Purchase

Wingtip LED Bulb Set - Red & Green

January 20, 2022

Perfect fit, works well, much brighter than a standard bulb

Philip R Verified Purchase

Wingtip LED Bulb Set - Red & Green

October 28, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the price for a set of two, Red and green, or for one bulb?

This is a set so you will get one of each light. You may special order a single green or red light by itself if you need a replacement.

Q: Does this LED lamp require a clear lens? Can it be installed under a green lens? My aircraft has the sky beacon on the left side.

These should be installed behind a color lens.

Q: Are these bulbs FAA Approved?

No. These bulbs do not hold FAA Approval.

Q: Will these work for 12v or just 14v? I currently have 7512-12 bulbs

These will work in both 12v or 14v applications.

Q: Do these cause wingtip light bulbs cause static on radio?

Per the manufacturer, 99.9% of the planes these are installed on have no RFI issues. Any RFI issues the know of have been caused by wiring issues.

Q: Who is the manufacturer?

These are made by Britta Products.

Q: I currently have Grimes nav lights A-7512-24 ---24 volts will these work with my sockets and voltage?

Yes these will work with 14 and 28 volt applications. They should fit your Grimes assembly as well.
