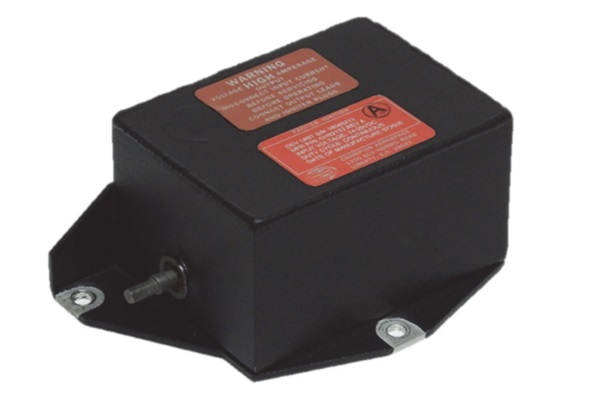

Champion Exciter CH92133

0 Reviews 0 Answered Questions
$5948.00/Each
Quantity
Add to Wishlist
Part# 08-19064
MFR Model# CH92133

Overview

The Champion Aerospace Ignition Exciter Assembly, Model CH92133 is eligible by FAA-PMA for use on the Rolls-Royce Model 250 Series I, II, III & IV turbine engines as approved for replacement of the following exciter models:

Rolls-Royce
  • PN 6899093
  • PN 6895573
Unison
  • PN 10-614950-1
  • PN 10-387150-1
  • PN 49522

Features

  • The exciter consists entirely of solid state circuitry with no “wear out”
  • characteristics to ensure consistent performance and long life
  • The exciter does not contain radioactive materials as these materials are not
  • necessary for operational stability
  • The exciter presents the same footprint, form and weight as the OEM part so
  • that installation and the weight/balance of the airframe is not affected

Specifications

  • Input Power:
    • 14-30 VDC
    • 1.1A typical, 1.5A (max.)
      • Operational duty cycle: Continuous @ 185°F (85°C)
      • Operational Temp. Range: -54 to +121°C
      • Spark Rate:
        • 5 to 15 sparks/second
        • (Input voltage dependent)
      • Output voltage: 7kV minimum (8kV typical)
      • Output waveform: Unipolar, 40µs spark duration
      • Stored energy: 1.4 joules nominal

Benefits

  • Vibration tested to 35g for 9 hours, 3 axis (Sinusoidal)
  • Shock tested to 30g, 3 axis (Saw-tooth impulse)
  • High temperature endurance tested at 250°F (121°C) 300 hours
  • Low temperature tested at -65°F (-54°C)
  • Tested for continuous operation at 26,000 ft. (7,925 m) equivalent altitude
  • EMC tested per RTCA/DO-160E, radiated and conducted emissions
  • Durable, environmentally resistant polyurethane finish

Documents

Competitive Analysis

Comparison to the OEM Ignition Exciter – Design Features
Unison Ignition Exciter Champion Ignition Exciter
PN 10-614950-1 PN CH92133
Housing – Solder sealed Housing – Welded
Weight – 1.4lbs Weight – 1.4lbs
HV switch – Spark Gap Solid State Spark Gap (S3GTM)
Life limited Non-limited life
Radioactive "Krypton 85" Radiation free
Repairable – No Repairable – Yes


Performance Comparison to the OEM ignition exciter
Characteristic Unison Ignition Exciter Champion Ignition Exciter
Energy at the plug: 0.4 joules nominal 0.4 joules nominal
In-rush current at 14Vdc: 29A (peak) 26A (peak)
Input current at 29Vdc: 1.3A rms (typical)* 1.1A rms (typical)*
Spark rate at 14Vdc: 4.6 spk/sec. 5.6 spk/sec.
Spark rate at 29Vdc: 12.3 spk/sec. 12.1 spk/sec.
Time to first spark at 14Vdc: 215 msec. nominal 200 msec. nominal
Output current: 825A (peak) 805A (peak)
Output voltage: 11.3kV (peak) 9.5kV (peak)
Spark duration: 36µsec. Nominal 40µsec. Nominal
