2 Inch Aluminum Flange

$34.70/Each
Quantity
Add to Wishlist
Part# 08-04135
MFR Model# DL-011

Overview

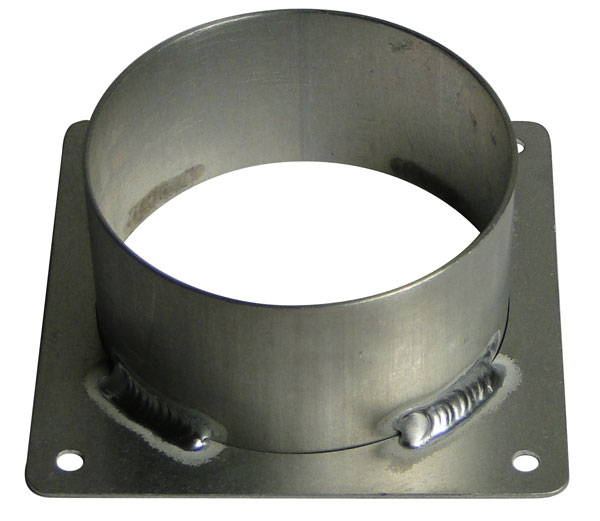

2” ALUMINUM FLANGE - Accepts 2” scat tube. Flange allows riveting to firewall, baffles, etc. Wt: 0.2 oz.

Reviews

Lightweight part, excellent welding, fast delivery.

Mark S Verified Purchase

2 Aluminum Flange

November 10, 2022

Worked perfect as an air port to 2 scat hose.

Blane J Verified Purchase

2 Aluminum Flange

June 17, 2021

Its just what it claims to be.

Roderick K
December 19, 2020

Worked perfectly to repair carb heat on 0-320

Wayne
February 7, 2020

Well made.

Bruce Z
September 23, 2017

Good fix and good quality with heavy enough material to be durable as far as replacing the 2 nipple that broke off the otherwise new and unused heat box that was on the airplane. The rivet holes will be inside the original ones as they didnt match up. I was worried that this would interfere with the flapper valve but it did not. I did not have to remove the airbox to repair it with this. Just mark the four holes, auto center punch them and pop rivet this in place. Vacuum out the drill shavings after its done.

Kurt E
August 3, 2017

Works great for fixing Cessna Carb Heat Box

Paul
March 16, 2017

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the inside diameter? What it the overall height?

No, the OD is 2". The ID is approx. 1-3/4". The overall height is approx. 1".

Q: What are the dimensions of the square flange? What is the distance between adjacent holes?

This would have the dimensions 2-1/2"x2-1/2". With the distance between the adjacent holes be 2.1".
