| Description | Part Number | Price | Buy |
|---|---|---|---|

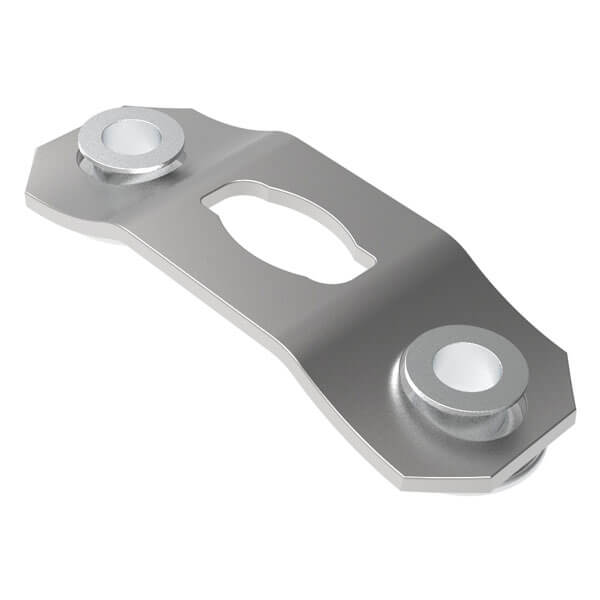

| #82 Southco Receptacle - Floating for Riveting w/o Base | 82-35-295-20 | $2.27 | |

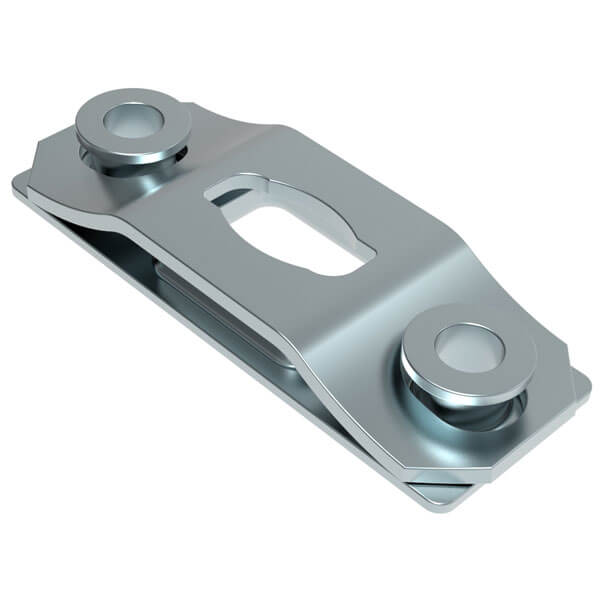

| #82 Southco Receptacle - Floating for Riveting w/ Base | 82-35-302-15 | $1.14 | |

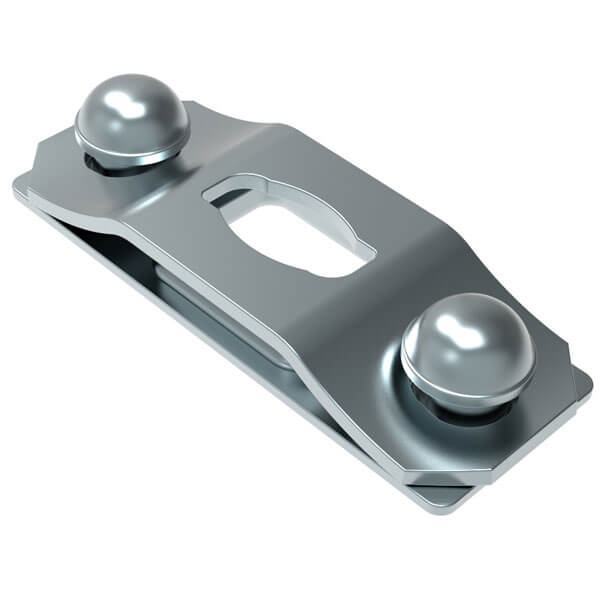

| #82 Southco Receptacle - Fixed for Welding with Base | 82-35-303-15 | $5.35 | |

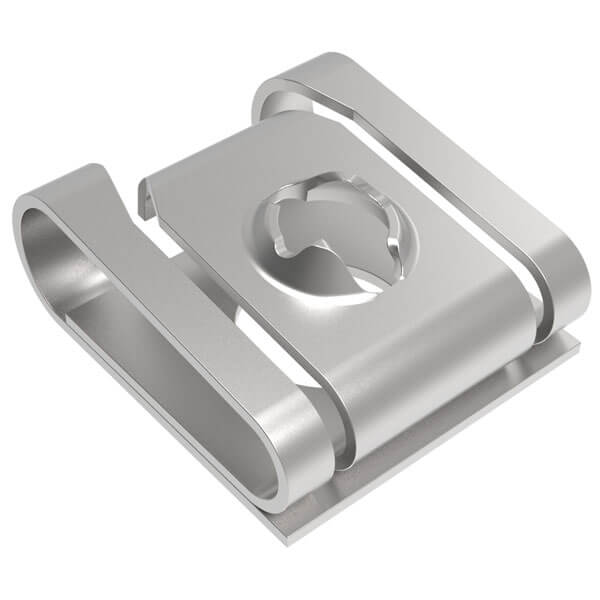

| #82 Southco Receptacle - Clip On (Stainless Steel) | 82-47-113-200 | $2.69 | |

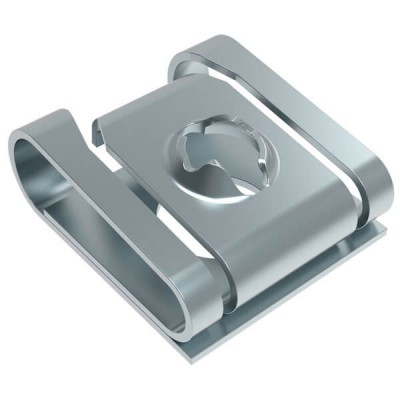

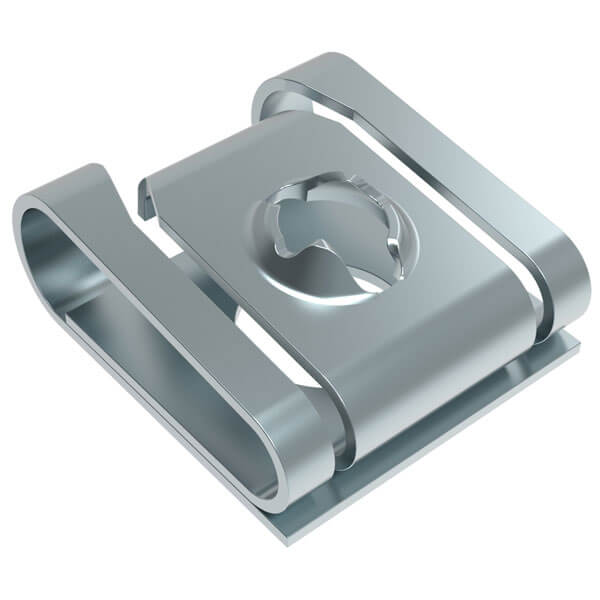

| #82 Southco Receptacle - Clip On (Steel) | 82-47-113-150 | $0.62 | |

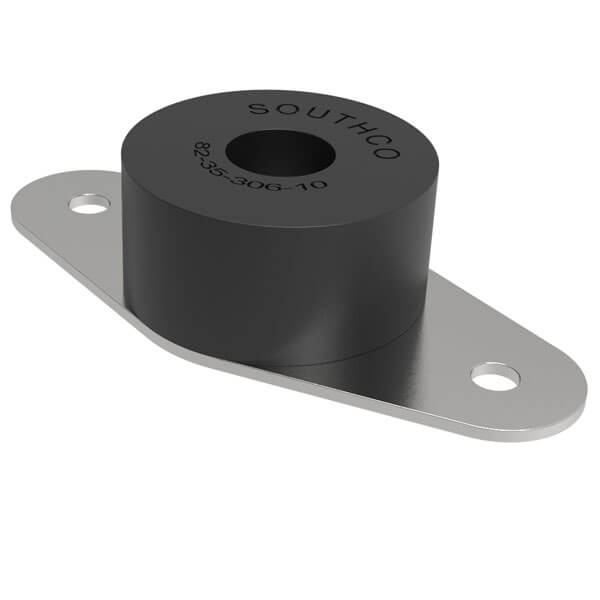

| #82 Southco Receptacle - Rubber Vibration Isolation | 82-35-306-10 | $13.50 |
Overview
|
Floating for Riveting without Base - This space saving stainless steel receptacle offers optimum weight savings by eliminating base. Floating for Riveting with Base - Full-floating dacrotized steel receptacle is mounted to inside panel with two 3/32" rivets. Compact dimensions save space and weight. Clip-On Receptacles - These versatile receptacles will fit material thickness from .020 to .190 b simply slipping over the hole and clipping in place. Easily removed as well, these receptacle do not require welding and riveting. Rubber Vibration Isolation Receptacles- Use these receptacles where it in necessary to isolate vibration between panels. |
Specifications
| P/N: 82-35-295-20 | |
|---|---|
| Material | Stainless Steel |
| Finish | Passivated |
| Color/Appearance | Bright |
| Installation | Rivet / Screw |
| Receptacle Style | Rivet-on |
| Size Series | Medium Size 82 |
| Type | Receptacle |
| P/N: 82-35-302-15 | |
|---|---|
| Material | Steel |
| Finish | Zinc Immersion Coating |
| Color/Appearance | Silver |
| Installation | Rivet / Screw |
| Receptacle Style | Rivet-on |
| Size Series | Medium Size 82 |
| Type | Receptacle |
| P/N: 82-35-303-15 | |
|---|---|
| Material | Steel |
| Finish | Zinc Immersion Coating |
| Color/Appearance | Silver |
| Installation | Weld |
| Receptacle Style | Weld-on |
| Size Series | Medium Size 82 |
| Type | Receptacle |
| P/N: 82-47-113-20 | |
|---|---|
| Material | Stainless Steel |
| Finish | Passivated |
| Color/Appearance | Bright |
| Installation | Clip-on |
| Receptacle Style | Clip-on |
| Size Series | Medium Size 82 |
| Type | Receptacle |
| P/N: 82-47-113-15 | |
|---|---|
| Material | Steel |
| Finish | Zinc Immersion Coating |
| Color/Appearance | Silver |
| Installation | Clip-on |
| Receptacle Style | Clip-on |
| Size Series | Medium Size 82 |
| Type | Receptacle |
| P/N: 82-35-306-10 | |
|---|---|
| Material | Rubber |
| Material | Steel |
| Finish | Natural |
| Finish | Zinc Plate, Bright chromate |
| Color/Appearance | Black |
| Color/Appearance | Bright |
| Installation | Rivet / Screw |
Documents
- Tech Data Sheet
- SouthCo Drawing 82-35-295-20
- Performance Data 82-35-295-20
- SouthCo Drawing 82-35-302-15
- Performance Data 82-35-302-15
- SouthCo Drawing 82-35-303-15
- Peformance Data 82-35-303-15
- SouthCo Drawing Series 82-47-113
- Performance Data Series 82-47-113
- SouthCo Drawing 82-35-306-10
- Performance Data 82-35-306-10
