Aeroquip Nipple Assembly

1 Review 0 Answered Questions
From $49.50 to $232.95
Main Image
Description Part Number Price Buy
Eaton Nipple Assembly AE21496B
AE21496B
$64.75
Quantity
Eaton Nipple Assembly AE21496E
05-11822
$49.50
Quantity
Eaton Nipple Assembly AE21496F
05-11823
$70.75
Quantity
Eaton Nipple Assembly AE21496G
05-11824
$64.75
Quantity
Eaton Nipple Assembly AE21496H
05-11825
$74.75
Quantity
Eaton Nipple Assembly AE21496J
05-11826
$117.75
Quantity
Eaton Nipple Assembly AE21496K
05-11827
$134.75
Quantity
Eaton Nipple Assembly AE21496M
05-11828
$232.95
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Compression crimp fittings are available in both flared and flareless types to mate with (AS4395) and (AS4375) end connections. In addition, elbow fittings are available in standard 45° and 90° styles. Special elbows, crosses, tees, wyes, adapters, bosses, etc. may be made for customer installations. The unique combination of the “ramped” nipple and the crimping pattern used on the compression crimp fitting results in superior fitting retention under pressure. Burst pressure tests indicate that extreme pressures will result in “free hose” bursts rather than fitting blow-off. The fitting design effectively traps and holds the wire reinforcement of the hose in the area of the ramp on the fitting nipple.

Works with AE21498 Socket, see Accesories tab for part number, (letter size code same as nipple assembly).

Specifications

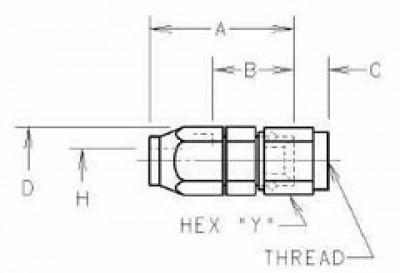

AEROQUIP THREAD SIZE THREAD MAX DIM A DIM B DIM C MIN I.D. FTG WT (LB)
AE21496B -3 0.4375-20 UNJF-3B 1.12 0.25 0.37 0.132 0.05
AE21496E -4 0.3750-24 UNJF-3B 1.12 0.24 0.34 0.09 0.039
AE21496F -5 0.5000-20 UNJF-3B 1.26 0.31 0.38 0.193 0.065
AE21496G -6 0.5625-18 UNJF-3B 1.37 0.34 0.38 0.256 0.078
AE21496H -8 0.7500-16 UNJF-3B 1.53 0.44 0.43 0.34 0.137
AE21496J -10 0.8750-14 UNJF-3B 1.75 0.56 0.5 0.43 0.191
AE21496K -12 1.0625-12 UMJF-3B 1.96 0.46 0.57 0.548 0.297
AE21496M -16 1.3125-12 UNJF-3B 2.32 0.6 0.6 0.778 0.464

Documents

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

The chart is wrong for size. Check the data sheet before purchase. E and B are swapped

Glenn
March 15, 2023
