Aerospace Logic Manifold Pressure & Tachometer

0 Reviews 2 Answered Questions
From $1929.00 to $1929.00
Main Image
Main Image
Description Part Number Price Buy
Aerospace Logic MT200Kb Manifold Pressure And Tachometer Bendix Kit
10-05178
$1929.00
Quantity
Aerospace Logic Manifold Pressure And Tachometer Slick Kit
10-05223
$1929.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Aerospace Logic AOG Expedite Available, additional charges will apply.

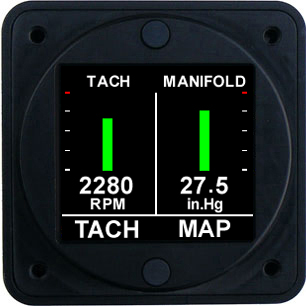

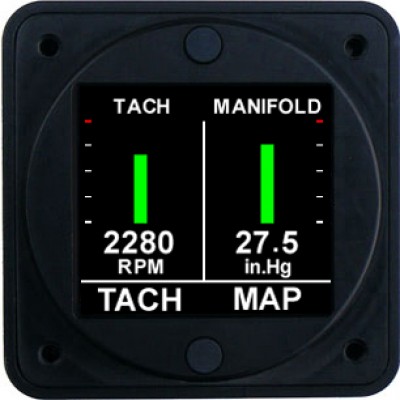

The MT200 is an advanced, next generation manifold pressure and tachometer combination instrument.

Manifold pressure functionality is TSO'd and meets the pressure accuracy requirements of SAE AS8042. Tachometer functionality is TSO'd to C49b and accuracy requirements of AS404C.

Functional displays include:
Simultaneous, real-time analog data depiction and digital value display for both manifold pressure and tachometer
Graphical trend display of both manifold pressure and tachometer data.
Display and tracking of engine time

The MT200 is TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR)

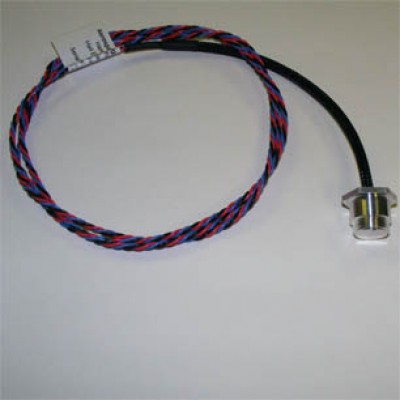

The sensor is mounted in the vent hole (closest to the engine) of the magneto. The instrument will work on all 4, 6 and 8 cylinder aircraft engines. Includes all installation hardware.

Features

    Certification / Compliance:
    TSO C44bCanadian STCFAA STCCertified as primary replacement
    SoftwareDO-178B
    DC Power Source
    Input voltage 6 to 36 VDCPower consumption 100mALoad dump tolerance +60VDirect spike tolerance +/- 60VCable spike tolerance > +/- 1KV
    Operating Temperature
    Constant operating -15ºC to +55ºCShort term operating (1hr) -40ºC to +70ºCStorage -55ºC to +85ºC
    Signal Input
    Pressure: 0.5V to 3.0V
    Tachometer: 0.0V to 5.0V pulse width modulated square wave
    Display Units
    Manifold Pressure: 0.0 inHg to 50.0 inHg
    Tachometer Range: RPM 0 - 9000
    Accuracy
    Manifold Pressure: AS8042 +/- 0.1inHg
    Tachometer: AS404C +/- 1 RPM
    Display
    Sunlight readable LCD176 X 192 display pixels65,535 colors
    Annunciator Output
    100mA sink with reverse EMF protection
    RS-232 Data
    Output 1 second per full sequence at 57.6K bps (8/N/2/N)
    Interface Connector
    DB-25
    Software Functionality
    Primary: Manifold pressure and Tachometer
    Trend Graph: Graphic display of manifold pressure and tachometer data
    Engine Time: Display of engine time. Start time set at install

Specifications

  • Dimensions: 2.45” X 2.45” X 0.96”
  • Weight (excluding harness): 4.05 oz
  • Finish: Black anodized 6061 aluminum
