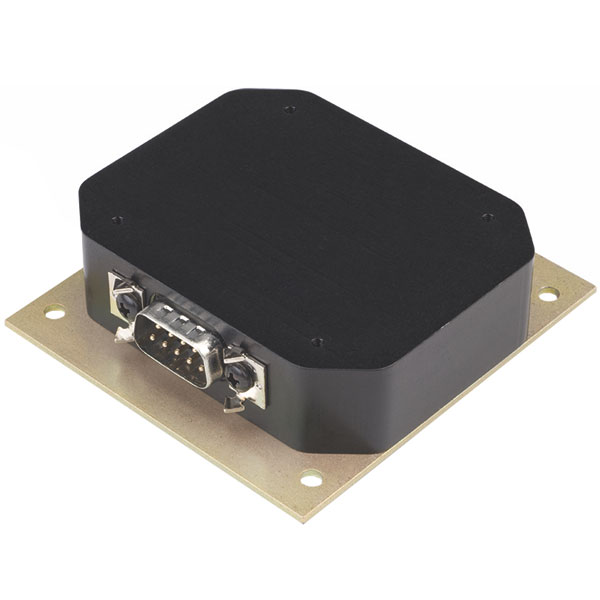

Mid-Continent Instruments & Avionics MD32 Magnetometer

$2203.00/Each
Quantity
Add to Wishlist
Part# 10-06594
MFR Model# 6420032-1

Overview

The MD32 Magnetometer is designed specifically for the MD302 Standby Attitude Module — SAM®. The MD32 is FAA TSO-certified and delivers independent heading reference without orientation limitations or the need for special installation hardware. Its compact size, unique mounting flexibility, and convenient cockpit calibration ensure easy, economical installation.

Specifications

Power Input: 7–32 VDC; 0.56 W max
Output: ARINC 429 custom format
Dimensions: 2.75 inches x 3.0 inches x 0.81 inches
Weight: 0.19 lbs (3 oz)
Temperature: -55°C to +70°C (-67°F to +158°F)
Altitude: 55,000 feet
Manufactured: Designed and built in Wichita, Kansas, USA
Certification: FAA TSO certified to C6e; RTCA DO-160G; RTCA DO-178C Level A
