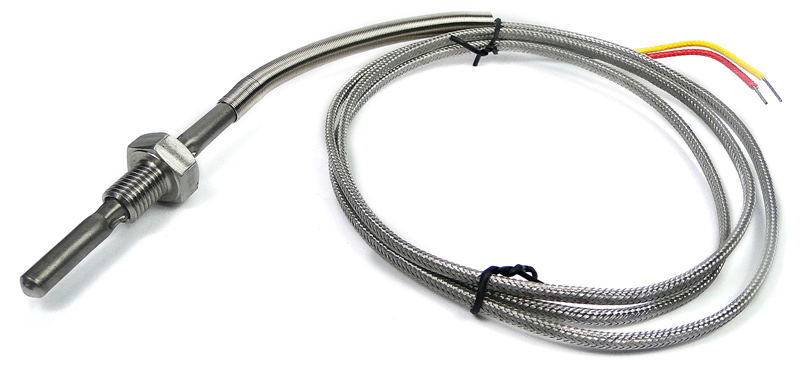

MGL Avionics K-Type Thermocouple Probe
MFR Model# EGT-M8
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|
Top quality, high temperature EGT probe. This unit can be used up to 1200 degrees C (2000 degrees F) short-term and 1100 degrees C indefinite. Made from 310 grade stainless steel the probe will remain firm at high temperatures making this an excellent choice for turbo charged high performance engines. The bolt has a 8x1 thread (Metric fine thread) as used by Rotax for their exhaust manifolds. The bolt is made from high tensile steel and is compatible with mild steel exhaust systems from a temperature expansion rate point of view. The probe is fitted with a 3 ft, stainless steel armoured, mineral fibre insulated cable. The probe is a "K-type" thermocouple. |
Reviews
Part description is excellent, it allowed me to figure out which probe of the bunch that had the best chance to work in my 2006 Rotax 912ul. It does!
Verified Purchase
MGL EGT Thermocouple M8X1 Thrd
Verified Purchase
MGL EGT Thermocouple M8X1 Thrd
Works just fine as replacement. Does have a shorter lead and may need an extender.
Verified Purchase
MGL EGT Thermocouple M8X1 Thrd
I tried 2 less expensive couplers that didnt work or fit. This fit and worked properly in my 582 gray head.
Verified Purchase
MGL EGT Thermocouple M8X1 Thrd
👍
Verified Purchase
MGL EGT Thermocouple M8X1 Thrd
Rotax 912 ULS with FlyDat system, works as advertised no issues so far, easy install
Works fine. Least expensive option for a Rotax 503 on my challenger
Installed on my challenger 2 - 503 Rotax. Works great and appears to be the least expensive solution out there. 8mm x1 standard thread for 503 exhaust manifold.
Beware: the wire is short. Maybe my plane is longer than standard. The probe is as described. Excellent avionics support from Aircraftspuce US. As directed you can extend it with JPI Type K thermocouple wire (Part # 10-18600).
Whats to review, its a thermocouple, EGT sensor.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
It does not turn independent of the probe.
Westach recommends only using westach senders with a westach gauge.
We do not recommend mixing manufacturers for these types of installations as we cannot guarantee function. Please view the Grand rapids EGT probes.
The manufacturer advises that the length not be shortened on these.
32 mm.
This is ungrounded.
The probe from tip to under the head is 32mm, the cable is 3 feet.
The thread is metric, m8x1.
Per Vendor: "The threaded portion is about .446in or 11.3mm in length."
