The EMS for ROTAX engines
Engine Monitor + Mobile App + Instant Support Service*

With an update rate of five times per second, Engibox measures and displays the engine parameters to warn you instantly if any measurement exceeds the engine limits.

Data are recorded and stored in the internal memory (up to 160 hours). Download the free Engibox mobile App to get Instant Support Service*.

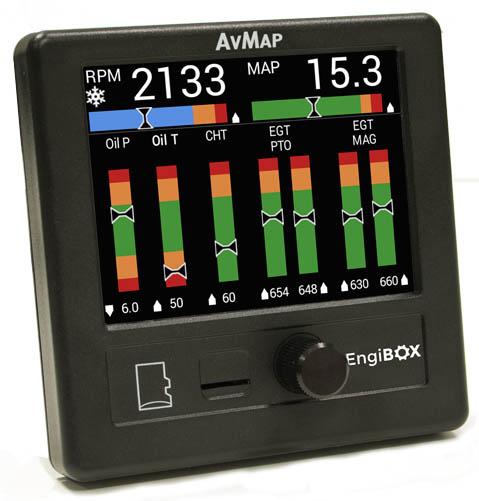

EngiBOX is a light and compact engine monitor displaying
  • Exhaust Gas Temperature (EGT)
  • Revolutions per Minute (RPM)
  • Manifold Pressure (MAP)
  • Oil Pressure
  • Oil Temperature / Air Temperature
  • Cylinder Head Temperature (CHT) / Coolant Temperature (CT)
*Instant Support Service is currently offered by Luciano Sorlini SPA in: Albania, Bosnia and Herzegovina, Croatia, Cyprus, Gibraltar, Greece, Israel, Italy, Lybia, Malta, Pakistan, Portugal, San Marino, Serbia, Spain, Turkey, Vatican City

EngiBOX is compatible with the following sensor probes:
    4 x INPUT Thermocouple (type K)
  • Exhaust Gas Temperature (EGT) (2 Stroke / 4 Stroke)
  • Cylinder Head Temperature (CHT) (2 Stroke)

    2 x INPUT Thermoresistance (PT-100)
  • Air Temperature, Coolant Temperature (2 Stroke)
  • Oil Temperature, Cylinder Head Temperature / Coolant Temperature (4 Stroke)

    1 x INPUT Oil Pressure pick-up (4-20 mA Rotax 456-180 or equivalent)
  • Oil Pressure (4 Stroke)
  • Note: Measuring range: 0.75 to 10.75 bar

    1 x RPM pick-up
  • Measuring range: 100 to 9990 rpm

    1 x INPUT Manifold Pressure
  • Measuring range: 200 to 2500 hPa
  • Note: sensor present on EngiBOX

Specifications

Hardware

Dimensions 95 x 95 x 88 mm
Fitting standard 3-1/8" panel hole
Weight: 250 g
Display: 3.5” colour LCD, with anti reflective coat 320×240 pixels, 500 cm/m2
Micro SD slot
Real Time Clock
DB15 connector with antivibration lock system to support: 4 x Thermocouples sensor 2 x PT100 sensor 1 x 4-20 mA pressure sensor 1 x RPM 1 x Serial connection (Probes Not Included)
Manifold pressure sensor
Bluetooth Low Energy
Power Input range: 10-35 VDC
Current consumption @ 12VDC: 150 mA MAX
Operating Temperature range: -20°C / +70°C

Software

Wizard driven engine Initialization

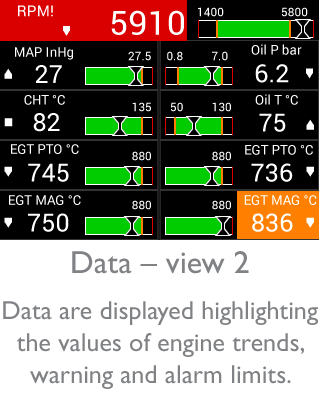

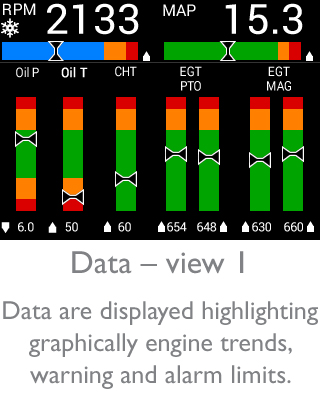

Engine data displayed in two alternative views

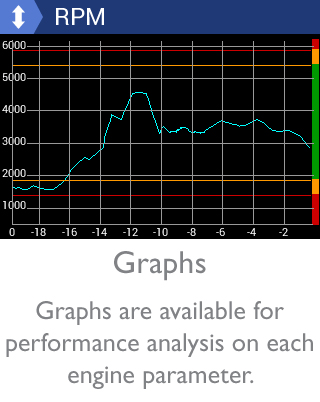

Graph page for each engine parameter

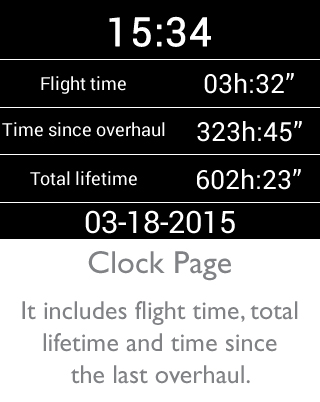

Clock page including flight time, total lifetime, time since overhaul
Data registration on internal memory and data export to micro SD or EngiBOX mobile App

Compatible Engines

2 Stroke Air cooled Rotax 447 UL SCDI Rotax 503 UL DCDI
2 Stroke Liquid cooled Rotax 582 UL DCDI Rotax 618 UL DCDI
4 Stroke Liquid cooled Rotax 912 DCDI series Rotax 912S DCDI series Rotax 914 DCDI series
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Saludos nesesito CHT 14mm/y largo 8’

Gilberto S
August 9, 2020

I should have followed up on my last review as Engibox made contact very quickly after i contacted them and they replaced the entire unit for new, unbelievably it arrived from Italy to Australia in 48hrs ! Now installed the unit has been perfect, the display is also incredibly bright and continues to be faultless. The customer serviced turned out to be exceptionally good, well done Avmap So its good to now report Iam a happy customer :)

Nicholas C
October 16, 2019

I installed the Engibox with my Rotax 582 DCDI Blue Head. This unit is awesome. The EGT and RPM probes are directly connected to the muffler going to the Engibox and the #2 and #4 spark plugs then direct to the Engibox. I have nothing but great things to say. I liked it so much, I made an Engibox video on YouTube, search AvMap Engibox. The screen is very bright. The SIM card and blue tooth engine history capability is priceless. What other engine monitor at this price gives your real time engine history after your flight? Perfect for Rotax engines.

Doug R
October 16, 2019

I really wanted to like this thing. I spent over a month trying different EGT sensors not getting any to work, even though they were proper grounded type K thermocouples. FINALLY I decided to get the second one from my other plane out, it works with the EGT. Dead sensor inputs on arrival so it obviously was never tested at the factory, but I cant even swap in the good one since its now PERMANENTLY tied to the serial number of my other plane. I would NOT recommend this product.

K P
April 28, 2020

First unit RPM was very random and unit failed at about 12 months (possibly longer), very low hours use anyway, after much emailing and demanding what actually failed they replaced unit, but now after two hours use second unit failed completely, now awaiting response. Before purchasing ask more on forums is mt advice.

Nicholas C
June 3, 2018

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I would like to use it with a four stroke four cylinder VW such as with a Sonex, can it be user programmed for other engines?

Per the manufacturer: The Avmap engibox is only programmed for Rotax engines and can not be user programmed.

Q: Iam looking at this for my 582 Rotax. Is the format changed for 582 ? i.e Oil pressure replaced with additional CHT etc I hope it will provide x2 CHT x2 EGT x1or x2 Temp on the main screen. If you have a spec sheet for 582 please forward. Thankyou Nick

The Avmap Engibox (11-13657) main screen for the Rotax 582 display's 2 CHT, 2 EGT, RPM, coolant temp, and air temp.

Q: Will this work with 912ULS ?

Per the manufacturer: Yes, the Avmap Engibox (11-13657) will work with the Rotax 912ULS. The only 912 this does not work with is the 912IS.

Q: For a 912ULS, what sensors/probes are included with this Avmap Engibox, part # 11-13657?

No Rotax probes/sensors are included with the AvMap Engibox for Rotax. Most installers should have the probes that were included with the Rotax engine.

Q: I noticed from the pin-outs that there are two CHT/CT inputs, labeled A & B. Are these two, separate inputs, or A & B leads for a single probe? The Rotax 912ULS has two, factory installed CHT/CT probes, for Left & Right. So with the Engibox, am I to understand that I must close only one CHT/CT input?

Per the manufacturer: the Engibox will monitor 2 CHT and 2 EGT for both left and right cylinders.

Q: For a Rotax 912ULS, do I need something else to get the AvMap Engibox working other than the original Rotax probes?

Most of the necessary probes are included with the Rotax engine. If you need additional EGT and CHT probes, see parts 10-01257 and 10-00717 for examples. These are typical 912 probes, but we recommend confirming that they will work for your specific application before install.

Q: Does / can this Avmap Engibox for Rotax unit give a voltmeter readout?

No, this unit does not have a voltmeter readout or display.
