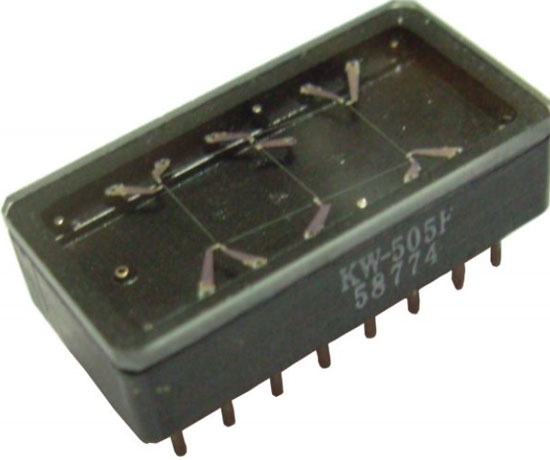

Davtron Numeric Digital Display Kw505F
MFR Model# KW505F
- JUMP TO
- Overview
- Features
- Reviews
- Q&A
- View in Catalog
Overview
| Incandescent Display (replacement display only for Davtron products.) |
Features
- Sunlight readable
- Incandescent Display
- Wide viewing angle
- Sealed and impervious to salt and humidity
- Long life
- Compact design
- Even brightness at rated and dimming voltages
- Shock and vibration resilient
- Easily filtered for night vision compatibility
Reviews
Happy that parts are available. Relatively simple replacement that will give me more years of service.
Verified Purchase
Davtron Replacement Display KW505F
Replaced several of these in an 811B and it is now fully operational. Davtron does not supply instructions however it is pretty straightforward: 1) disconnect power including the backup battery 2) remove the four screws holding the front panel in place. gently remove front panel. 3) carefully pry out inoperative digits (you may have to remove an edge display to get to the middle ones) 4) make sure leads are straight on new digit 5) insert it with pin 1 (might have a dot) towards the top of the unit. gently press in place. 6) install front face plate 7) attach backup battery Then remind your boss how much money and time you saved by not having to ship it out for repair.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the manufacture, the RT385A display is not certified for compatibility.
Per the manufacturer: these are single digit displays on the 811, there are 4 on top and 2 on the bottom.
Per the manufacturer, this is a replacement for Davtron products to replace individual digits.
