Dynon Module Mounting Tray for Sv-hdx800

$155.75/Each
Quantity
Add to Wishlist
Part# 10-07472
MFR Model# 104067-000

Overview

The Module Mounting Tray for SV-HDX800 simplifies both the new and retrofit installations by providing the means for mounting the HDX800 display and its backup battery. In addition, it provides mounts for either a SkyView COM transceiver, or a SkyView Transponder.

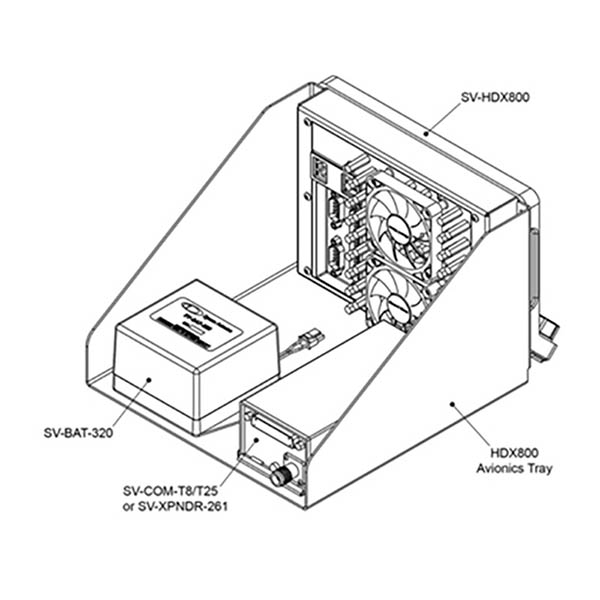

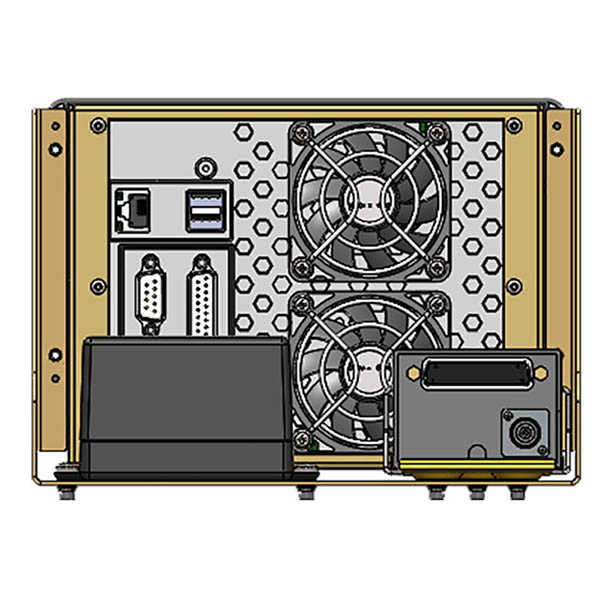

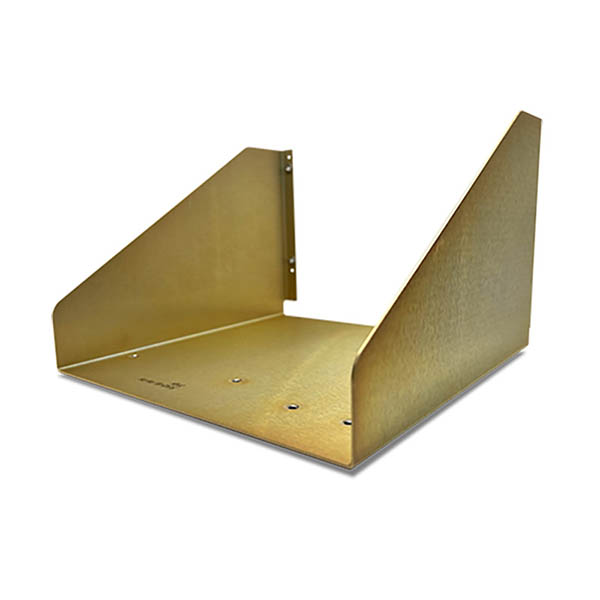

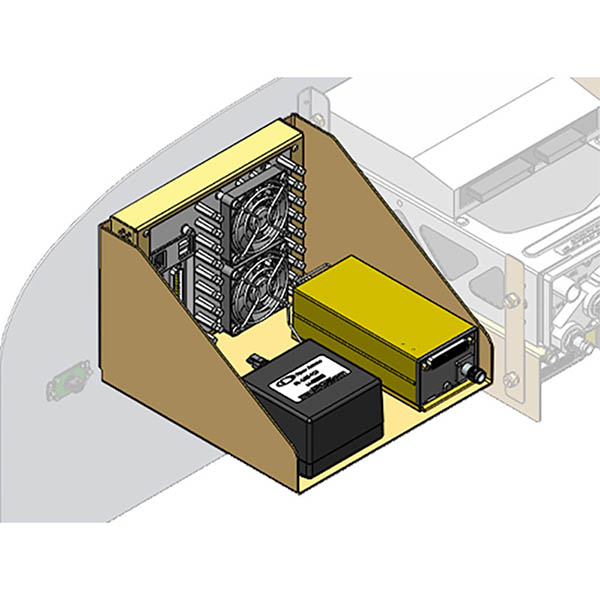

This gold alodined aluminum tray is mounted permanently to the forward side of the instrument panel, and provides nutplates for a quick and simple method for fastening the SV-HDX800 Display unit, the SV-BAT-320 Backup Battery, along with one of either the SV-COM-T8 COM Transceiver, or the SV-XPNDR-261 Transponder.

Maintenance access is also quick and easy, as these modules are easily accessible through the display unit’s instrument panel opening after the display is removed.

Features

  • Compatible with SkyView HDX only. Not compatible with SkyView Classic, Touch, or SE.
