Falcon Gauge Pitot Tube Mounting Bracket

$129.75/Each
Quantity
Add to Wishlist
Part# 10-01063
MFR Model# 30-PT1000

Overview

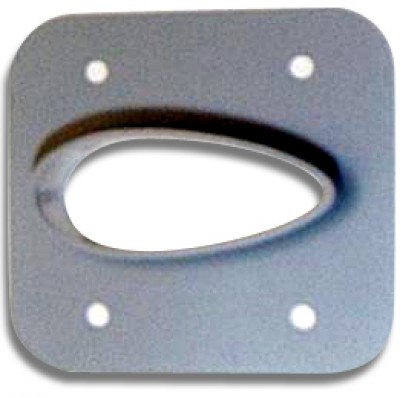

This Falcon Gauge Mounting Bracket for Pitot Tubes works with heated and non-heated tubes.

Material: Aluminum Alloy

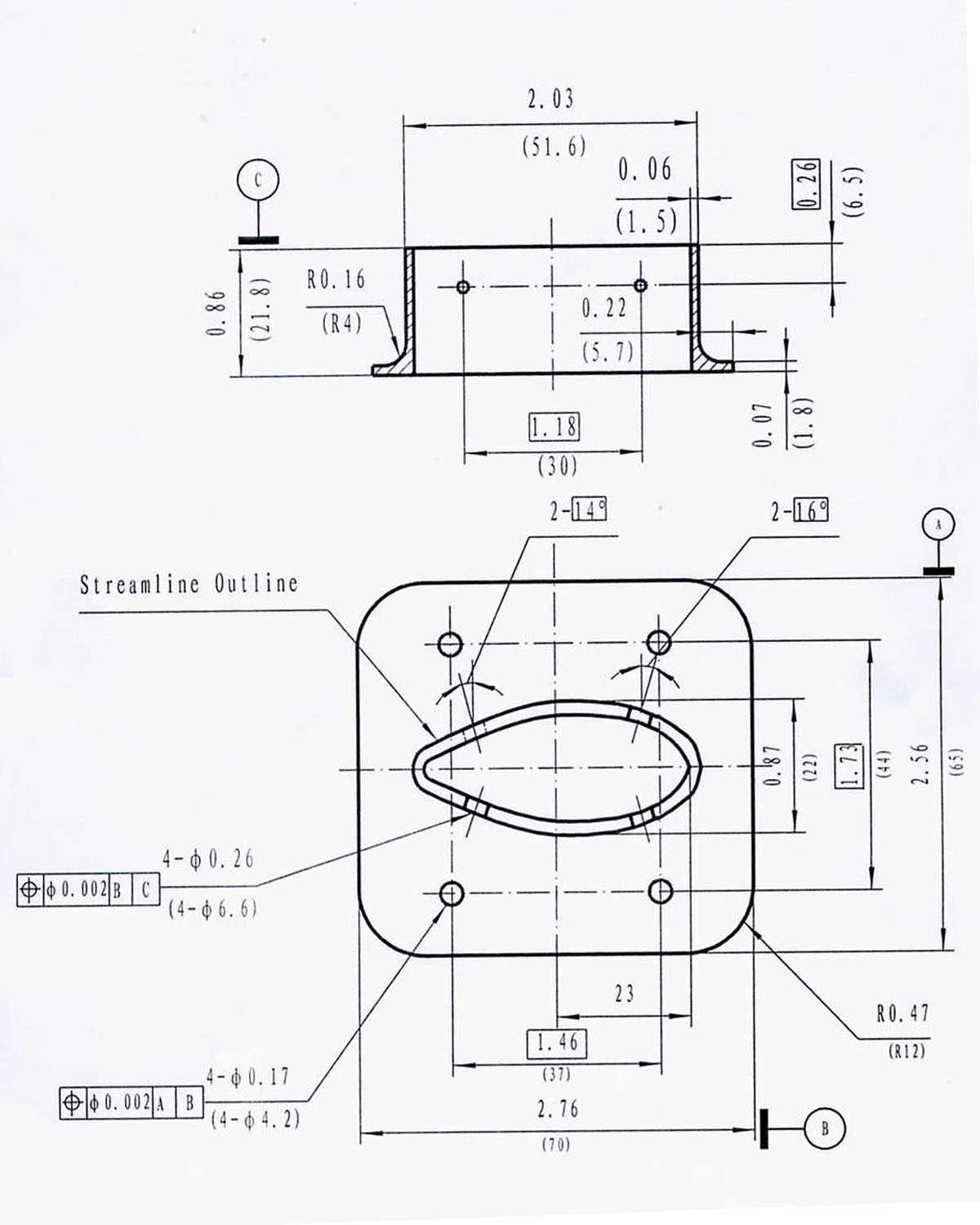

Diagram

Reviews

Jiř I Verified Purchase

Falcon 30-PT1000 Mount Bracket

February 26, 2022

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the dimensions of this Falcon pitot tube mounting bracket?

The approximate dimensions of the plate are as follows: 2-3/4" L x 2-9/16" W.
The approximate dimensions of the center protrusion are: 2" L x 7/8" W x 7/8" H.

Q: What are is the distance between centers of the holes in each direction?

A diagram is provided on this page via the diagram tab.

Q: Does the Garmin GAP-26 pitot tube fit in this mount?

Yes, Falcon pitot tube mount fits the GAP-26 pito-tube perfectly.
