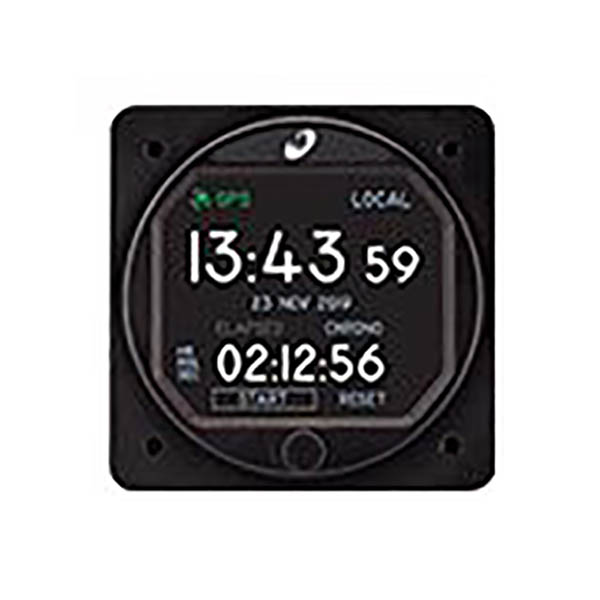

Overview

Features

• 9 Functions Local Time, UTC/Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Date, Time to Waypoint, Hobbs, Run Timer
• Receives ARINC 429 input to sync with a GPS source
• Maintains accuracy, even if GPS input is unavailable
• Outputs time to external equipment and provides Estimated Time (ET) to your next waypoint
• Clock settings include 12- or 24-hour mode and seconds ON or OFF
• Standard 2-inch size
• Lightweight — 0.4 lbs
• Simple user interface — Single, push-and-turn control knob
• Daylight readable LCD and smooth, high-resolution graphics
• Manual external lighting control or built-in photocell for automatic dimming
• Night Vision Imaging System (NVIS) compatible (available)
• Field-upgradeable software via standard USB-A port
• TSO-certified (Design Assurance Level A)
• Designed and built in Wichita, Kansas, USA
• Two-year limited warranty

Specifications

• Power Input:
• 10–32 VDC
• 0.14A @ 28 VDC; 4 watts nominal
• Data Input: ARINC 429: Low or high speed; Labels 150, 252
• Data Output: ARINC 429: Low or high speed; Label 150
• Lighting: 5, 14, or 28 VDC external control or internal photocell for automatic dimming
• Battery: Rechargeable coin cell (memory only)
• Weight: 0.4 lbs (0.17 kg)
• Mounting: Rear panel mounted, (4) #6–32 screws, 2.25-inch round bezel
• Dimensions: 2.43 x 2.43 x 1.0 inches (61.7 x 61.7 x 25.4 millimeters)
• Mating Connector: MCIA P/N 9019162-1: 26-pin, D-Sub electrical connector (Quick Disconnect)
• Certification:
• FAA TSO certified to C113b
• RTCA DO-160G qualified
• RTCA DO-178C qualified, Design Assurance Level (DAL) A
• Rights: U.S. Patent 11,048,389
