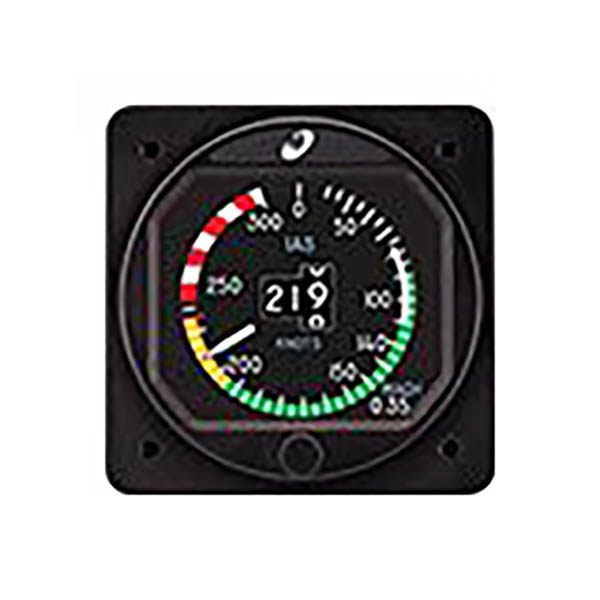

Mid-Continent Flex MD23-225 Digital Airspeed Indicator Configurable LCD

0 Reviews 0 Answered Questions
$6904.00/Each
Quantity
Add to Wishlist
Part# 10-07608
MFR Model# MD23-225

Overview

Note: Configurable range markings eliminate the extra time and cost of mechanical range markings

Digital Airspeed Indicator 2-inch, 160, 200, 300, 400 or 500 knots/MPH (configurable), LCD

Features

  • Configurable range up to 500 knots (or MPH), range markings and dynamic MMO barber pole indicator
  • User-selectable Mach number display ON/OFF
  • Ground Speed and True Air Speed indication via ARINC 429
  • Standard 2-inch size
  • Lightweight — 0.4 lbs
  • Simple user interface — Single, push-and-turn control knob
  • Daylight readable LCD and smooth, high-resolution graphics
  • Manual external lighting control or built-in photocell for automatic dimming
  • Night Vision Imaging System (NVIS) compatible (available)
  • TSO certified (Design Assurance Level A)
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty

Specifications

  • Power Input: 10–32 VDC
  • 0.14A @ 28 VDC; 4 watts nominal
  • Data Input: ARINC 429: Low or high speed; Labels 210, 312
  • Pressure: Absolute/static and differential/pitot (Quick Disconnect)
  • Data Output: ARINC 429: Low or high speed; Labels 205, 206
  • Operating Range: Configurable range of 160, 200, 300, 400 or 500 knots
  • Units of Measure: Knots or miles per hour (MPH)
  • Lighting: 5, 14, or 28 VDC external control or internal photocell dimming
  • Weight: 0.4 lbs (0.17 kg)
  • Mounting: Rear panel mounted, (4) #6–32 screws, 2.25-inch round bezel
  • Dimensions: 2.43 x 2.43 x 1.0 inches (61.7 x 61.7 x 25.4 millimeters)
  • Mating Connector: P/N 9019162-1: 26-pin, D-Sub electrical connector (Quick Disconnect)
  • P/N 9019162-2: Pneumatic fittings (Quick Disconnect)
  • Certification: FAA TSO certified to C2d, C106, C113b
  • RTCA DO-160G qualified
  • RTCA DO-178C qualified, Design Assurance Level (DAL) A
  • Rights: U.S. Patent 11,048,389
