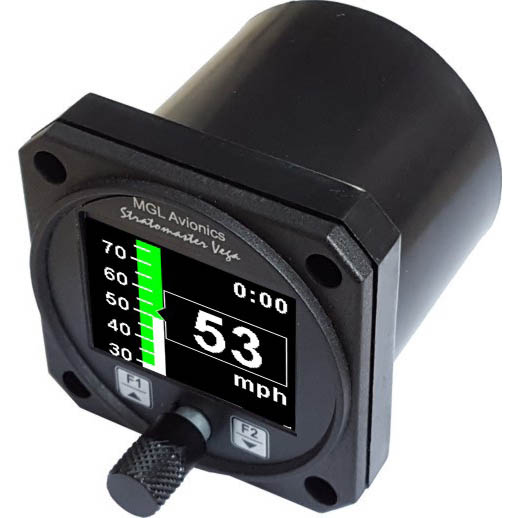

MGL Vega Asi-4 Asi Color Indicator
MFR Model# ASI-4
Overview
|
The ASI-4 for Experimental / LSA aircraft is a 2 1/4” sunlight readable instrument that provides a wide range airspeed indication in both digital and analog tape formats. Airspeed is based on the pressure generated by a pitot tube system and a static port is provided as well for use in high speed aircraft. In addition, the ASI-4 provides a flight timer since takeoff and records the maximum airspeed reached. Airspeed can be indicated in statute miles per hour (mph), kilometers per hour (km/h) or knots (kts). The analog airspeed tape can be scaled according to the aircraft’s flying speed range and ranges for Vs0, Vs1, Vfe, Vno and Vne can be set. The ASI-4 also provides a programmable Vs and Vne airspeed alarm output. ASI sensitivity can be calibrated by the user to cater for errors caused by pitot tube placement. The ASI-4 instrument measures airspeed from 16mph to 250mph and is well suited to slower aircraft due to very good sensitivity and linearity at low air speeds. |
Features
- Measures airspeed from 16mph to 250mph and is well suited to slow aircraft due to very good sensitivity and linearity at low air speeds
- Includes a flight timer since takeoff
- Airspeed units can be set to miles per hour (mph), kilometer per hour (km/h) or knots (kts)
- Analog tape with programmable ranges for Vs0, Vs1, Vfe, Vno and Vne
- Contains a programmable Vs and Vne airspeed alarm output
- Records maximum airspeed reached in permanent memory
Documents
Reviews
Very impressed with instrument. Replaced analog 2.25 inaccurate unit. Accurate and steady.
Verified Purchase
MGL Stratomaster Vega 2-1/4 Airspeed Indicator Color Indicator
The unit seemed at first to be a little pricey but I wanted a digital readout on a 2 1/4 unit. Am very pleased with the readability of the screen and the accuracy as gauged by mimicking the airspeeds seen on the analog ASI. Highly recommend the unit and the service supplied by Aircraft Spruce.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The instrument by itself weighs 120 grams or 0.265 lbs.
