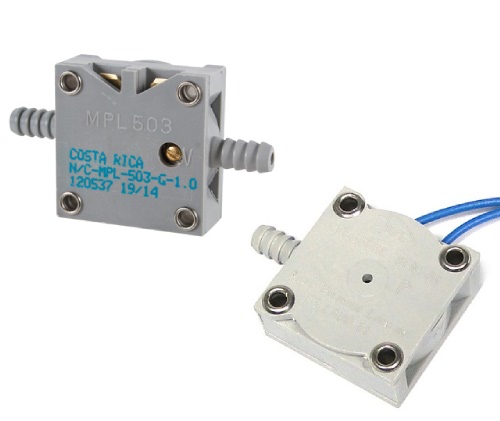

Mpl 503 Air Pressure Switches

From $69.75 to $75.75
Description PN Price Buy
MPL503E Air Pressure Switch
Adjustable: 40-100" of H2O
11-02379
$69.75
Quantity
MPL503DO Air Pressure Switch
Normally Open Setting
11-13476
$71.75
Quantity
MPL503DC Air Pressure Switch
Normally Closed Setting
11-13477
$75.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

MPL 503 Series pressure switches sensitive inches/H 2 O or Knots.

Accuracy and reliability offer the designer an excellent general purpose low pressure to electric interface for monitoring and control applications.
The miniature size make the 503 Series ideal for OEM applications.

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

This product is not suitable for pitot pressure switch. Item was bench tested and adjusted to switch at 60 Kts. I came back to the bench later and the switch had closed without pressure applied. On further testing, the same result occurred repeatedly.

Bob B Verified Purchase

Air Pressure Switch Mpl-503-V-G Range E Adjustable

October 13, 2023

Product information didnt advise hose size and packaging didnt provide instructions as to use. I must have picked the correct pressure port because it works as expected.

James E Verified Purchase

Mpl 503 Air Pressure Switch Range B

May 18, 2023

Thiebaud M Verified Purchase

Mpl 503 Air Pressure Switch Range B

March 19, 2023

Replaced failed switch you sold.You were a shipping bandit on this 1 oz. part. Almost 10.00 reg. Mail.

Don M
September 5, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: At what airspeeds is this MPL 503 air pressure switch adjustable PN 11-13477?

The pressure switch is normally closed at 120-125 knots.

Q: What is the activation pressure (inches of water) for 11-13476 (MPL 503DO) ?

Per the overview, MPL 503 Series pressure sensor switch activates at 42 knots.

Q: Is the MPL 503E, P/N 11-02379, a normally closed, or normally open switch?

Part # 11-13477 is normally closed.
