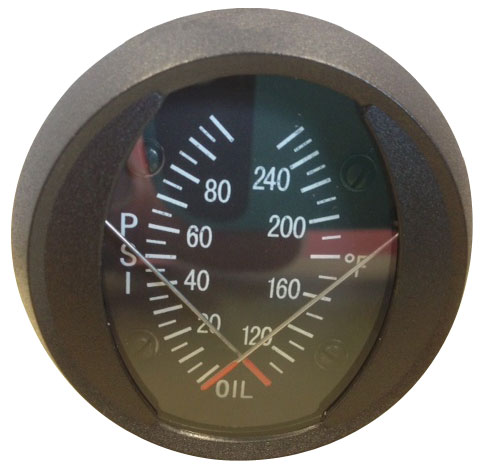

Swift Gauge Dual 2" round Oil Pressure / Oil Temperature Gauge. Size: 2" round Made in China |
Great product but instructions should be improved to provide better instructions for wire connections and applicability of different senders.
Swift 2 Dual Oil Temperature 120-300F 100PSI
The back has round, slick terminals about 1/8” diameter. The furnished pigtails have the spring fit terminals, but the wire colors do not match the diagram and are about 1.5’ long. Nonstandard terminals with short pigtails pretty much mandates splices. Have not started up yet.
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, 2" is the size of the bezel, the unit is mounted from the back. This will not fit in a standard 2 1/4" instrument hole.
The Oil pressure sender part number 10-04057 is 1/8" NPT thread, please check your maintenance manual for the exact oil pressure port size. The oil temp gauge part number 10-05840 is specifically for Continental engines and will be a direct fit.
No, the senders are not included. They can be found in the Accessories tab on the web page. Falcon gauges are not FAA Approved. They are intended for use in experimental aircraft only.
No, it does not have a light.
Please review the installation guide for the proper size hole and application.
Yes, this unit has a 8-30 VDC range.
