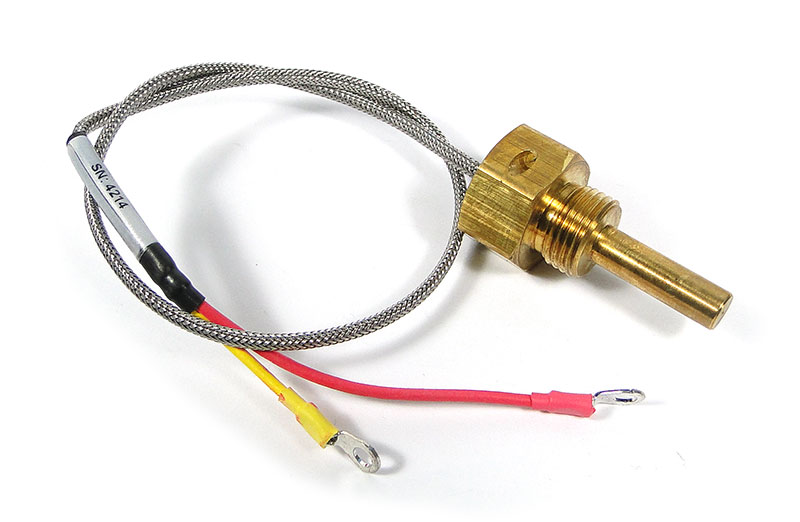

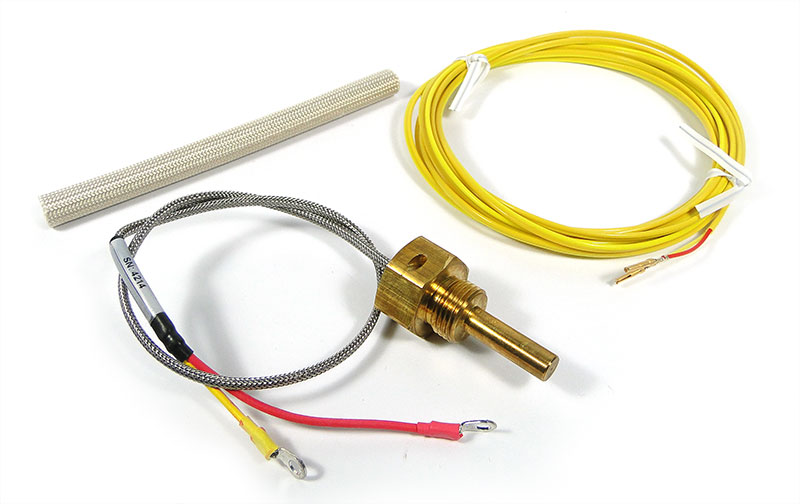

Probe PN 400509 is a complete assembly using type K thermocouple wire (red/yellow). The sensor port is a standard 5/8-18 thread for both the Continental and Lycoming engines. Connect the wire marked oil temperature observing polarity. Wire length has no effect on the readings. Oil temperature will be displayed as an independent temperature digital and bar-graph. |
Had to return this probe, the only place for it was to replace the original temp gage probe. I reordered the 1/4 in probe.
J.P. Instruments Oil Temperature Probe 400509 5/8-18
This JPI EDM 350 was easy to install. The directions and manual were easy to understand. Every wire was clearly labeled.I needed to change to this K type on my engine, and it too went in easy.
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The wire lead is approximately 10 ft long.
Approx 1 inch length for the probe portion.
Per JPI P/N 11-09614 has no true temp range. With a 1 Ohmn reading
