Home / Instruments / Directional Gyros / RC Allen /RC Allen 15 Series Directional Indicator Ak (14V)
Main Image

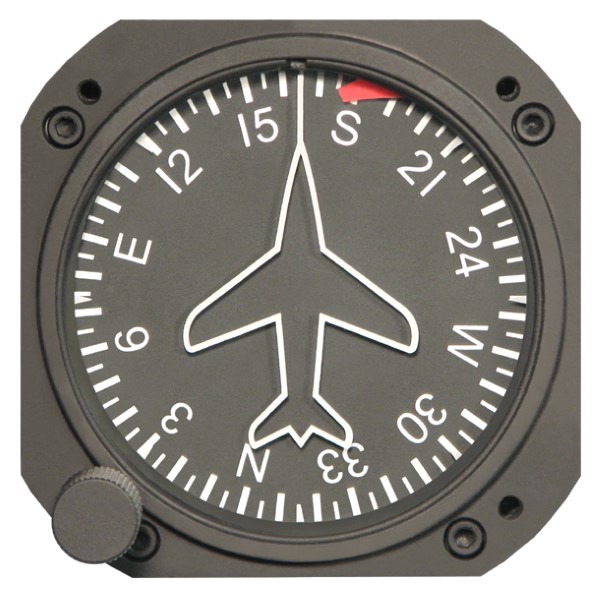

RC Allen 15 Series Directional Indicator Ak (14V)

0 Reviews 1 Answered Question
From $3322.00 to $3617.00
Main Image
Model No. Description Part No. Price Buy
RCA15AK-114 VDC, Lighted
Connector Pin out:
A: Ground Motor
B: +14 VDC Motor
C: Ground Lights
D: +14 VDC Lights
10-01681
$3617.00
Quantity
RCA15AK-214 VDC
Connector Pin out:
A: Ground Motor
B: +14 VDC Motor
C: Spare
D: Spare
10-01390
$3322.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Note: Mating connector MS3116E8-4S not included. See Accessories to order separately.

for The RCA15 Series electric directional gyro employs and electrically driven gyro motor and is a direct reading, azimuth indicator. Rotor run up time is 3 min. They have a built in inverter which converts aircraft DC power to the required AC voltage and frequency. May be used in both fixed wing and rotor wing aircraft and is easily installed in standard 3 1/8" panel cut out. Power failure flag drops into view when supply voltage is lost or has dropped below a level for proper operation of the gyro. Azimuth indication range 360°. Altitude operation 1,000 to 40,000 feet. Internal 3 phase inverter produces high starting torque and increases gyro roto speed. Internal lighting provides even light distribution at any intensity level. calibrated to an accuracy of 3° maximum drift error after 10 minutes of ±1.5° scorsby motion.

Meets or exceeds all requirements of FAA TSO C5c and Aeronautical Standard AS397.
Made in the USA

Electrical Requirements

  • Starting Current @ 14 VDC: 2.4A Max
  • Running Current @ 14 VDC: 1.2A
  • Starting Current @ 28 VDC:; 1.4A Max
  • Running Current @28 VDC .6A
  • Reccomended Circuit Breaker 3A

Dimensions

  • Length: 6.7"
  • Width; 3.4"
  • Height: 3.4"
  • Weight; 2.3 pounds
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What could I use if I have 28VDC battery? Can I use this one or you have some recommendations?

Please view part # 10-01682 or 10-00501 for the 28 volt version.
