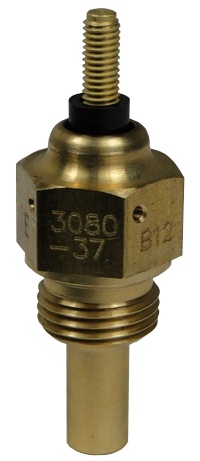

Rochester 3080-37 Oil Temp Probe 5/8-18 Nf3 100-250F
MFR Model# 3080-00037
- JUMP TO
- Overview
- Accessories
- Reviews
- Q&A
- View in Catalog
Overview
|
Electrical sender (Probe) 3080-37 for cluster-type instrument. 5/8"-18, 10/32 Thread Resistance (Ohms) Note: Used 177-18 Thermistor curve “E”
150°F =179Ω 200°F =72Ω 250°F =34Ω |
Reviews
Perfect replacement for a bonanza with continental E225-8 and old ac delco gauge cluster. FYI, it comes with the gasket ring.
Verified Purchase
Rochester 3080-37 Replacement Oil Temperature Probe 5/8 -18 Thread
Everything was Right and I’m satisfied with the probe.
Verified Purchase
Rochester 3080-37 Replacement Oil Temperature Probe 5/8 -18 Thread
Verified Purchase
Rochester 3080-37 Replacement Oil Temperature Probe 5/8 -18 Thread
With the Help on Nick Wood, the part was located and has been installed in a 1979 Piper 6cyl I0-540 and flown to check. Appears to work normal. Thanks for the help.
Verified Purchase
Rochester 3080-37 Replacement Oil Temperature Probe 5/8 -18 Thread
Great Service
Verified Purchase
Rochester 3080-37 Replacement Oil Temperature Probe 5/8 -18 Thread
Part fit and worked perfect, thank you for the tech support. Robert
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Ohms vary by temperature. Please see the "Specifications" tab on this web page for the Ohms breakdown by temperature.
The Rochester 3080-37 oil temp probe does come with the washer, nut and gasket.
Power is not connected to the Rochester oil temperature probe (3080-37) and therefore the voltage of your system is not a factor.
This unit does not come with FAA/PMA approval, but is the same make and model, and used for the same engine applications in experimental aircraft.
Per the manufacturer, there is no cross reference of this part to S2334-4, only to Cessna S32335-1.
Dynon recommends using Dynon probes with their EFIS systems.
Approx 1/2 inch.
Yes, the threaded end rotates on part # 3080-37.
Technically it should work but it would not come with the required documentation. Please consult with your A&P to determine if these could be legally installed in your aircraft.
Yes, this should be compatible with that engine.
