Skysports Electric Attitude Gyro

$2452.00/Each
Quantity
Add to Wishlist
Part# 10-05422
MFR Model# GH025

Overview

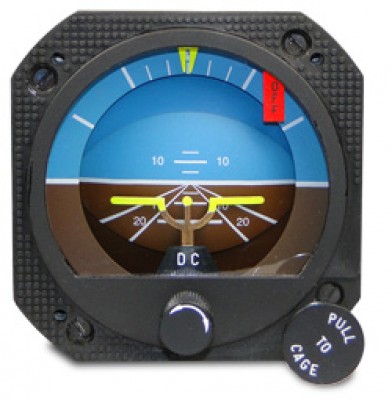

The Skysports Electric Attitude Gyro is a high quality gyro which is excellent for a wide variety of experimental aircraft. It features a power failure flag which drops into view if voltage is below operational requirements. It also includes a "Pull to CageA" knob.

Non-TSO'd.

Power Supply: 14V
Dimension: 3-3/8" x 6.46/164mm
Weight: 2.4lb/ 984g


Note: Does not include connector. See Accessories to order connector.

Performance

  • Working range: Banking 360°, Pitching ± 70°
  • Accuracy: The indicating error is not more than ± 1°
  • It will work normally when operation voltage is inputted 3min. and rotor stars
  • and works when 80% operating voltage is below 80% of the rated volt
  • Operating current is not more than 0.8A.
  • Reference mark should be adjusted in the range of not less than ± 5°
  • The Gyro can return to zero point from any point and lock-in.
  • The insulating resistance between the case is not less than 20M

Specifications

  • Operating voltage: 14 ± 10% V DC
  • Ambient Temperature: -40 ~ +50°C
  • Relative Humidity: It can reach 95% at 20 ± 5°C
  • Vibration Strength: not more than 1.5g
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is there any installation documentation available on this SkySports unit?

No, unfortunately there is no install manual as these are for experimental aircraft only.

Q: Does the Skysports Electric Attitude Gyro come in a 8 degree panel version?

For a comparable 8 degree tilt electric attitude gyro, please see part number 10-04673.

Q: Does this Skysports attitude gyro just need a power source? No other inputs?

This unit does not have any vacuum inputs and only needs to be connected to a electrical power source.
