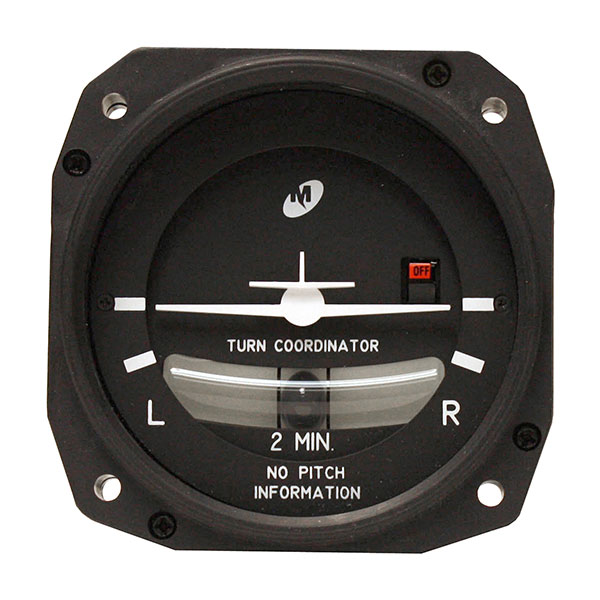

Mid-Continent Turn Coordinators - 3 Inch

From $2016.00 to $3718.00
Model Number Description Part Number Price Buy
1394T100-3B11–32V, Lighted bezel, 28V, Brushless - Low Wing
10-01024
$2347.00
Quantity
1394T100-3B11–32V, Lighted bezel, 14V, Brushless - Low Wing
10-01025
$2379.00
Quantity
1394T100-7B11–32V, Brushless - Low Wing
10-02108
$2016.00
Quantity
1394T100-14RB11–32V, Autopilot, S-TEC, Lighted, Brushless - Low Wing
10-04022
$3718.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Engineered for a long service life, the “B” model turn coordinator features a proven AC rotor powered by a solid-state inverter, creating less heat behind the panel. Utilizing a brushless rotor design, this instrument has top industry ratings of 4,800 hours MTBF. It is ideal for use in high performance aircraft and cold-climate applications.

All 3-inch turn coordinators operate from 10–32 volts DC for convenience and reliability.

Specifications

  • Input Voltage Range VDC: 11 – 32
  • Rotor Type: AC
  • Power Consumption Nominal: 0.28 A
  • Dimensions: 3 1/4" x 3 1/4" x 5"
  • Maximum Weight: 1.4 lbs.
  • Turn Indication: Standard 2–Minute Turn
  • Operating Temperature: –30°C to + 50°C
  • Operating Altitude: –1,000 ft. to 35,000 ft.
  • Glass: HEA non-glare
  • Mounting: 3 1/8" front or rear panel
  • FAA TSO certified to C3b
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Very quiet. OFF flag is dependent on rotor speed, not power application... be prepared for a short wait until the rotor spins up and the flag disappears.

Frank G Verified Purchase

Mid-Continent Instruments and Avionics Turn Coordinator 11-32V Lit 14V 3P Brushless 1394T100-3B

April 9, 2024

Great!

Paul Z Verified Purchase

Mid-Continent Instruments and Avionics Turn Coordinator 12-32V 3P Black Brushless 1394T100-7B

September 30, 2023

Petr H Verified Purchase

Mid-Continent Instruments and Avionics Turn Coordinator 12-32V 3P Black Brushless 1394T100-7B

May 2, 2023

Works fine, just wish in the specs. they would tell you it is made in China, I would have looked elsewhere

Ken K Verified Purchase

Mid-Continent Instruments and Avionics Turn Coordinator 12-32V 3P Black Brushless 1394T100-7B

March 21, 2023

awesome product at a great price. very fast shipping. Love your company.

Michael Verified Purchase

Mid-Continent Instruments and Avionics Turn Coordinator 12-32V 3P Black Brushless 1394T100-7B

September 26, 2022

We have purchased 11 of these since 2/2021 to replace our EGC turn coordinators. No problems at all. Planning on purchasing 9 more for the rest of the fleet.

Long B Verified Purchase

Mid-Continent Instruments and Avionics Turn Coordinator 12-32V 3P Black Brushless 1394T100-7B

September 5, 2022

Unfortunately I’ve to send it back. During run-up the red flag came out…let’s say few minutes of use! Pity the Rc.Allen I had formed just fine for 22 years! Boring I’ve to dismantle and send it back! AT

Andrea L Verified Purchase

Mid-Continent Instruments and Avionics Turn Coordinator 11-32V Lit 14V 3P Brushless 1394T100-3B

March 23, 2022

Works as planned.

Unique E Verified Purchase

Mid-Continent Instruments and Avionics Turn Coordinator 12-32V 3P Black Brushless 1394T100-7B

January 22, 2022

Works great. The few spool up delay was disconcerting at first, but OK after getting used to it.

Robert E Verified Purchase

Mid-Continent Instruments and Avionics Turn Coordinator 12-32V 3P Black Brushless 1394T100-7B

June 22, 2021

Worked well. For the little price difference from other brands that are not TSO. This unit is built well and accurate.

Jared C
December 17, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I just purchased this model turn coordinator... what is the part number for the required cannon plug?

Part # 10-00789 and the backshell for that is part # 11-04969?

Q: Do these Mid Continent turn coordinators, specifically 1394T100-7B, include the EASA or 8130 form?

No, there are no forms included in the box. They can be furnished with 8130-3 forms, but it must be added at time of order. Additional charges will apply.

Q: Are these Mid Continent turn coordinators New Outright?

Yes, these turn coordinators are new, outright.

Q: Is this instrument (1394T100) approved for certified planes? By what method?

Yes, this is approved via FAA TSO.

Q: Do we have to buy cables separately to plug it?

Per the manufacturer, this is only the turn coordinator. The cables are sold separately.
