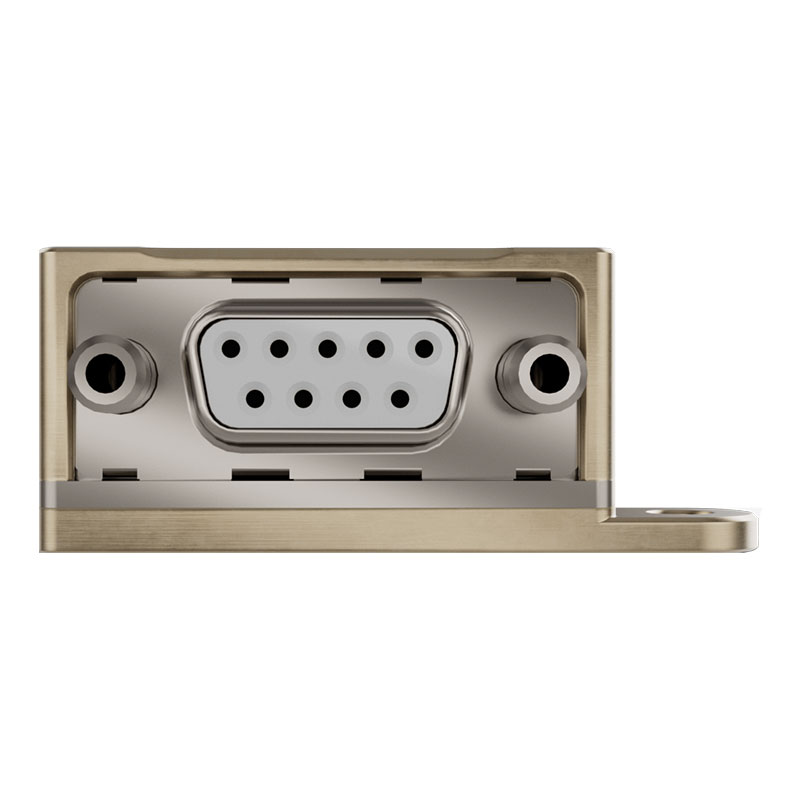

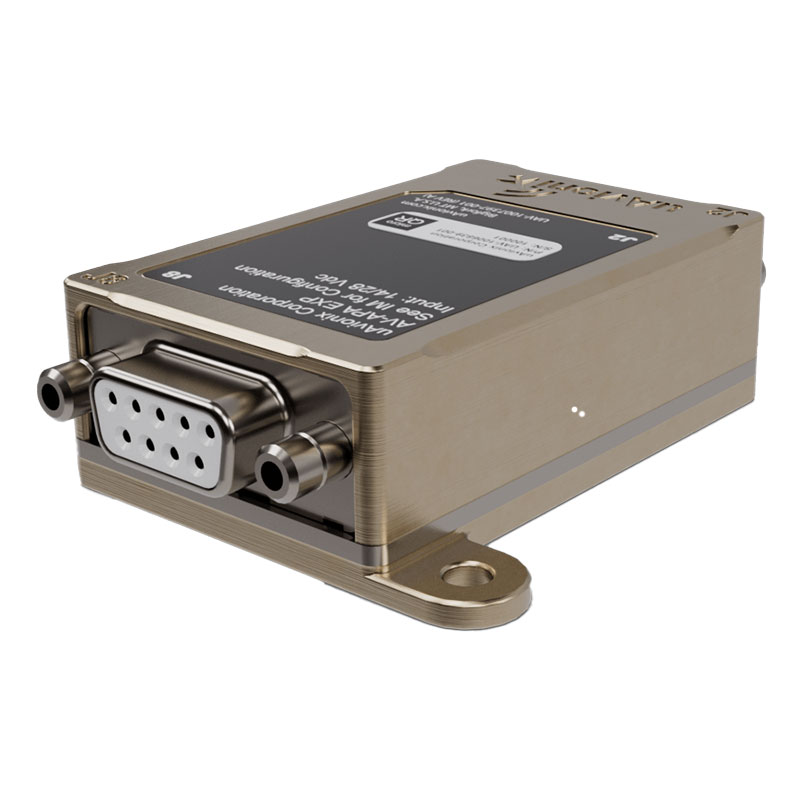

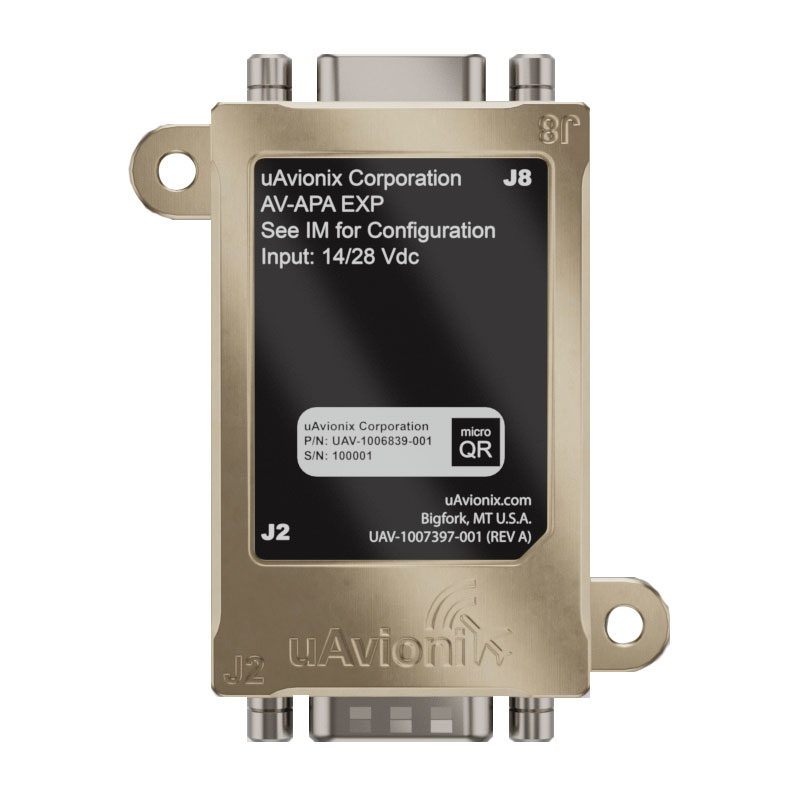

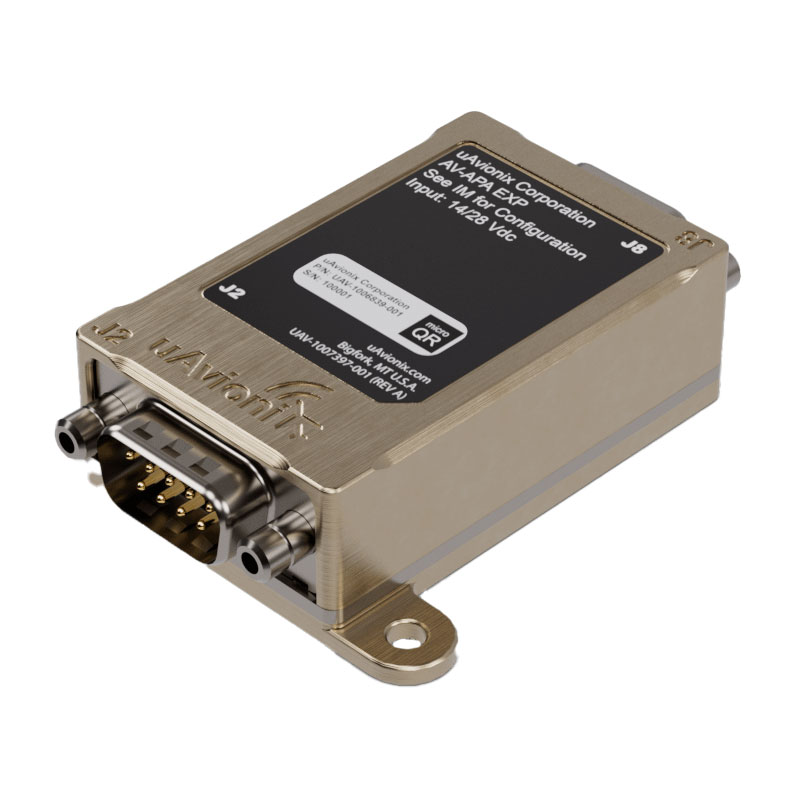

uAvionix AV-APA Experimental Analog Port Adapter for Legacy Autopilots

0 Reviews 0 Answered Questions
$804.00/Each
Quantity
Add to Wishlist
Part# 11-20187
MFR Model# UAX-90102-01

Overview

The AV-APA (analog port adapter) accessory enables aircraft owners with legacy autopilots to replace their old, heavy, vacuum-driven directional gyro with a more capable, lighter, digital AV-30 and potentially remove their vacuum system entirely.

The AV-APA emulates the analog heading signal used by legacy autopilots to provide heading hold as well as the ability to follow GPS tracks from a portable or IFR GPS.

Features

  • Supported Modes include: GPS Desired Track, GPS Track Hold, GPS Bearing, GPS Steering (GPSS*)
  • Supported Autopilots include: S-TEC Systems 20/30/40/50
  • AV-APA Installation Kit includes connectors, connector housings, and pins
  • New modes and supported autopilots coming soon
  • *Available when installed with AV-HSI and associated software unlock.

Specifications

  • Input Voltage Nominal: +10 to +32 VDC
  • Input Voltage Max: +60 VDC
  • Input Power Nominal: 6 Watts (0.5 Amps @ 12VDC)
  • Input Power Max: 12 Watts (1.0 Amps @ 12VDC)
  • Required Circuit Breaker: 2 Amp
  • Operation on Battery: 2 Hours Typ @ 20°C / 30 Minutes Min @ -20C

  • Physical Attributes
    • Mounting Configuration: 3 1/8” Round Instrument Hole
    • Dimensions wo/Connector: 3.38 x 3.38 x 1.6 Inches
    • Weight: 0.50 Lbs.
    • Electrical Connector: 15 Pin Male D-Sub
    • Pneumatic Connectors: ¼” OD Quick Connect
    • Mounting: (4X) #6-32 Machine Screws
    • Case Material: Billet Aluminum
  • Environmental
    • Operating Temp: -20°C to +55°C
    • Storage Temp (48 Hrs): -30°C to +80°C
    • Humidity (48 Hrs): 90% RH
  • Display
    • Diagonal Size: 3” Circular
    • Contrast Ratio (Typical): 500
    • Brightness (Typical): 1000 cd/m2
    • Viewing Angle Left/Right:60°
    • Viewing Angle Up: 45°
    • Viewing Angle Down: 10°
    • Backlight Lifetime (Typical): 50,000 Hrs
