Overview

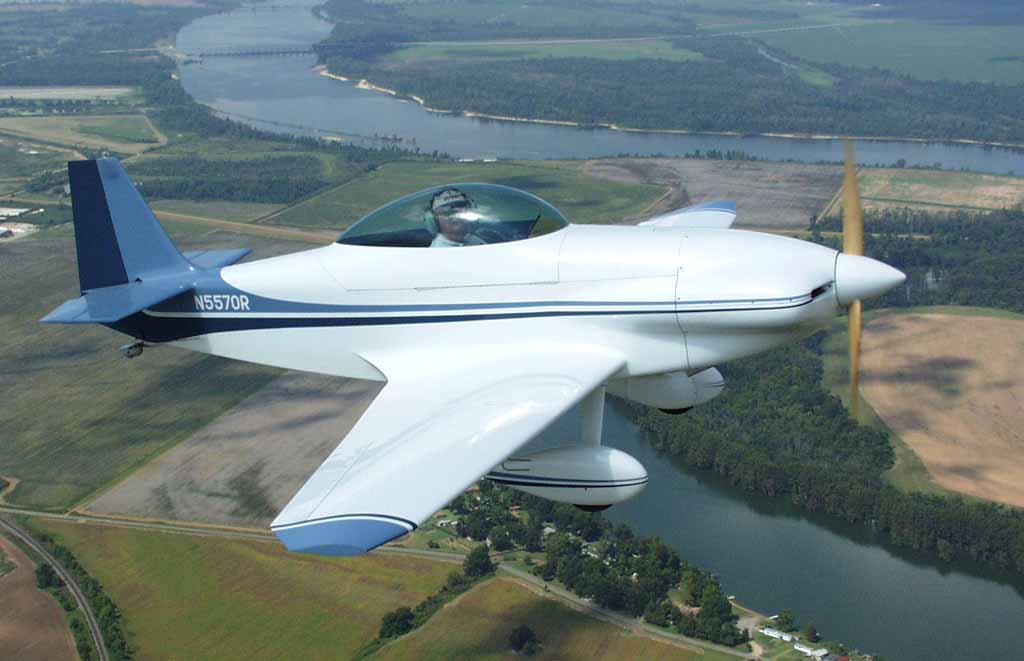

The KR-1 (single place) was designed in the early 1970's by the late Ken Rand. This popular aircraft combine composite and wood construction to produce fast, efficient aircraft that remain good sellers year after year. The KR-1 is a single seat low wing aircraft which can be powered by a certified or auto conversion engine. It is typically powered by smaller VW engines, up to the 2100cc. As with all KR's, the KR-1 is equipped with removable wings, and your choice of fixed conventional, or tricycle gear.


For more information Contact:
NV AERO AEROSPACE, LLC
23052H Alicia Parkway #413,
Mission Viejo, CA 92692
Phone: (800) 515-4811
Fax: (888) 829-3502
Email: info@nvaero.com

Specifications

  • Kit Price w/o Engine: ~$5500
  • Plans Price: $115
  • Number fo Seats: 1
  • Building Materials: W,C,FG
  • Building Time: ~1000 HRS
  • Standard Engine: VW 2100CC/80 HP
  • Horsepower: 60-80 HP
  • Wing Span: 17 Ft.
  • Wing Area: 62 Sq. Ft.
  • Empty Weight: 793-878 Lbs.
  • Gross Weight: 1370 Lbs.
  • Takeoff Distance: 590 Ft.
  • Landing Distance: 600 Ft.
  • Cruise Speed: 161 MPH
  • Top Speed: 200 MPH
  • Fuel Capacity: 18 Gal.
  • Range: 663 Miles
    • Frequently Purchased With
    • Customers Also Viewed

    Reviews

    Q&A

    Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

    Q: Does the KR-1 have fixed or retractable gear?

    The KR-1 gear is the builder's choice of fixed conventional, or tricycle gear.
