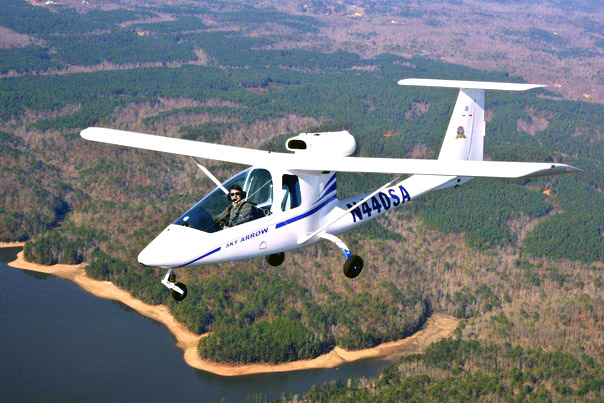

Sky Arrow


The Sleek and stylish, designed and manufactured in Italy, the Sky Arrow aircraft is definitely unique and distinctive. From recreational flying to observation or sensor-equipped aerial work, its high wing, pushing configuration with a wrap-around canopy and a roomy, super-comfortable tandem seating allows for the widest range of utilizations.
Come and find the version that suits your needs.



Specifications:
  • Kit Price w/o Engine: N/A
  • Plans Price: N/A
  • Number of Seats: 2, tanden configuration
  • Building Materials: C
  • Building Time: ~500 HRS
  • Standard Engine: ROTAX 912 ULS 98 HP
  • Horsepower: 98 HP
  • Wing Span: 31.5 Ft.
  • Wing Area: 145 Sq. Ft.
  • Empty Weight: 840 Lbs.
  • Gross Weight: 1450 Lbs.
  • Takeoff Distance: 890 Ft.
  • Landing Distance: 660 Ft.
  • Cruise Speed: 124 MPH(108 kts)
  • Top Speed: 152 MPH (132 kts)
  • Fuel Capacity: 29.5 Gals.
  • Range: 600 Miles



Magnaghi Aeronautica S.p.A.
Via Galileo Ferraris
76-80142 Naples Italy
Phone: +390815977111 • Fax: +0815977348
Email: info@skyarrow.it • Website: www.skyarrow.it
