Item No. | Mfg. | Description | PN | Price | Buy |
---|---|---|---|---|---|
2 | 44747 | Brake Handle | 06-01017 | $29.75 | |
3 | 44756 | 1/8" NPT to 1/8" tube compression fitting | 06-01024 | $16.50 | |
4 | 44758 | 1/4" Plug | 06-01026 | $1.15 | |
5 | 44759 | 1/4" NPT Vent Plug | 06-01027 | $8.50 | |
6 | 44761 | Return Spring | 06-01030 | $10.50 | |
7, 10 | 44749 | Master Cylinder O-Ring | 06-01018 | $1.92 | |
8 | 44763 | 1/4"-20 SHCS S.S. | 06-01032 | $1.67 | |
9 | 44762 | Shoulder | 06-01031 | $11.50 | |
11 | 44745 | Master Piston | 06-01016 | $35.50 | |
12 | 44776 | Cup Seal | 06-01038 | $24.50 | |
13 | 44777 | Cup Seal Washer | 06-01039 | $5.60 |

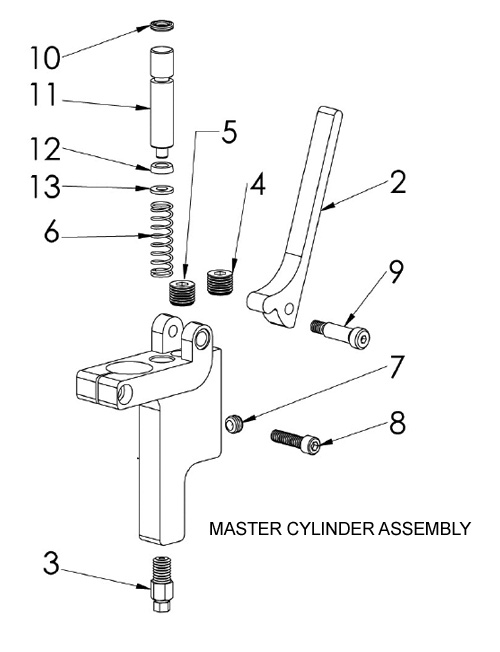

Master Cylinder Assembly Parts |
