Grove Landing Gear

Quantity
Add to Wishlist

Overview

Note: All Grove Aircraft landing gear is
NON-CANCELLABLE/NON-RETURNABLE. Click here to download the
Landing-Gear Layout Sheet in PDF format.
Grove Aircraft can provide a complete custom landing gear, ready to bolt on, designed for your individual airplane.

Axle Types:

Please specify axle bolt hole pattern when ordering
Type 1: Typically used for 500x5 wheels
Type 2: Typically used for 600x6 wheels.

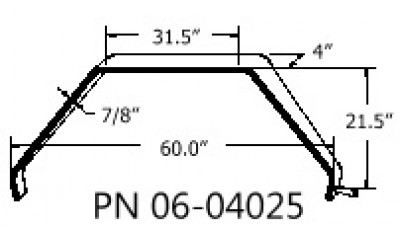

Kitfox Model 3 & 4
Grove P/N 1021-3
Gross Weight: 1200 lbs.
Weight: 24.3 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Includes Gundrilled Brake Line
PN 06-04025

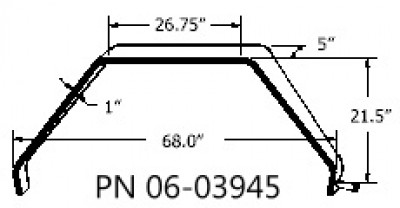

Acro Sport II
Grove P/N 1122-3
Gross Weight: 1550 lbs.
Weight: 34.7 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 2
PN 06-03945

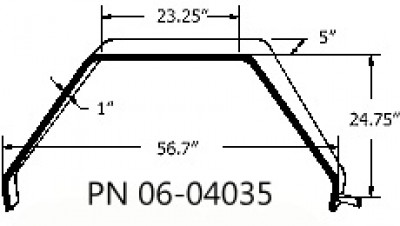

Pitts S1-11B
Grove P/N 1032-3
Gross Weight: 1500 lbs.
Weight: 32.9 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
PN 06-04035

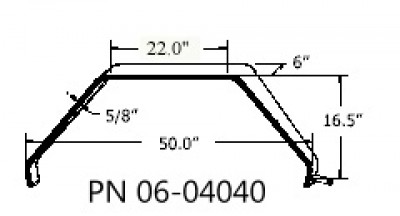

VP-1
(Free Standing No Cables)

Grove P/N 1133-3
Gross Weight: 800 lbs.
Weight: 20.2 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 2
PN 06-04040

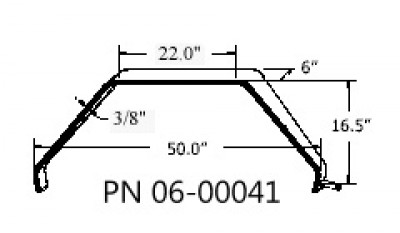

VP-1
(Cable Braced Stock Gear)

Grove P/N 1131-3
Gross Weight: 800 lbs. Weight: 12.5 lbs.
Material: 7075-T6 Aluminum Axle Bolt Hole Pattern: Type 2 Includes Lower Leaf Plates Cables not included
PN 06-00041

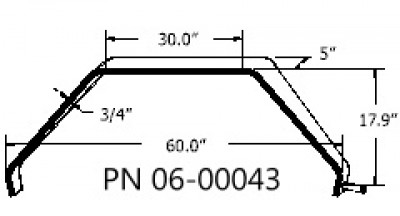

VP-2
(Free Standing No Cables)

Grove P/N 1134-3
Gross Weight: 1100 lbs. Weight: 24.5 lbs.
Material: 7075-T6 Aluminum Axle Bolt Hole Pattern: Type 2
PN 06-00043
Pitts S1
Grove PN: 1031-3
Gross Weight: 1050 lbs.
Weight: 21.0 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1

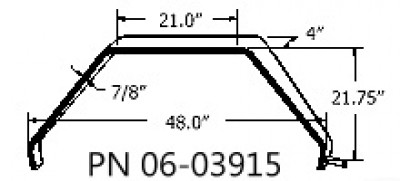

PN 06-03915
Starduster II
Grove PN: 1081-3
Gross Weight: 1950 lbs.
Weight: 46.5 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 2

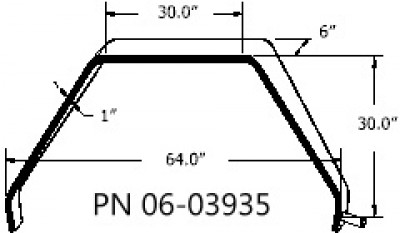

PN 06-03935
Baby Lakes
Grove PN: 1091-3
Gross Weight: 850-900 lbs.
Weight: 16.2 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
PN 06-04070

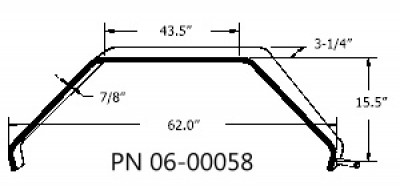

Zenair CH701
Grove PN: 1214-3
Gross Weight: 1060 lbs.
Weight: 18.1 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Various
PN 06-00058

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are the 7075 T-6 Grove landing gear heat treated before or after bending?

These are heat treated after bending.

Q: Reference P/N 06-04025: what hardware is included?

Per Vendor: The kit includes mounting brackets, mounting hardware, axles, and axle hardware.

Q: Does part # 06-00041 come with 3/4 inch axles?

No, axles are not included.

Q: What is included with part# 06-03935?

This just includes the landing gear.

Q: What hardware is included with PN 06-00058?

This is just the gear, no hardware is included.
