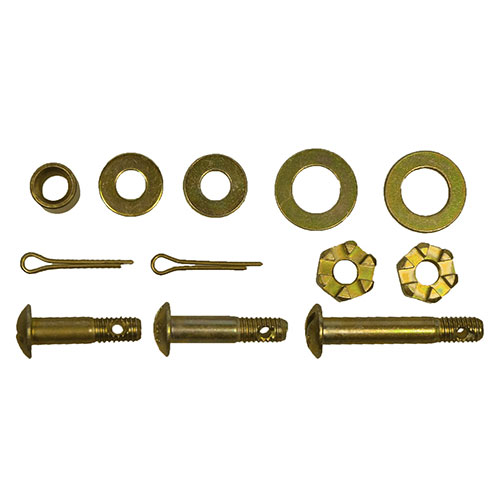

Hardware Kit for Cessna Shimmy Dampener. Includes all nuts, bolts, washers, cotter keys and bushings to attach the shimmy dampener to the nose strut. |
Model | Beginning S/N | Ending S/N |
---|---|---|
150 | 17001 | 59018 |
150A | 15059019 | 15059350 |
150B | 15059351 | 15059700 |
150C | 15059701 | 15060087 |
150D | 15060088 | 15060772 |
150E | 15060773 | 15061532 |
150F | 15061533 | 15064532 |
150G | 15064533 | 15067198 |
150H | 15067199 | 15069308 |
150J | 15069309 | 15071128 |
150K | 15071129 | 15072003 |
150L | 15072004 | 15075781 |
150M | 15075782 | 15079405 |
152 | 15279406 | 15286033 |
172 | 46433 | 46754 |
172A | 46755 | 47746 |
172B | 17247747 | 17248734 |
172C | 17248735 | 17249544 |
172D | 17249545 | 17250572 |
172E | 17250573 | 17251822 |
172F (T-41A) | 17251823 | 17253392 |
172G | 17253393 | 17254892 |
172H (T-41A) | 17254893 | 17256512 |
172I | 17256513 | 17257161 |
172K | 17257162 | 17259223 |
172L | 17259224 | 17260758 |
172M | 17260759 | 17263458 |
172M | 17263459 | 17267584 |
172N | 17267585 | 17274009 |
172P | 17274010 | 17276654 |
172Q | 17275869 | 17276211 |
172R | 17280001 | 17299999 |
172S | 172S8001 | 172S99999 |
175 | 55896 | 56238 |
175A | 56239 | 56777 |
175B | 17556778 | 17557002 |
175C | 17557003 | 17557119 |
182B | 51557 | 52358 |
182C | 52359 | 53007 |
182D | 18253008 | 18253598 |
A-150L | A-1501001 | A-1501039 |
A-A150L | A-A1500001 | A-A1500009 |
A150K | A1500001 | A1500226 |
A150L | A1500227 | A1500523 |
A150M | A1500524 | A1500734 |
A152 | A1520735 | A1521049 |
F150F | F150-0001 | F150-0067 |
F150G | F150-0068 | F150-0219 |
F150H | F150-0220 | F150-0389 |
F150J | F150-0390 | F150-0529 |
F150K | F15000530 | F15000658 |
F150L | F15000659 | F15001143 |
F150M | F15001144 | F15001428 |
F152 | F15201429 | F15201980 |
F172D | F172-0001 | F172-0018 |
F172E | F172-0019 | F172-0085 |
F172F | F172-0086 | F172-0179 |
F172G | F172-0180 | F172-0319 |
F172H | F172-0320 | F172-0654 |
F172H | F17200655 | F17200754 |
F172K | F17200755 | F17200804 |
F172L | F17200805 | F17200904 |
F172M | F17200905 | F17201234 |
F172M | F17201235 | F17201514 |
F172N | F17201515 | F17202039 |
F172P | F17202040 | F17202254 |
FA150K | FA1500001 | FA1500081 |
FA150L | FA1500082 | FA1500120 |
FA150L (with FKA150-2311 and FKA150-2316) | FA1500121 | FA1500261 |
FA150M (with FKA150-2311 and FKA150-2316) | FA1500262 | FA1500336 |
FA152 | FA1520337 | FA1520425 |
FP172 | FP172-0001 | FP172-0003 |
FR172E | FR17200001 | FR17200060 |
FR172F | FR17200061 | FR17200145 |
FR172G | FR17200146 | FR17200225 |
FR172H | FR17200226 | FR17200350 |
FR172J | FR17200351 | FR17200590 |
FR172K | FR17200591 | FR17200675 |
FRA150L | FRA1500121 | FRA1500261 |
FRA150M | FRA1500262 | FRA1500336 |
P172D | P17257120 | P17257188 |
R172K | R1722000 | R1723454 |
I recommend using this kit to replace the old worn hardware. It comes with shims to eliminate play on the dampener attachment. to
SDKT-4 Hardware Kit
SDKT-4 Hardware Kit
SDKT-4 Hardware Kit
SDKT-4 Hardware Kit
Had all the replacement hardware in the kit.
Arrived quickly, excellent quality.
All hardware fit perfectly, a great buy. So much better than the stripped old bolts from constantly removing the shimmy for maintenance. Pairs perfectly with a brand new lord shimmy.
Worked great!!! parts fit perfect.
This kit has the right parts to fix my nose wheel shimmy, especially the mounting bushing. The 56 yr old bushing was very worn. The new bushing just slips into the casting. The wide slots in the nuts make it easy to insert the cotter pins, not like a standard castellated nut.
SDKT-4 Hardware Kit
