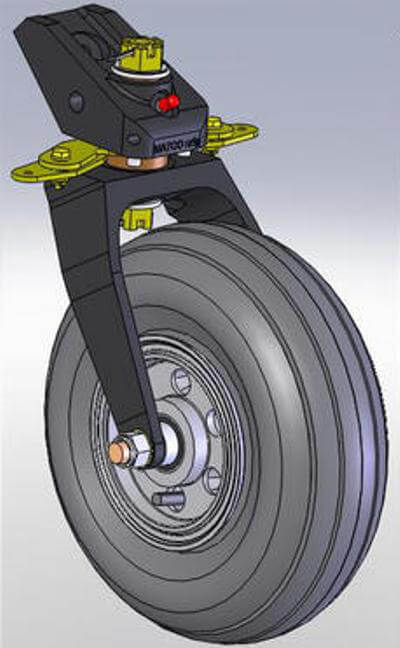

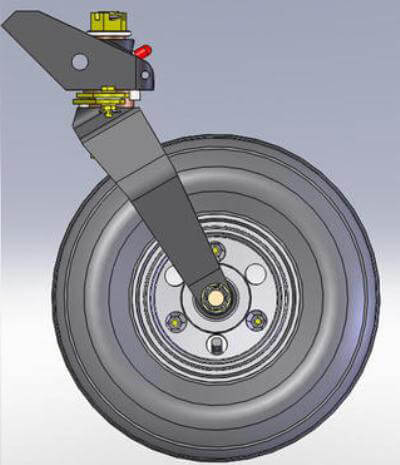

- Photo may represent series and not specific product
- SHARE
Dual Arm Tail Wheel Assembly 10 Inch Pneumatic 400 Load
$1838.00/Each
Part# 06-01781
MFR Model# WHLT-10DXT
MFR Model# WHLT-10DXT
Overview
|
Dual Fork Tail, wheel 10" Pneumatic Tire. This tail wheel utilizes a dual fork configuration and incorporates a geometric release mechanism that allows the wheel to caster after reaching a steered angle of 40 degrees. This wheel has a .625 precision sealed ball bearing which is rigorously tested and designed to resist bearing fatigue providing a long bearing life. The arms and wings of the tail wheel fork assembly are composed of 4130 which is heat treated to a Rockwell 38 - 43 to ensure strength and are irridited to prevent corrosion. The tail wheel base and forks are cast and then black anodized to prevent corrosion as well. The wheel halves are die cast aluminum for light weight and superior strength. This wheel features split rims for ease of mounting and dismounting its 10 x 3.50-4 tire and tube assembly. The tail wheel assembly is both steerable and full swiveling and provides easy installation with variant spring tension. This wheel has been designed to release with light spring tension and fits a 1.75 wide spring. Adapter plates can accommodate either a 1.25 or 1.50 inch wide spring. The base unit that mounts to the spring is also machined from extrusion. It is available with a two hole mounting option. The assembly should be mounted on the flat spring so that the pivoting axle is as close to vertical as possible when the plane is loaded. All assembly bushings are made of oil impregnated brass so no lubrication is needed during the life of the tail wheel. In addition, the shaft has been redesigned to .625 for added strength and durability. |
Specifications
- Tail wheel has a 10 inch pneumatic tire, overall length of 11.4 inches
- Max width of tail wheel with fully splayed arms is 7 inches, overall height of 13.1 inches
- Weight: 8.5 pounds
