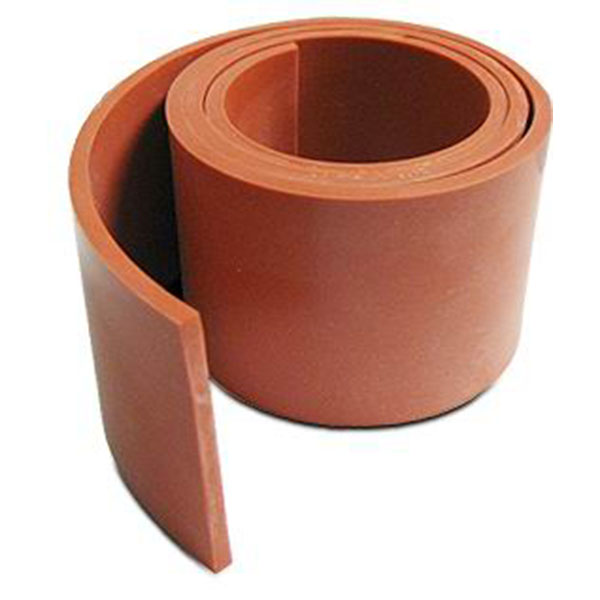

Silicone Red .125Tnk+/-.015X3WX65 Long

18 Reviews 3 Answered Questions

$11.50/Foot

Add to Wishlist View More In This Series →

Part# 05-00772-3
MFR Model# CL2BGR70

Description	Part No.
Silicone Oxide Red 1/8" x 3" (Sold by the foot)	05-00772-3

Overview

This silicone rubber is excellent for replacement of baffle seals as it exceeds asbestos type seals in durability and flexibility over its entire operating heat range of -80 F to +425 F. Meets Mil Spec ZZR765B. ISR3 meets Mil Spec AMS3320 (PN 05-00770, 05-00771-3, 05-00771) AMS3303 for all other. Available in red, blue & black.

Frequently Purchased With
Customers Also Viewed
Related Items

Reviews

Submit a Review

No issues with this product and it looks great. A bit tricky for corners so I had to make series of small cuts to fit right.

Tim W

Verified Purchase

Silicone Red .125Tnk+/-.015X3WX65 Long

May 6, 2023

Christophe N

Verified Purchase

Silicone Red .125Tnk+/-.015X3WX65 Long

January 24, 2023

Priced fairly. Stiffer than I’d expected but hopefully will contour correctly.

Randy B

Verified Purchase

Silicone Red .125Tnk+/-.015X3WX65 Long

September 11, 2022

Fine met requirements

Vance B

Verified Purchase

Silicone Red .125Tnk+/-.015X3WX65 Long

July 26, 2022

Exactly as described, quick turnaround

Todd H

Verified Purchase

Silicone Red .125Tnk+/-.015X3WX65 Long

July 12, 2022

good quality just what I needed

Alan K

March 16, 2021

Fast shipping and order fulfilment

William C

January 23, 2021

Top of the market

Alex

January 11, 2021

Excellent product to replace worn or damaged baffle. The product is of high quality very flexible and easy to cut to the exact required size

Peter M

May 18, 2019

Great product and great delivery. I would recommend this to anyone that needs baffling replaced.

Keith G

April 23, 2019

Great for cutting out those odd shaped baffles.

Bill H

June 3, 2018

Bradley S

May 19, 2018

I am familiar with this product and have used it previously. I am purchasing more based on my success with it in the past. ACS is the leader in supplies for EAB builders. Thanks

Joe G

January 25, 2018

Excellent product for many uses. I bought this to make a gasket for an antique engine.

James E

June 10, 2017

Nice material, easy to work with. Great replacement for the 25 year old seal in my RV6A. My one complaint: The 9 foot roll was about 1 foot less than needed to do the complete job. I had to order a second roll to finish the job a week later. Be sure to have high temperature RTV to seal up the gaps between the Baffle Seal and the AL engine baffles.

Huston R

September 7, 2020

Excellent product! Easy to cut and punch and install. However, it is not long enough to seal one engine. (And I have an O-300!) It was enough to seal the back and sides but nothing leftover for the rest of the engine bay. Youll need to buy two rolls to sea one small engine.

Dan B

May 26, 2021

I think it’s helping, to early to tell.

Terry

October 4, 2019

Get the one with fiberglass in it . Much better to prevent any ripping.

Nick N

April 26, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is a fiberglass insert? Is it woven fiberglass sandwiched between two layers of silicone? Is it more resistant to tearing than the silicone alone? Also, how do you find the other available colors mentioned in the Overview?

The fiberglass insert is impregnated between two layers of silicone, and is much more durable than just the silicone alone. We have added links to the other colors in the "Alternate Items" tab of this web page. We will be updating the photos for each color today so they will be more distinguishable from the thumbnail image.

Q: What is your recommendation for adhering this product to a metal cowling? Looking for something that will hold up to lots of oil as it will be in a radial engine cowling.

This silicone baffle material is commonly riveted in place, and a silicone sealant is used to seal any overlapped material. We offer a silicone molding adhesive, part number 05-04555, but it does not have any info regarding oil. It is normally used for door molding or anti-chafe silicone material.

Q: You show silivone 3/32 x 3 (sold by ft.) part No. 05-00781-3. Is Silivone different than silicone? I need to replace two baffle seals at front of my engine cowling. They attach to bottom cowling and are not part of the engine baffling RV-14A They are use as gap seals. Thanks

No, this was a typo on our web page. We have corrected. Thank you for bringing to our attention.
