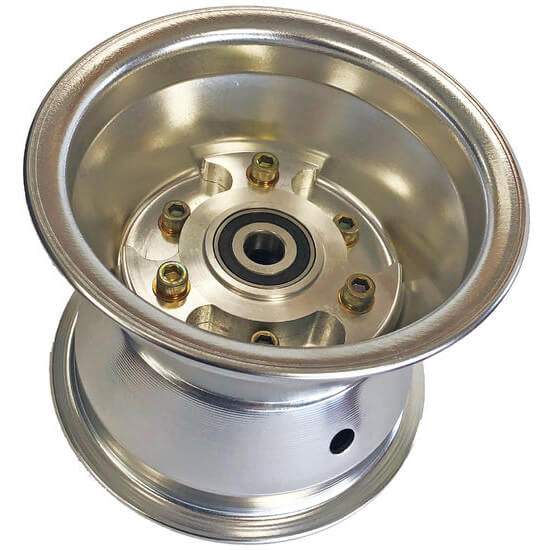

Matco Nose Wheel Assembly MH6N-S

$304.00/Each
Part# 06-00539
MFR Model# MHMH6N-S
MaterialMatco
Part No.
Spruce
Part No.
Dia.
(in.)
Axle
Dia. (in.)
Spun AluminumMH6N-S06-0053960.625

Overview

Specification Chart


Matco
Part No.
Aircraft
Spruce
Part No.

Dia.
(in.)
Bearing
Axle
Dia.
Bearing
Type
Sealed


Width
Static
Capacity
(lbs.)
Load
Limit
(lbs.)

Weight
(lbs.)
MATERIAL: SPUN ALUMINUM
MH6N 06-00537 6 0.625 Ball 5.325 660 2000 2.6
MH6N-S 06-00539 6 0.625 Ball 5.325 660 2000 2.6
MH6N.75 06-00538 6 0.75 Ball 5.325 660 2000 2.6
MH6N.75-S 06-00540 6 0.75 Ball 5.325 660 2000 2.6
MATERIAL: CNC CAST ALUMINUM
NW40B 06-00541 4 6.25 Ball 3 660 2000 2.25
NW40B.75 06-00542 4 0.75 Ball 3 660 2000 2.25
NW40R 06-00543 4 0.75 TAPER/ROLL 3 1185 3560 2.25
NW50 06-00544 5 0.75 TAPER/ROLL 3.88 1185 3560 3.24
NW51 06-00545 5 0.75 TAPER/ROLL 3.88 1185 3560 3.24
NW501.25 06-00546 5 1.25 TAPER/ROLL 3.88 1420 4260 3.24
NW511.25 06-00547 5 1.25 TAPER/ROLL 3.88 1420 4260 3.6
NW60 06-00548 6 1.25 TAPER/ROLL 3.5 1420 4260 3.24
NW600 06-00549 6 1.25 TAPER/ROLL 4.5 1420 4260 3.24
MATERIAL: DIE CAST ALUMINUM
NW40EE 06-00550 4 0.625 Ball 3.25 660 2000 1.8
NW50CC 06-00551 5 0.625 Ball 4.38 660 2000 2.7
NW50CC.75 06-00552 5 0.75 Ball 4.38 660 2000 2.7
NW51CC 06-00553 5 0.625 Ball 4.38 660 2000 2.7
NW51CC.75 06-00554 5 0.75 Ball 4.38 660 2000 2.7
NW50CC.75R 06-00555 5 0.75 TAPER/ROLL 4.38 1185 3560 2.8
NW51CC75R 06-00556 5 0.75 TAPER/ROLL 4.38 1185 3560 2.8
NW60CC 06-00557 6 0.625 Ball 4.38 660 2000 3.22
NW60CC.75 06-00558 6 0.75 Ball 4.38 660 2000 3.22
NW60CC.75R 06-00559 6 0.75 TAPER/ROLL 4.38 1185 3560 3.52
NW600CC 06-00560 6 0.625 Ball 5.38 660 2000 3.47
NW600CC.75 06-00561 6 0.75 Ball 5.38 660 2000 3.47
NW600CC.75R 06-00562 6 0.75 TAPER/ROLL 5.38 1185 3560 3.52
NW80CC-Z 06-00563 8 0.625 Ball 3 660 2000 5.02

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the NW501.25 Matco nose wheel come with the bearings included?

This comes with 1.25 inch tapered roller bearings.

Q: Are these nose wheel TSO products?

No, these would be for experimental aircraft applications.

Q: What is the difference from the mh6n to the mh6ns?

They are the same 6" nosewheel but the mh6n-s is the "silver" colored version.
