Grove Axle Shim 6202-8

2 Reviews 1 Answered Question
$48.50/Each
Quantity
Add to Wishlist View More In This Series →
Part# 06-00936
MFR Model# 6202-8

Overview

Adjust the vertical alignment of your wheels with these camber adjustment shims.

Selection Guide

How to Select the Proper Axle Shim

1. Support the aircraft in level flying attitude.

2. Chalkline the center-line of the aircraft onto the floor. Do this by connecting a mark on the floor from directly beneath the center of the firewall (use a plumb-bob) and from directly beneath the center of the tail (also using a plumb-bob).

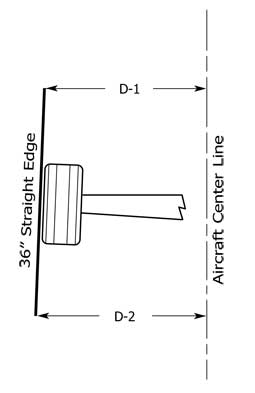

3. Place a 36" straight edge against the outside of the tire. It should be parallel with the floor and approximately centered on the wheel.

4. Make a mark on the floor directly beneath each end of the 36" straight edge. Use a plumb-bob or square for this.

5. Measure and record distances D-1 and D-2. These are the distances between the marks in step 4 and the aircraft center-line.

6. Calculate Delta D, which is the difference between D-1 and D-2. Delta D changes by 0.157" for each 1/4".

To Change Delta D by 0.10" - 0.25" Use 1/4" Shim
To Change Delta D by 0.25" - 0.40" Use 1/2" Shim
To Change Delta D by 0.40" - 0.55" Use 3/4" Shim

Similar Items

Click Here for Realignment Shims

Reviews

Submit a Review

Randal S Verified Purchase

Grove Axle Shim 6202-8
September 24, 2024

It is what it is and the biggest thing it is is expensive! It didnt even come as a pair!!

Bill
August 10, 2018

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Which shim family should I use for correcting camber on a RV-14A?

Per Grove: "The customer needs to do some calculations to figure out what degree they need to correct and pick the corresponding shim/shims for that correction. We have some helpful instructions at the following link. https://groveaircraft.com/accessories.html"
