Zircoflex 3 Self Adhsve Medium

$306.00/Each
Part# 08-07654
MFR Model# ZF-A75-3-2SA
DescriptionSizePart Number
Zircoflex III Medium Sheet with Adhesive550mm x 450mm
(Approx. 22" x 18")
08-07654

Overview

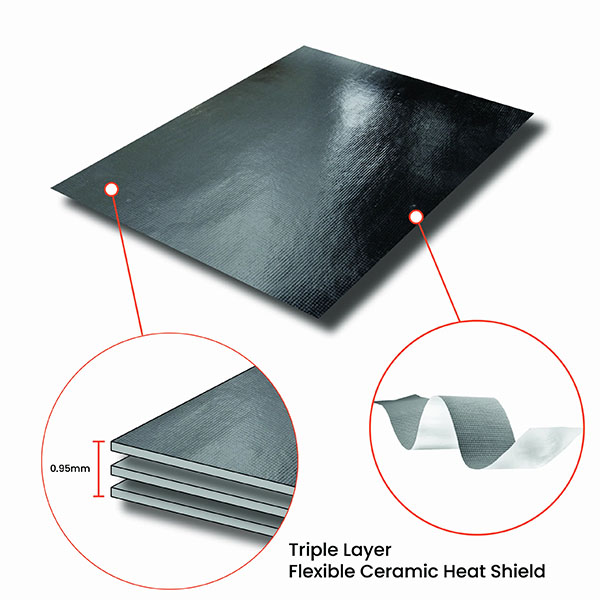

This is an engineered triple thickness ZircoFlex® format that offers yet more thermal performance coupled with significant rigidity when compared to the original ZircoFlex I® material. It is produced as an aluiminium backed matrix.

Features

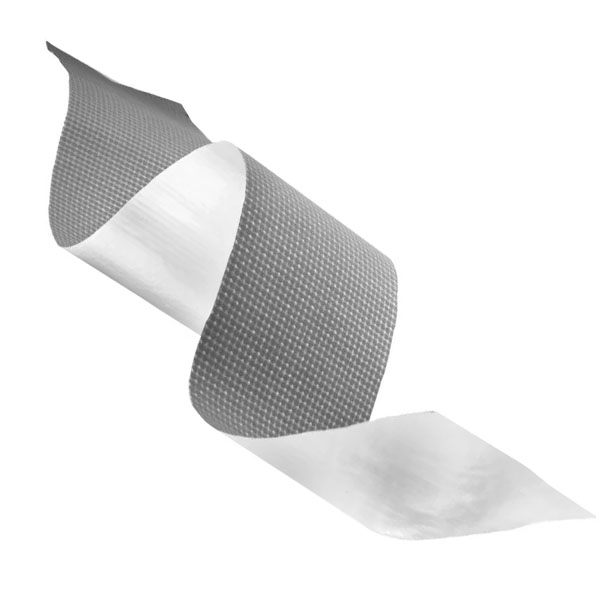

• Flexible - it is easily bent and manipulated to suit different geometries, and can be folded through 180° without damaging the thermal barrier.
• Lightweight - weighing only 1.5kg/m2.
• Thin (0.85mm overall) needing only minimal space for installation.
• Aluminium backed, so the material is robust and easy to handle.
• Easily cut and installed by hand or machine.
• Easily fixed in placeusing mechanical fasteners or high temperature adhesives (supplied separately by Zircotec).

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the Zircoflex III flexible ceramic heatshield material supplied flat, rolled, or folded?

The material is received and shipped flat, not rolled or folded.
