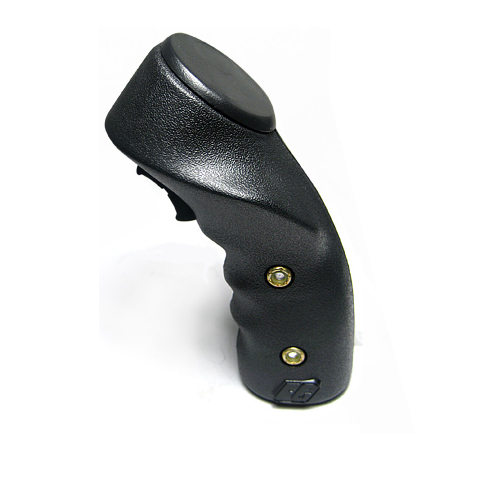

Pistol Grip Switch Model # 2
MFR Model# 0645730SPL
- JUMP TO
- Overview
- Eligibility
- Reviews
- Q&A
- View in Catalog
| Description | Part Number |
|---|---|
| #2 (Right Hand - 2 Functions) | 11-02000 |
Overview
|
The control stick grips from Flight Grip are modular in design to allow maximum flexibility when specifying switches to control the various electrical items on your aircraft and for ease of installation and assembly. Two “off-the-shelf” configurations are listed below.
The Model #2 grip provides for control of two functions using the rocker trigger switch. The trigger switch features momentary contact either side of center, with spring return to center OFF action. The Model #4 grip is the same as the Model #2, but adds two push-button switches for thumb activation in the top cap of the grip. The switch mounted closest to the thumb rest is a latching type (push on – push off), and the remaining switch is a momentary type. Left hand grips are available with all the same switch options. Grips are designed to fit 1-1/8” OD control sticks and adapter bushings are available to adapt to 1”, 7/8” and 3/4” OD control sticks. |
Reviews
This is a nice grip. It is a strong plastic. The unit is solid and well made with good fasteners. I would like to encourage the documentation that comes with the grip be placed on the website.
I am a croppie and it is the most common grip in Ag aircraft. In fact I am in the process of installing one atm.
Im not sure why Garry was disappointed. The Flight Grip is the OEM grip for two factory-built, fully certified, agricultural (hard working) aircraft. The Flight Grip has an excellent record of reliable service. NOTE: This response offered by the owner of Flight Grip, LLC.
Very cheaply made. It is made like a kids toy. I returned it.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, these flight grips are STC approved.
The grip requires 2.5 of straight 1.125 OD stick for installation.
6-1/4" height.
No wiring is included with part # 11-02000.
