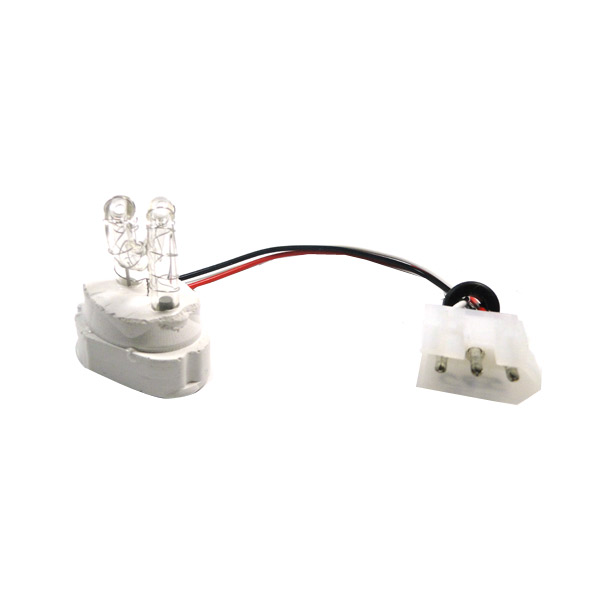

Whelen A610M Strobe Tube Assembly - Molex Connector

$218.95/Each
Part# 11-03734
MFR Model# 02-0250276-03
DescriptionPart No.
A610M Flash Tube Assembly with Molex Connector 11-03734

Overview

Whelen Strobe Parts #2
Whelen Strobe Parts #3

Reviews

Miss on the molex connector type, but was easy to de-pin and set new pins on the old connector. Great storbe lights!

James G Verified Purchase

Whelen A610M Strobe Tube Assembly - Molex Connector

August 28, 2024

Ordered the light with the molex connecter. Removed three screws securing the old light and installed the new light. Turned on the battery and beacon switch to check it out and no problem. It worked well and very bright.

David L Verified Purchase

Whelen A610M Strobe Tube Assembly - Molex Connector

May 27, 2024

Perfect size and fit!

Roger F
May 4, 2021

Whelen said my completely dead strobes were due to a shorted tube. They walked me threw diagnosis. Sure enough, this strobe tube solved the problem and restored operation! This is one of the least expensive airplane fixes Ive had. A/S had it in stock and I was good to go in a couple days.

Neil L
February 9, 2021

Easy modular design. Realized I needed a simple tool to compress the wire connection leads so I could feed it thru the wing tip assembly. Once I borrowed that tool, installation was easy. Nice and bright, again.

Bob H
November 3, 2020

Perfect fit, great finish.

Rick S
October 2, 2020

Item as described. Warp speed shipping

John
October 1, 2020

The Whelen A402R Red Optic Lens fit perfectly on my C-150 and at a comparably low price ($73). Delivery was fast as well.

Charlett
September 4, 2020

Love it. Provides just the amount of spacing I needed.

William C
July 13, 2020

Good quality product fair price fast shipping.

Roger R
June 30, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: is this the mating connector for whelen a441?

The light assemblies have the A441 connector. The mating connector is an A442 socket.

Q: Would it be possible to make the picture enlargements big enough to read? The pop up isn't any bigger than the main screen picture. Thanks

We have switched out the drawings for more clear and larger versions. We will be re-doing all of our Whelen Strobe Pages over the next few days to make it easier for the customer. Please look for these changes soon.

Q: does the part W1285-2 come with the wire pigtail that is pictured?

No, the W1285-2 is the base only, no wire pigtail.

Q: Question regarding part # 11-03215 (A626): Does the screw pictured in the diagram come with the part 11-03215? If not, please give me a P/N for this screw.

The screw does not come with the part. You will need P/N# MS24693C26.

Q: Whats the difference between the Whelen A610 and the A610-M Flash tube assembly?

The only difference is the connector. The A610 has the standard connector, the A610-M has a Molex connector.

Q: How long is the wiring length of the A610M flash tube assembly with the molex connector attached? Part number 11-03734

The wire lead length is approximately 7-5/8" from the assembly to the end of the molex connector.

Q: I have the combination wing tip pos lite and strobe. My strobe tube is milky..and needs tobe replaced. Your diagram picture shows it to be part A610. But no such item is listed. What is the part # for the A610?

The A610 assembly is our Part # 11-03213. If you keyword search 11-03213, you will locate the web page to order the assembly.

Q: Is the Flash tube included in A650 Wingtip Strobe Head Assembly part # 11-03215? If not what parts are included?

Everything in the photo is included.

Q: Does the A610M include the strobe tube as well as the molex connector?

Yes the "M" means that the molex connector is included.

Q: What is the difference between the two lamps? I did not understand the difference in value and what changes between them.

Just the connectors at the end of the wire leads. A610 has the standard rectangle connector as seen in the first photo, and the A610m has the molex connector shown in the second photo.
