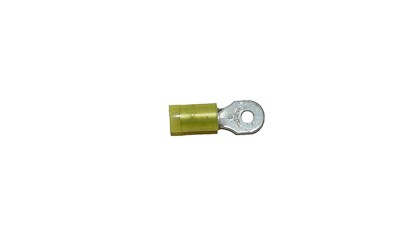

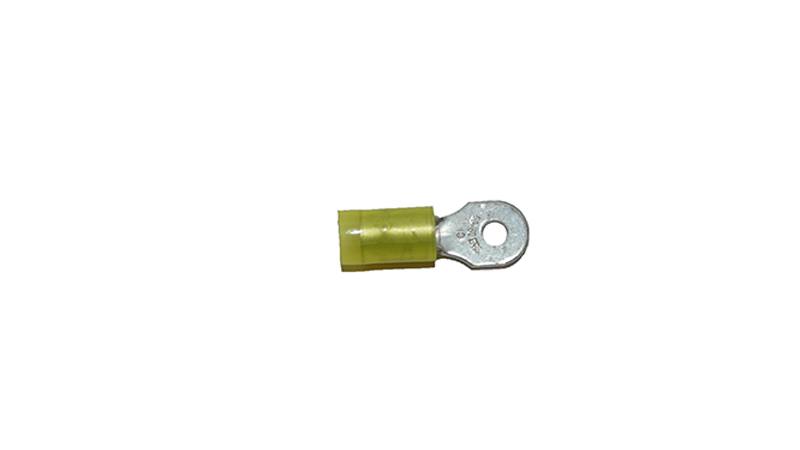

Sta-Kon Terminal RC10-6

$2.09/Piece
Part# 11-03874
MFR Model# RC10-6
DescriptionWire RangeBolt HolePN
Sta-Kon Terminal RC10-612-10611-03874

Overview

Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. Standard single crimp style.
    RA=Red Sleeve
    RB=Blue Sleeve
    RC=Yellow Sleeve
    Voltage Rating 600V

Reviews

These lack the strain relief ring found at the rear of a typical AMP aircraft crimps designed to attach to the insulation and reduce movement of the copper wire in the crimp. Plastic is self-extinguishing to flame

Gary S
April 15, 2023

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these terminals the double crimp kind? one crimp on to the bare wire and one crime on to the insulation?

No these are standard crimp connectors.
