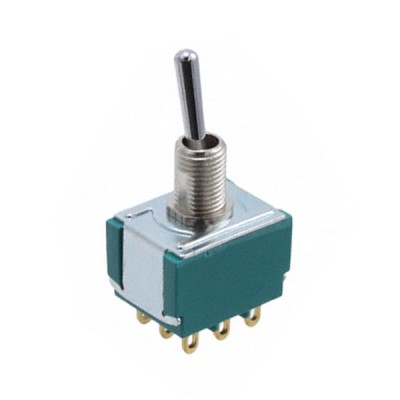

Ultra-Mini Mta-206R Toggle
MFR Model# MTA-206R
|
Alco Switch Part No. | Micro Switch Part No. | Contact | Toggle Circuit* | PN |
|---|---|---|---|---|
| JMT-226 | 8A2061 | DPST | 06 | 11-04207 |
Overview
|
Ultra-miniature switches are rated at 6 amps at 125V AC and 4 amps at 28V DC. Solid silver contacts. Terminals are gold flashed to inhibit oxidation and to provide easier soldering.
Case material is green diallyl phthalate resin. Bushing thread size: 1/4-40, usable in panel thickness up to 1/4". Micro Switch Co. have discontinued the manufacture of the 8A and 8H type switches, so switches by alternate manufacturers will be furnished. In most instances, Alco switches will be supplied. Switches furnished complete with locking ring and attaching hardware *See Toggle Circuit Table |
Toggle Circuit Table
| Toggle Circuit | | ||
| One Side | Center | Other Side | |
| 01 | On | None | On |
| 02 | On | Off | On |
| 04 | (On) | Off | (On) |
| 05 | On | Off | (On) |
| 06 | On | None | (On) |
| *Use the "01" circuitry for On-Off switch. In hook-up, use center terminal and one side terminal. Leave other side terminal blank. | |||
Lever/Circuit Relationship
| |
 | The operating sequence above is repeated in multipole devices. Each pole has double-throw circuitry and consists of three terminals which exit at the bottom of the switch case. The keyway is a helpful reference when you are applying a switch with the momentary (ON) circuit at one of the extreme lever positions. |
