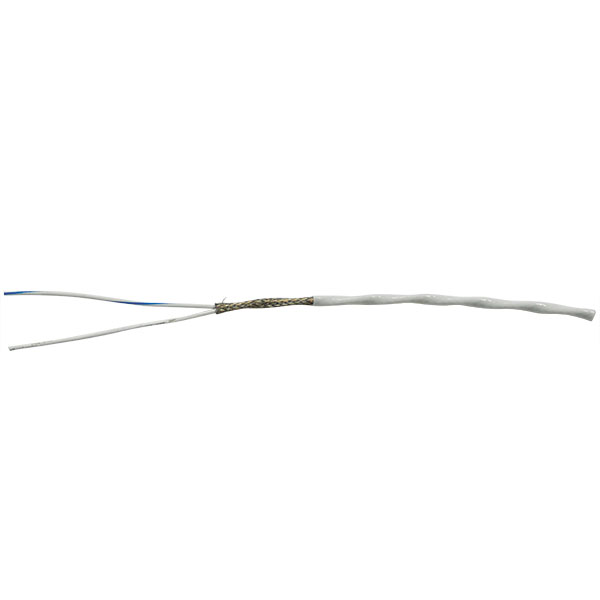

Shielded 24GA 2 Conductor White Wire M27500-24TG2T14

$2.87/Foot
Part# 11-04477
MFR Model# J3596
Mil SpecConductorWire GaugePart Number
M27500-24TG2T1422411-04477

Overview

This shielded & jacketed aircraft wire conforms to MIL-C-27500 & replaces MIL-C-7078/3. It incorporates MIL-W-22759/18 basic wire and features a Tefzel insulation, a shield of tin- plated copper braid and a jacket of Tefzel. It is temperature rated to 150°C & voltage rated at 600 volts. Top quality wire to military specs.

*8 Gauge shielded wire is used in converting generator systems to alternators. Conforms to MIL-C-27500

Specifications

  • Construction; Stranded tin plated copper conductor extruded etfe tin plated copper braid 85% coverage white extruded etfe jacket.
  • Color: White

Reference Chart

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

White B Verified Purchase

Shielded 24GA 2 Conductor White Wire M27500-24TG2T14

June 22, 2024

Quality product

William J Verified Purchase

Shielded 24GA 2 Conductor White Wire M27500-24TG2T14

May 30, 2024

Barry H Verified Purchase

Shielded 24GA 2 Conductor White Wire M27500-24TG2T14

January 21, 2022

Product was correct came in on time worked out perfect for the job

Dale J
May 18, 2021

Excellent, quick service. They sent me a very short amount of shielded circuit wire. It had been difficult to find someone on the Internet that would send me such a small amount.

Nate C
May 3, 2021

I got it and it works

Alan C
April 14, 2021

Good

Julio
April 2, 2021

good product/ great service. A+ thank you very much

James G
March 9, 2021

Excellent service

Ray H
February 15, 2021

Excellent online experience. this is the PERFECT wire for my application. This is a very high quality shielded wire, Very small overall diameter even in the larger AWG sizes... The 22 AWG I am using is perfect for my application.

David W
December 11, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What color is the Shielded MIL-C-27500 wire listed on this page?

All the wire listed on this page is white.

Q: What tool do you recommend for stripping just the jacket of your 11-14418 shielded wire?

The only approved tool is part number 12-02031. Otherwise a razor blade is used.

Q: What is the diameter of the shielded #6 wire?

It is 5/16" diameter.

Q: What is the diameter of 20 awg shielded wire?

The diameter of shielded 20ga white wire M27500-20TG1T14 part # 11-14420 is 2mm.

Q: What is the outside diameter of MIL-C-27500, 16 gauge wire?

The nominal outside diameter of 16 ga wire under m27500-16tg1t14 is .092 inches.

Q: Is the 24 gauge 2 conductor a twisted pair wire?

M27500-24TG1T14 is a single conductor. Please look at Part# 11-04477.

Q: Is the M27500-18TG3T14 wire have two internal wires with a shield for three conductor or three internal wires with an external shield (4 conductors total)?

This has an external shield and has 3 individual wires inside.

Q: What is the outer diameter of the M27500-22TG6T14 cable?

.180 inch OD.

Q: What are the applications for shielded wire vs un-shielded wire?

The installation manual for the unit in question must always be consulted for the recommended wire that must be used.

Q: Is this tefzel wire?

No this is Extruded Ethylene Tetrafluoroethylene
