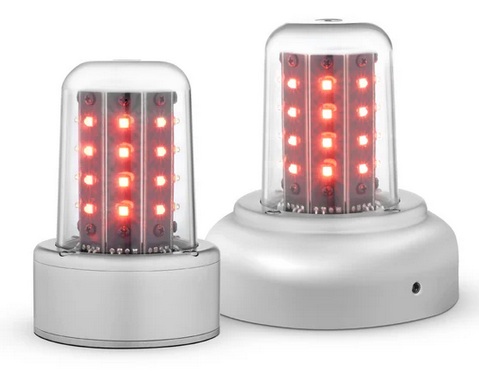

Whelen 7108008 LED Red 28VDC

7 Reviews 11 Answered Questions
$1217.00/Each
Quantity
Add to Wishlist View More In This Series →
Part# 11-07693
MFR Model# 01-0771080-08
Mfg Model #DescriptionPart Number
7108008LED Beacon Red, 28V (5 hole mounting adapter, MS connector)11-07693

Overview

71080 series LED beacons are FAA TSO compliant self-contained LED anti-collision lights (Ref. Class I - 150 effective candlepower). They are designed to replace a range of products. Refer to models and descriptions below.

ELECTRICAL:
Models: -01, -04, -05, -14, -15, -20, -51, -55: Ship with 12” Flying Leads Models: -07, -17, -08, -18: MS3102R10SL-3P Connector

MECHANICAL:
Models: -04, -14, -08, -18 are designed to replace existing beacons utilizing a 5-Hole mounting pattern on a 4.656 diameter bolt circle (Whelen 70285 series/7090501 series or 70900 with A440 adapter). Models: -05, -15, -07, -17 are 3 ¾” opening designed to fit inside an A440 mounting adapter, mounting holes to fit in place of rotating beacons, Whelen Model HRCFA, or 7090004, -05 series LED beacons.

Specifications

  • Current: 0.87 amps average, 3.0 amps peak
  • Weight: 0.65 lbs. (295gm) (-01 & -51)
  • Lens: Clear polycarbonate
  • Dimensions: 2.6” (66mm) diameter, exposed height, 3.74” (95mm) (-01 & 51)

Documents

Reviews

Submit a Review

A great replacement for the old Grimes rotating beacon.

Alan S
April 26, 2021

Great product! Easy to install

Daniel T
August 21, 2020

Very bright, low power draw. Easy install

Barry G
March 7, 2020

Great products

Carl S
November 25, 2019

Although not quite a drop in replacement for the 206 (needing to remove the vertical cap, drill holes, and very minor wiring), it is nevertheless a very easy installation. But the best part is how much brighter it is even in daylight. The light can now be seen much further away and is more eye catching than the old oem beacon. Well worth the price - especially in busy airport environments.

Bret
October 27, 2018

Whelen sales support recommended this as the drop-in replacement for my Piper Archer II. I fly in and around busy Bravo airspace and wanted to be extra visible to other aircraft. This beacon exceeded all expectations from size, weight, fit, function, visibility, and battery load. Furthermore, I have been able to clearly see the beacon from the ground (partner flying) from roughly a mile and a half away on a cloudless day. Clear night visibility is many miles. The only negative is that you have to turn it off along with strobes in the clouds on night IFR because of the intensity. Highly recommended if you want ultimate visibility and/or to remove load from your 14V electrical system as I did.

Adam S
June 14, 2017

Worked great until I had a Garmin G5 DG installed and this light put out such high Electro Magnetic Interference that the avionics shop could not find a spot in the fuselage (could not put it in the wing due to design) to put the magnetometer. We went back and forth with Whelen and eventually found that their Orion360 worked and swapped them.

Pierre
July 17, 2020

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can you verify that 7108051 is the correct choice for a 1974 Cessna 182?

Per the manufacturer: the 7108051 is the correct part for your 182 if no modifications have been made to your aircraft.

Q: Does the LED beacon require the original flasher installed in the aircraft or does it have a flasher built-in?

Powered with aircraft power, no separate power supply required.

Q: What is the difference between Part #7108014 (LED red, 28VDC & 5 hole lower mount (150 ecp)) and Part #7108018 (LED red, 28 VDC, 5 hole lower mount (150 ecp))?

The 7108014 has 12" wire attached to it for installation, and 7108018 has an MS3102R10SL-3P connector wired to the unit for installation. Order 7108018 only if you already have this MS connector on your aircraft.

Q: When I put Beacon for Piper Cherokee this is what came up, would this fit a 1966 Piper Cherokee 180?

Per Whelen, yes part # 11-09909 would work in a Piper Cherokee.

Q: On the 7108055 unit does the adapter come with the unit?

Part number 11-09909 does have a 3-3/4" adapter with the unit.

Q: According to the manufacturer I should purchase part number 01-0771080-05 for my application. Which part number should I select from your table?

Whelen part # 01-0771080-05 is our part # 11-07689.

Q: Will the 7108055 fit a 1969 Cessna 182?

Per Whelen: That model year Cessna (if it is original) has the smaller fin cap which would accommodate the part# 11-07686 product.

Q: Are all parts (including pigtail assembly) included?

It will come with a length wire and connector as shown in the Installation PDF.

Q: 1965 Cessna 150F ser. 15062556. I have the rotating beacon with mirrors and motor. Which drop in beacon will work? Thanks

Yes, these are the same.

Q: What is the light output for the 7180 series 28 Volt red beacon - in lumens or candle power

The 01-0771080-00 has a certification of TSO-C96a Class I. The Class I means that this is certified to 150 Effective Candle Power output.
