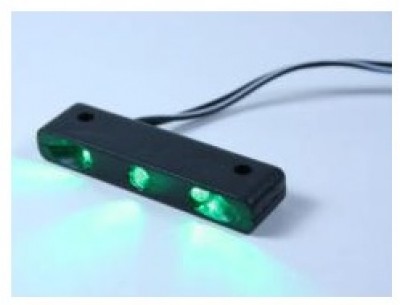

Pilot LED Undr Pnl 12V Green

$11.85/Each
Part# 11-09650

Overview

  • Three (3) very bright LEDs in an ABS housing
  • Compact size, just 2” long
  • #4 holes for horizontal mounting
  • 12 volts, low current draw (under 40 mA)
  • “Flood” type wide area lighting
  • Ideal for map lighting, foot wells or utility installations
  • Approx 5-7 lumens

Reviews

Arrived in a short period of time and was on excellent shape when I received it.

Ronald B
March 28, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Please check whether these can be made in amber color and if they can all be wired seperately. Thanks Regards Vinod

Per the manufacturer, they are not available in other colors other than what is listed, including amber. No they cannot all be wired seperately.

Q: What are the dimensions of this unit?

Length: 1-3/4", Width: 1/2", Height: 1/4"

Q: How do these connect to the aircraft? Is it wireless? Does it connect through the cigarette lighter? Please explain.

These LED map lights are to be wired into the aircraft power supply. There are two wires: one with white stripe (+) and one all black (-). They are intended to be connected directly to a power source.

Q: Is there a blue option like in the photo?

The blue light is no longer available. We are updating the photo to reflect the available options.

Q: Does this have a on/off switch attached?

No, there is no switch. You would need to wire it to a switch or dimmer.
