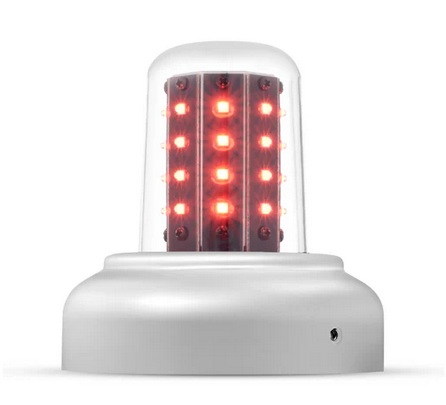

Whelen 7108055 14V Anti-Collision Light

18 Reviews 11 Answered Questions
$1217.00/Each
Quantity
Add to Wishlist View More In This Series →
Part# 11-09909
MFR Model# 01-0771080-55
Mfg Model #DescriptionPart Number
7108055LED Beacon Red, 14V (3.75" dia base)11-09909

Overview

71080 series LED beacons are FAA TSO compliant self-contained LED anti-collision lights (Ref. Class I - 150 effective candlepower). They are designed to replace a range of products. Refer to models and descriptions below.

ELECTRICAL:
Models: -01, -04, -05, -14, -15, -20, -51, -55: Ship with 12” Flying Leads Models: -07, -17, -08, -18: MS3102R10SL-3P Connector

MECHANICAL:
Models: -04, -14, -08, -18 are designed to replace existing beacons utilizing a 5-Hole mounting pattern on a 4.656 diameter bolt circle (Whelen 70285 series/7090501 series or 70900 with A440 adapter). Models: -05, -15, -07, -17 are 3 ¾” opening designed to fit inside an A440 mounting adapter, mounting holes to fit in place of rotating beacons, Whelen Model HRCFA, or 7090004, -05 series LED beacons.

Specifications

  • Current: 0.87 amps average, 3.0 amps peak
  • Weight: 0.65 lbs. (295gm) (-01 & -51)
  • Lens: Clear polycarbonate
  • Dimensions: 2.6” (66mm) diameter, exposed height, 3.74” (95mm) (-01 & 51)

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Fit and worked perfectly

Chris W Verified Purchase

Whelen 7108055 14V Anti-Collision Light
November 2, 2024

Bright as the sun and a perfect fit for my old Whelen strobe on my V35B. The base is flush with the fuselage so maybe Ill gain 1/2 knot.

John R Verified Purchase

Whelen 7108055 14V Anti-Collision Light
August 29, 2024

Dennis S Verified Purchase

Whelen 7108055 14V Anti-Collision Light
January 6, 2024

excellent product, I upgraded from the old rotary style beacon to the LED flasher and was amazed at the brightness.

Russell M Verified Purchase

Whelen 7108055 14V Anti-Collision Light
October 31, 2023

Gary H Verified Purchase

Whelen 7108055 14V Anti-Collision Light
March 13, 2023

***

Robert F Verified Purchase

Whelen 7108055 14V Anti-Collision Light
January 6, 2023

Installed but havent flown yet as engines are off for overhaul. But it worked, and a friend that has one says its bright.....

Wendell M Verified Purchase

Whelen 7108055 14V Anti-Collision Light
September 15, 2022

Installation was easy and product was as bright as the old strobe that was failing and did not generate any RF noise on the radio and strike finder like the strobe did.

Robert A Verified Purchase

Whelen 7108055 14V Anti-Collision Light
August 30, 2022

The LED replacement is far superior in both quality and function over the OEM light on the plane that failed. Strongly recommend.

Jerel G Verified Purchase

Whelen 7108055 14V Anti-Collision Light
October 9, 2021

Outstanding light, the brightest Ive seen.

Beaver V Verified Purchase

Whelen 7108055 14V Anti-Collision Light
September 30, 2021

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can you verify that 7108051 is the correct choice for a 1974 Cessna 182?

Per the manufacturer: the 7108051 is the correct part for your 182 if no modifications have been made to your aircraft.

Q: Does the LED beacon require the original flasher installed in the aircraft or does it have a flasher built-in?

Powered with aircraft power, no separate power supply required.

Q: What is the difference between Part #7108014 (LED red, 28VDC & 5 hole lower mount (150 ecp)) and Part #7108018 (LED red, 28 VDC, 5 hole lower mount (150 ecp))?

The 7108014 has 12" wire attached to it for installation, and 7108018 has an MS3102R10SL-3P connector wired to the unit for installation. Order 7108018 only if you already have this MS connector on your aircraft.

Q: When I put Beacon for Piper Cherokee this is what came up, would this fit a 1966 Piper Cherokee 180?

Per Whelen, yes part # 11-09909 would work in a Piper Cherokee.

Q: On the 7108055 unit does the adapter come with the unit?

Part number 11-09909 does have a 3-3/4" adapter with the unit.

Q: According to the manufacturer I should purchase part number 01-0771080-05 for my application. Which part number should I select from your table?

Whelen part # 01-0771080-05 is our part # 11-07689.

Q: Will the 7108055 fit a 1969 Cessna 182?

Per Whelen: That model year Cessna (if it is original) has the smaller fin cap which would accommodate the part# 11-07686 product.

Q: Are all parts (including pigtail assembly) included?

It will come with a length wire and connector as shown in the Installation PDF.

Q: 1965 Cessna 150F ser. 15062556. I have the rotating beacon with mirrors and motor. Which drop in beacon will work? Thanks

Yes, these are the same.

Q: What is the light output for the 7180 series 28 Volt red beacon - in lumens or candle power

The 01-0771080-00 has a certification of TSO-C96a Class I. The Class I means that this is certified to 150 Effective Candle Power output.
