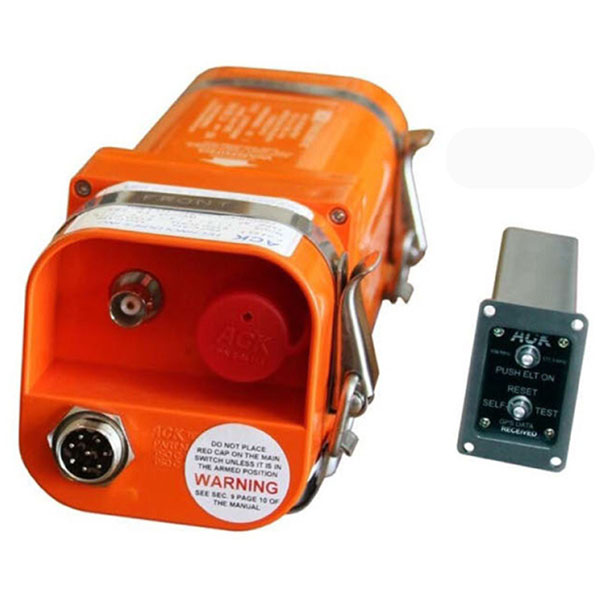

ACK E-04 Complete ELT Kit With 350 Knot Rod Antenna International

$1707.00/Each
Quantity
Add to Wishlist
Part# 11-13591
MFR Model# E-04.1 INT

Overview

GPS capable ELT accepts Garmin aviation, Bendix/King aviation, NMEA 0183 and Arinc 429 data. Retains GPS coordinates after power is removed. Remote fits Artex and Kannad panel cut-outs. ELT certified to the new TSO-C126B standard battery certified to TSO-C142A lithium batteries UN/DOT 8.3 lithium batteries.

Warranty: All warranty issues must be handled directly with the manufacturer. These are non-returnable and non-refundable once installed. If any attempts have been made to install this unit it becomes a warranty issue and can only be resolved through the manufacturer directly.
There is a $250 Recertification fee in addition to the 15% restock fee on all ACK products that have been opened.

Specifications

Approvals:
  • FAA / Transport Canada
  • TSO -C126b TSO-C91a TSO-C142a
  • EASA
  • ETSO 2C126 ETSO 2C91a TSO-C142a
  • Industry Canada
  • 1863A-E04AF
  • Brazil ANAC/ANTEL
  • TSO-C126 TSO-C142a
Type: TSO-C126b TSOC-91a AF

Frequency: 121.5 MHz & 406.037 MHz

Modulation:
  • 406 MHz +/-2 kHz Bi-Phase L (16KOG1D)
  • 121.5 MHz +- 6 kHz AM (3K20A3N)
  • Swept Downward 1400 – 400 Hz
  • Repetition Rate 3 Hz
  • Modulation Factor ≥ 90%
  • Duty Cycle ≥ 45%
Power At Terminal 50 Ω Load:
  • 121.5 MHz 20.7 dBm 50 Hours@ -20C
  • 406.037 MHz 37.3 dBm 24.5 Hours @ -20C
Peak EIRP with E-04.8 Whip Antenna AND E-04.10.4 Coax Cable:
  • 121.5 MHz +22 dBm 160 mW
  • 406.037 MHz +39.79 dBm 13.7 W
Peak EIRP With S65-1231 BLADE Antenna and E-04.10.4 Coax Cable:
  • 121.5 MHz +23 dBm 200 mW
  • 406.037 MHz +39.79 dBm 13.7 W
Operating Temperature:
  • -20C TO +55C
  • Storage Temperature: -55C TO +85C
Crash Activation: 4.5 FpS +- .5 FpS

Dimensions:
  • 7.750” x 2.850” x 2.850”
  • 192 mm x 72 mm x 72 mm
Weight:
  • ELT and battery pack 1.6 lbs .73kg
  • ELT tray and straps .2 lbs .09kg
  • Remote Control (RCPI) 12.5oz 31g
  • Audio Alert Indicator 1.5 oz 43g

In The Box

  • 1 - E-04C 121.5/406 MHz ELT
  • 1 - E-04.5.1 Remote with vertical placard
  • 1 - E-04.5.1.0H Remote horizontal placard
  • 1 - E-04.10.4 Coax cable 60”
  • 1 - E-04.10.1.11 Warning horn
  • 1 - E-04.4 Mounting Tray
  • 1 - E-04.4.1 Retaining strap front
  • 1 - E-04.4.2 Retaining strap battery case
  • 1 - E-04.10.1.13K 2 Pin plug kit
  • 1 - E-04.10.1.4K 8 Pin circular plug kit
  • 1 - E-04.10.1.10K 15 Pin plug kit
  • 1 - E-04.11.1 Switch cover
  • 1 - E-04CM Installation/Operation/Manual
  • Accessories
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can I use this ACK E-04 ELT in Argentina and South America? Does it includes anything I need in order to install it?

Yes. We can program it for Argentina. You will just need to order it and provide the aircraft and country information to program it. The package will include everything needed for the install.

Q: Does this ACK E-04 ELT comply with TSO91A and TSO126?

Yes, this unit complies with these TSOs. All approvals and information can be found in the installation manual under the Documents tab.

Q: Is the battery included in this E-04 complete kit?

Yes, the battery is included.

Q: What is the difference between this model and the other ACK 406/121.5 MHZ E-04?

The main difference is the type of antenna that the aircraft requires - Whip, Rod, or Blade. Part # 11-13591 is programmed for a plane that would be located outside of the USA.

Q: Is the antenna included? If working internationally, does it also work in the USA, or is it excluding USA?

Yes, the antenna is included and the ELT will work in and outside USA. During the ordering process you will need to provide the Owner/Operator, aircraft, and country information.

Q: If the 15 wire isnt long enough and I need an extension, is 11-09971 the correct wire + coupler to get?

Part # 11-13637 is the ACK remote switch cable that will extend the remote switch cable on the ELT. Length is 5ft.
