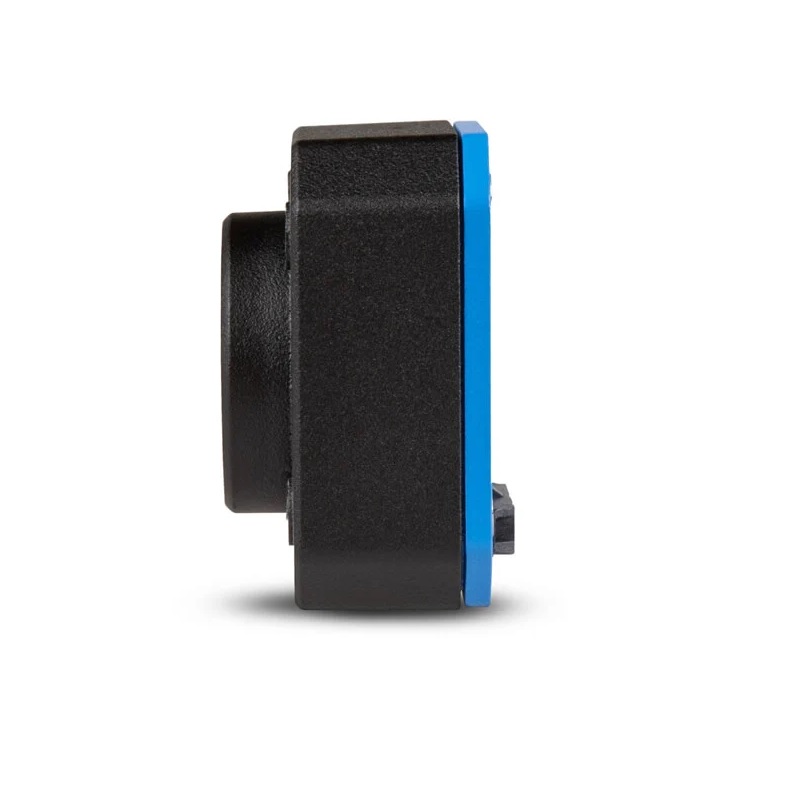

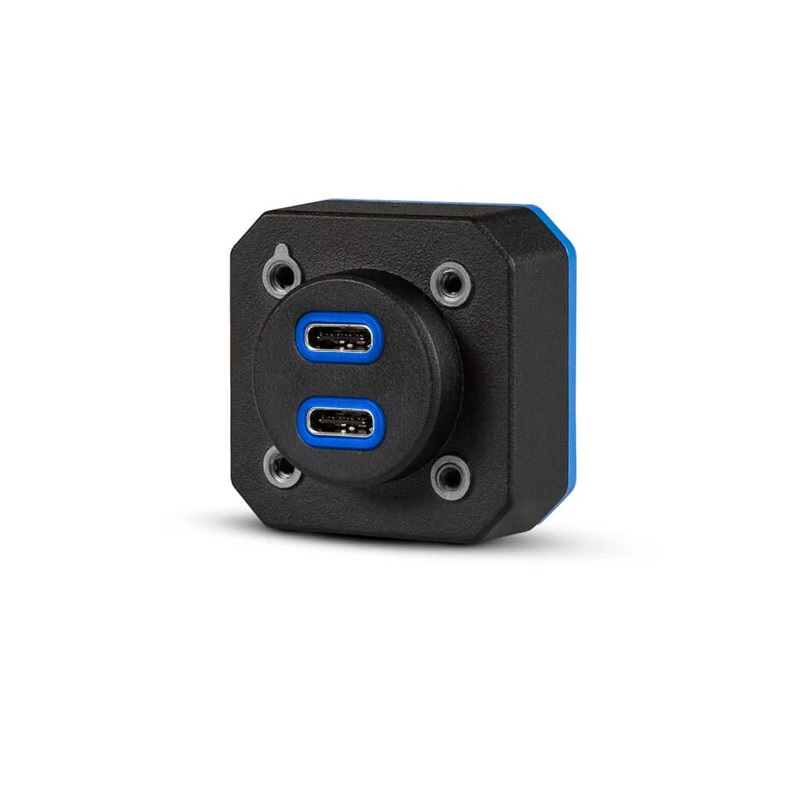

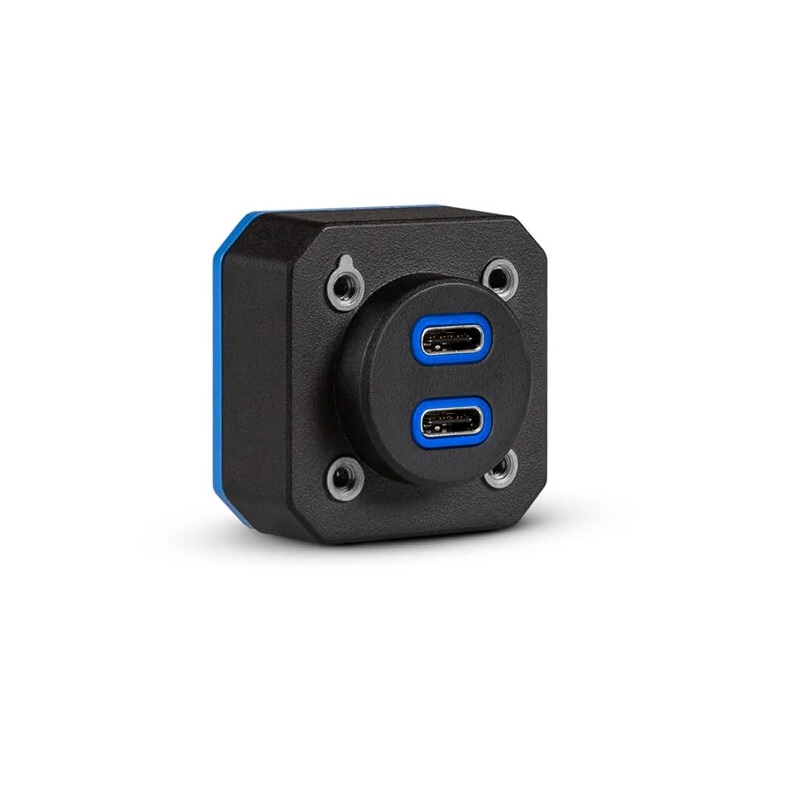

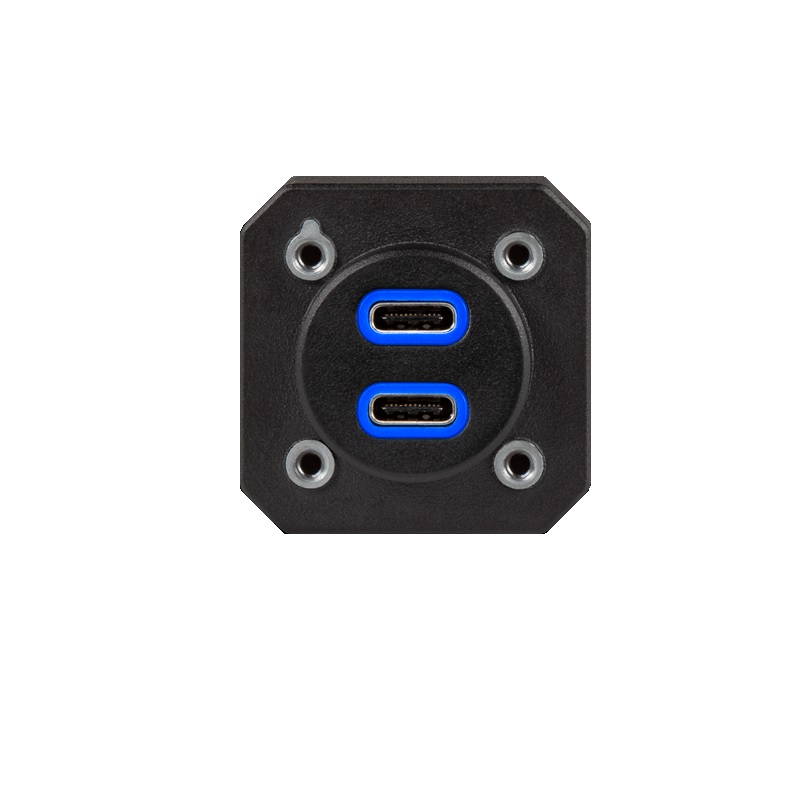

Garmin GSB 15 Type C Side 010-02544-51
MFR Model# 010-02544-51
Overview
|
Garmin is pleased to introduce GSB 15, a small, lightweight USB charger
designed specifically for aircraft installations. GSB 15 includes two powerful
USB Type-A charging ports capable of charging at up to 3A or 18w per port
simultaneously. A single GSB 15 is capable of charging two full-size tablets
while pilots or passengers use them at full backlight. Compatible with 14v or
28v power systems, GSB 15 has built-in protection against circuit and
temperature overloads. There is also configurable halo lighting around the
exterior of the USB ports to allow pilots and passengers to easily connect their devices to GSB 15 during nighttime conditions.

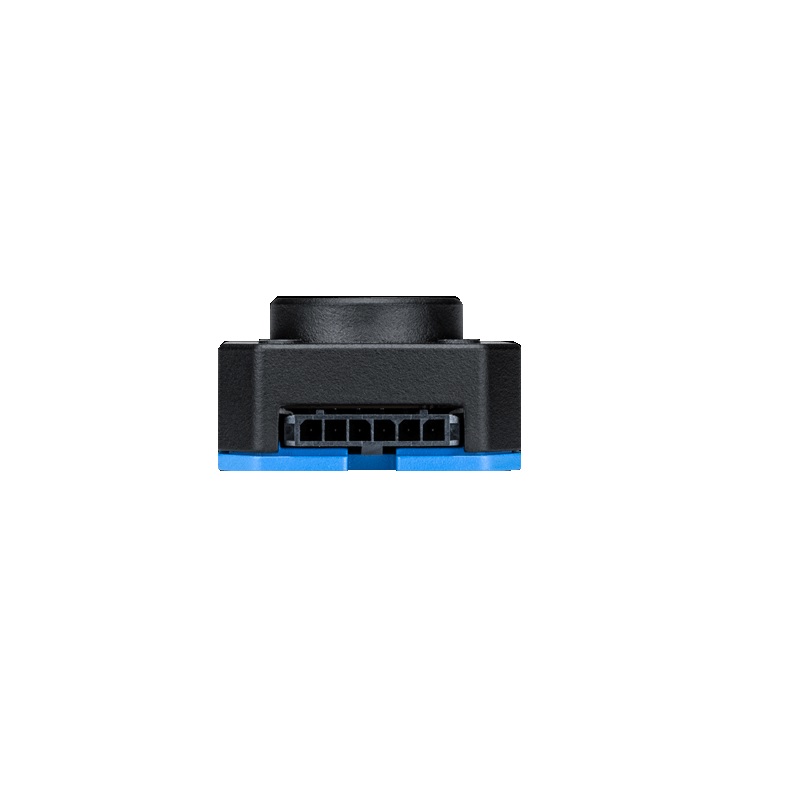

Two versions of the GSB 15 are available and allow for easy installation in spaceconstrained areas. One version contains a connector on the back of the unit, which is perfect for panel mount installations. A second variant has a connector on the bottom of GSB 15 and is ideal for installations in depth-constrained areas, such as near cabin sidewalls. Installation can also be simplified as GSB 15 can take the place of an existing aircraft instrument hole with an optional adapter plate. A slim, lightweight design makes it suitable for installation in any cockpit or cabin. |
Features
- Dual USB configuration gives simultaneous fast 3A charging from each port
- Charge two full-size iPad® tablets or similar smart devices while using them at full brightness
- Halo lighting around each USB port makes connections easy in dark conditions
- Offers easy installation in an existing instrument cutout with optional adapter plate
- Two charger formats — for straight or 90-degree power wiring connection — help simplify installation in tight spaces such as armrests or sidewalls
- In just a few short years, battery-powered mobile devices have become essential in-flight tools for pilots and their passengers alike. Pilots use their tablets or smartphones to access flight plans, moving maps, charts, weather data, manuals and more — while passengers access entertainment, messaging and all types of productivity apps on their devices. But, invariably, all these portable electronics need an external power source to keep them charged and ready to use over a long flight. That’s where our GSB 15 USB charging hub makes all the difference.
Specifications
- Charging port types:
- Dual USB Type-A
- USB Type-A/USB Type-C
- Dual USB Type-C
- Input Voltage: 14V, 28V
- Output voltage:
- Dual USB Type-A: 5-12V
- USB Type-A/USB Type-C: 3.6V-12V / 5V-12V
- Dual USB Type-C: 5V-12V
- Power consumption:
- Max (while charging): 40W (Dual USB Type-A Only), 68W
- Min (not charging): 500mW
- Maximum power output per port:
- Dual USB Type-A: 18W
- USB Type-A/USB Type-C: 27W
- Dual USB Type-C: 27W
- Required circuit breaker size:
- 28V Input: 5A
- 14V Input: 5A (Dual USB Type-A Unit), 7.5A (USB Type-A/USB Type-C and Dual USB Type-C Units)
- Dimensions:
- Side Connector: 1.50" x 1.55" x 0.84"
- Rear Connector: 1.50" x 1.50" x 0.92"
- Weight: 0.16 lbs
- Certifications:
- TSO-C71
- Qualcomm® Quick Charge™ Technology (USB Type-A Ports Only)
Benefits
- This dual-port 3A USB charger delivers plenty of electrical current to power two iPad tablets or similar smart devices at full brightness — while simultaneously charging their batteries. There’s built-in protection against circuit and temperature overloads. Plus, configurable halo lighting on the plugs makes them easy to locate and access in a darkened cabin or cockpit.
- The slimline GSB 15 charging hub measures just over 1.5” square and stands less than an inch deep — making it one of the smallest dual-port USB charging hubs ever designed for aviation use. It comes in two formats: one designed to be wired into aircraft power from the back of the unit — and one that connects to aircraft power through the bottom of the case. Choose the version that fits best with your application and its related space constraints.
- You can mount GSB 15 virtually anywhere. It’s small enough to fit a 1” cutout — or it’s available with two optional mounting plates that allow for easy installation in existing, unused 2.25” or 3.125” instrument holes in the panel. It has FAA TSO and consequently European approval. The device will fit in a variety of constricted spaces — such as aircraft sidewalls, armrests or aft console positions — where most aviation USB chargers are simply too large or unwieldy to install.
In The Box
- GSB 15 Charger
- Connector Kit
Reviews
Fantastic, I used to slowly deplete my iPad battery and could not keep foreflight up for a full 4 hr flight. With this panel mount charger, my iPad stays 100% charged the whole way.
Great product
Easy to install and works perfectly.
It’s small, light weight and easy to install. I used the mounting bracket (additional purchase) and placed in a 2” hole in the panel. It’s a nice clean look, but it would also be easy to mount in the panel with the detailed drawings in the installation manual.
Works great and was easy to install. We actually installed two, one in the front panel and one in the rear for the passengers, they love the convenience. Small compact price and affordability were also major selling size, plus its from Garmin!
Yes this is an extremely sturdy usb charger. I would expect nothing less from garmin. Very easy to install. Make sure you have a Molex crimper.
Excellent thanks
Havent seen it myself yet but my installer says Very nice unit!
I have not installed the Garmin 15 USB Charger yet, but I am very impressed with Aircraft Spruce’s customer service. Not only are they helpful when ordering over the phone, but my unit shipped 2 days before they anticipated it would.
Just added one where my cigarette lighter used to be, just under the yoke. It is amazing fast charging and looks good to. Much better than when we were using a USB plugged into the cigarette lighter which stuck out 3 to 5 inches. Doesnt sound like much, but being flush with the panel is really nice.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Part # 11-17434 can fit into a cutout 1" or its available with two optional plates that allow for installation in 2.25" hole P/N 11-17437 OR 3.125" hole P/N 11-17438.
Yes, this unit is FAA Approved under TSO-C71.
Yes, the GSB 15 Connector Kit (model 011-05044-00 | Part# 11-17491) is included in the box with the charger.
Do not connect for backlight ON (nighttime visibility). Ground connection for backlight OFF.
The manuals can be downloaded and printed from https://support.garmin.com. Enter the product name or your serial number to access the manuals.
No, it is not FAA STCd. It is FAA TSO Approved.
Charge two full-size iPad. tablets or similar smart devices while using them at full brightness.
There is no 8130 in the box. The charger itself is marked with the TSO approval. An export 8130 form can be furnished for this item if requested at the time of order (additional charges will apply).
No, this is simply a charger for the iPad.
Yes this will charge the iPad Pro.
