- Photo may represent series and not specific product
- SHARE
Anti-Icing Cart Electric 40 Gal
$4386.00/Each
Part# 12-02086
MFR Model# C40PS
MFR Model# C40PS
Overview
|

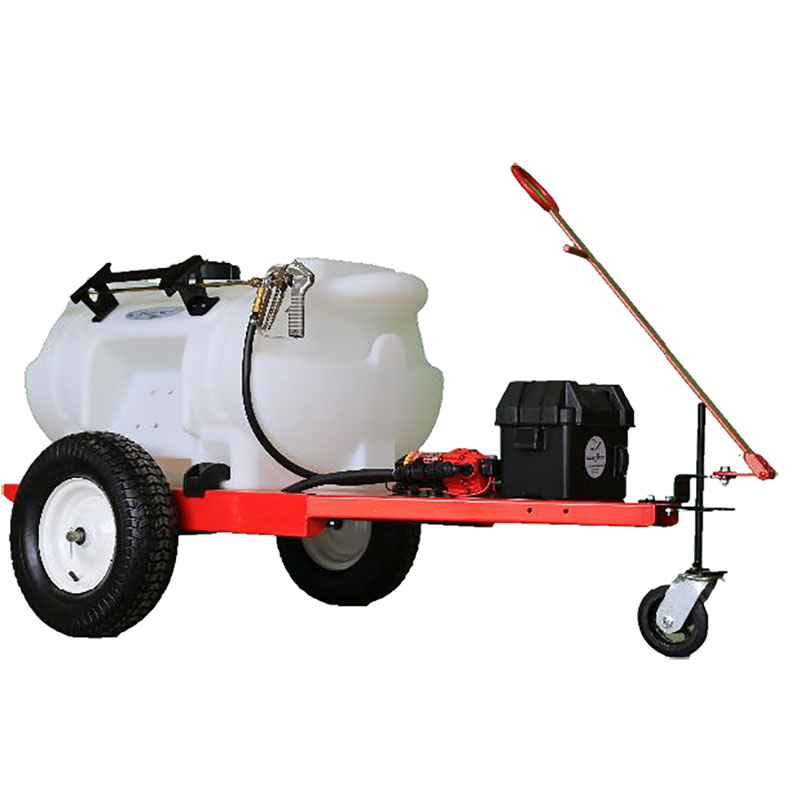

The 12-Volt Electric Powered Carts are appropriate for either indoor or outdoor use and are typically used for anti-icing operations using SAE Type IV anti-icing fluid. These carts use a 12-volt, 3-chamber diaphragm, non-circulating pump with a demand pressure switch that provides fluid flow rates of up to 2.4gpm/60 psi. (Optional 4.5 pump available for 60 gallon cart, please call Aircraft Spruce for details.)
Electric Powered De-icing carts can be used in a hanger. They provide lower fluid pressure and flow rates (vs the gasoline engine powered carts), and use a non-circulating pump (to avoid viscosity degradation of SAE Type IV fluid), which makes them suitable for anti-icing operations prior to moving the aircraft outdoors. All carts are supplied complete including a steel frame and tires, corrosion-resistant polyethylene tank, 24" hinged tow bar with pintel ring, nose wheel, pump, pressure gauge, high-pressure 3/8" hose and pistol-grip deluxe handgun with 24" brass extension and brass conejet tip. Also included is an automatic, on-board charging and battery system that makes these units completely self-contained. |
Technical Specifications
| Electric Powered Carts | C25PS | C40PS | C60PS |
|---|---|---|---|
| Tank Capacity | 25 gallons | 40 gallons | 60 gallons |
| Tank Material | Polyethylene | Polyethylene | Polyethylene |
| Pump Type | 12 volt Diaphragm | 12 volt Diaphragm | 12 volt Diaphragm |
| Pump Amps – Max | 7 Amp | 7 Amp | 7 Amp |
| Pump Output – Max | 2.4 GPM | 2.4 GPM | 2.4 GPM |
| Pump Pressure – Max | 60 PSI | 60 PSI | 60 PSI |
| Pressure Gauge | 0-100 PSI | 0-100 PSI | 0-100 PSI |
| Adjustable Pressure | 60 PSI Cutoff | 60 PSI Cutoff | 60 PSI Cutoff |
| Sprayer Gun | Deluxe Handgun | Deluxe Handgun | Deluxe Handgun |
| Extension Hose | 25’-3/8”ID | 25’-3/8”ID | 50’-3/8”ID |
| Main Tires | 16x6.5-8 Pneumatic Turf- Tread | 18 x 9.5 x 8" | 6.70-15 4 ply |
| Nose Wheel | 5” Caster | 5” Caster | 5” Caster |
| Hitch | 24" Hinged Tow Bar with pintel ring | 24" Hinged Tow Bar with pintel ring | 24" Hinged Tow Bar with pintel ring |
| Self-Containment Kit | Battery and Charger | Battery and Charger | Battery and Charger |
| Warranty | 90 Days | 90 Days | 90 Days |
| Approx. Ship Weight | 65 lbs. | 210 Lbs. | 230 Lbs. |
| Overall Dimensions | 51x28x26 | 66x29x32 | 80x44x37 |
