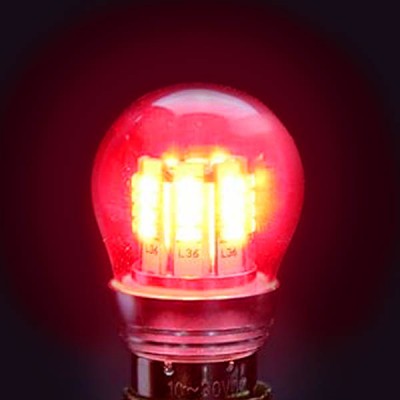

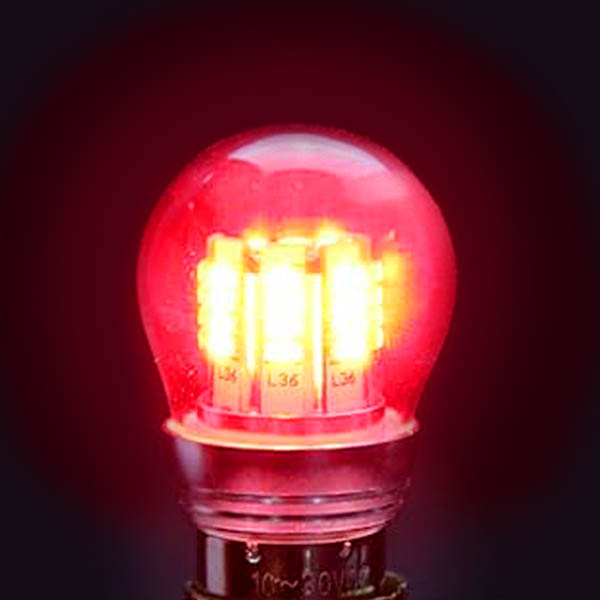

Reflector Series LED Replacement Bulbs Red
MFR Model# RA-7512-LED-RF-RED-10-40V
Overview
|
An affordable, long life, super-bright LED replacement for high-current demand incandescent bulbs for Whelen/Grimes Rotating Beacons and position lights.
This glass dome LED is an exact replacement for BAY15s-base incandescent bulbs. Super bright 3W design. Mirror-gloss reflector concentrates and directs lighting. Very low power consumption. Cool white LEDs are super-bright (300 lumens). Mirror-reflector mimics OE bulb function and ensures a bright rotating-light effect. Exact fit replacement in most older rotating beacons Note: Not suitable for flash-tube type strobes. |
Features
- Super bright cool white output
- Replaces common Grimes / Whelen incandescent reflector bulbs (12V or 24V)
- Sealed glass dome for superior dust/moisture resistance
- Super bright 3W design – brighter than incandescent it replaces
- Low current consumption – about 12% of an similar incandescent
- Exact fit replacement for common Grimes / Whelen bulbs used in rotating beacons and position lights
- Experimental Aircraft Only (for Certified aircraft - these bulbs meet FAA illumination guidelines but have no STC/PMA)
Specifications
- BAY15s base (single contact, dual off-set retainers)
- Exact replacement for Grimes/Whelen/GE incandescent reflector bulb
- Rated at 50,000 hours
- 300 lumens
- Power consumption is less than 220mA at 13.8VDC
- Mirror-gloss reflector
Benefits
- Super bright 3W design
- Low power consumption (less than 220mA)
- 10-36VDC (works on both 12V and 24V electrical systems)
- Cool White LEDs and mirror-gloss reflector produces a very bright lighting effect
- Long life LEDs – rated at 50,000 hours
In The Box
- 1- BAY15s bulb,
- 1- Reflector-series, cool white LED
Reviews
Verified Purchase
Reflector Series LED Replacement Bulbs Red
I got the red, green and the model #1156 for the tail light to replace the incandescent bulbs…superb! Almost blindingly bright. I used the existing red and green colored lenses.
great product
Verified Purchase
Reflector Series LED Replacement Bulbs Red
Replaced dual white rotating beacon bulbs on bottom fuselage Baron 58P perfect LED replacement for A7079B-24 bulb. Was a 15 minute replacement for the shop. Ice light on left engine cowling is the same bulb but reaching it required taking apart a piece of the cowling and heater exhaust which took the shop 2-3 hours bulb replacement is perfect however.
Perfect for replacement on rotating beacon that is much brighter than original lamps and draws very little current.
For $30.00 each they perform as expected. The red is orangish and the green a little blue.
Beware, these are not FAA approved for anything except experimental airplanes.
Verified Purchase
Reflector Series LED Replacement Bulbs Red
Not a suitable replacement for a rotating beacon bulb. If you look at the design, it does not reflect a beam of light. The reflector blocks the leds for 180 degrees of lighting.
I had ordered, what I thought was an LED to replace the bulb in the rotating beacon on my Piper Cherokee. This was not it. The reflector on one side and the uneven contact pins make it incorrect for this installation. Fortunately, I had also ordered the regular bulb as well.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
It will not, the posts on 13-22036 are offset and they are level on GE1939X.
No. This bulb does not have an internal flasher.
This is coated on the outside and it could probably be removed. Removal would be at your own risk and could damage the bulb.
Yes this is the led replacement for a 7512 style bulb.
1.75 overall.
