Home / Rotax Engines & Parts / Parts / 912/914 Series / Turbochargers /ROTAX 641-343 STUD M8X30/13
Main Image

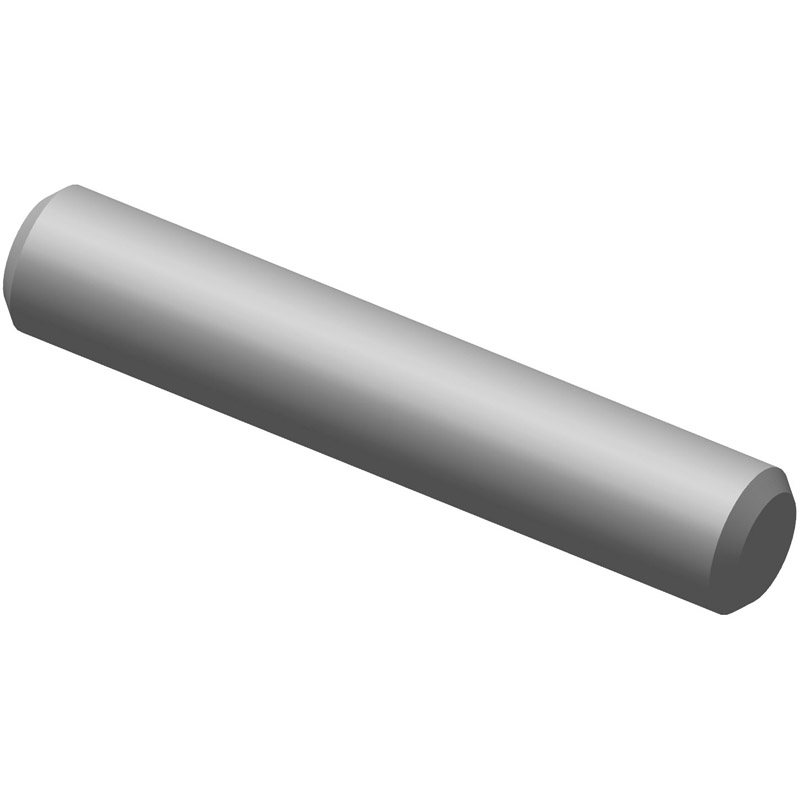

ROTAX 641-343 STUD M8X30/13

0 Reviews 0 Answered Questions
$8.55/Each
Quantity
Add to Wishlist View More In This Series →
Part# 15-00669
MFR Model# 641-343
No.Rotax NumberDescriptionQty 912 ULQty 912 ULSQty 914 ULPN
19641-343STUD M8x30/131a15-00669

Overview

- Items not illustrated
  • a   Marked with S/N;
  • b   Stainless
  • c   In a roll, Tube 125 mm (4.92 in.)
  • d   With imprinting “oil”;
  • e   See Service Instruction SI-914-022 current issue
  • f    With additional internal bracket from engine S/N 914 F: 4,420.437
  • g   With lubrication hole for waste gate shaft


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Status
Part No.
 Description
912 UL
912 ULS
914 UL
Price
12
xxx-xxx
 see chapt. 76-00-00
1
-
20
940-583
 HEX. SCREW M8x16 STAINLESS 19 ft.lb.
1
30
xxx-xxx
 see chapt. 72-20-00 pos. 38
AR
-
31
xxx-xxx
 see chapt. 72-20-00 pos. 36
AR
-
33
xxx-xxx
 See fig. 1 pos. 10
8
8
8
-
34
xxx-xxx
 See fig. 1 pos. 11
8
8
-
39
-
 HEX. SCREW M8x1x6
4
-
50
241-841
 ALLEN SCREW M5x12
2
$0.65
51
942-020
 LOCK NUT M5
2
$1.08

Reference Chart
